Description
Description：

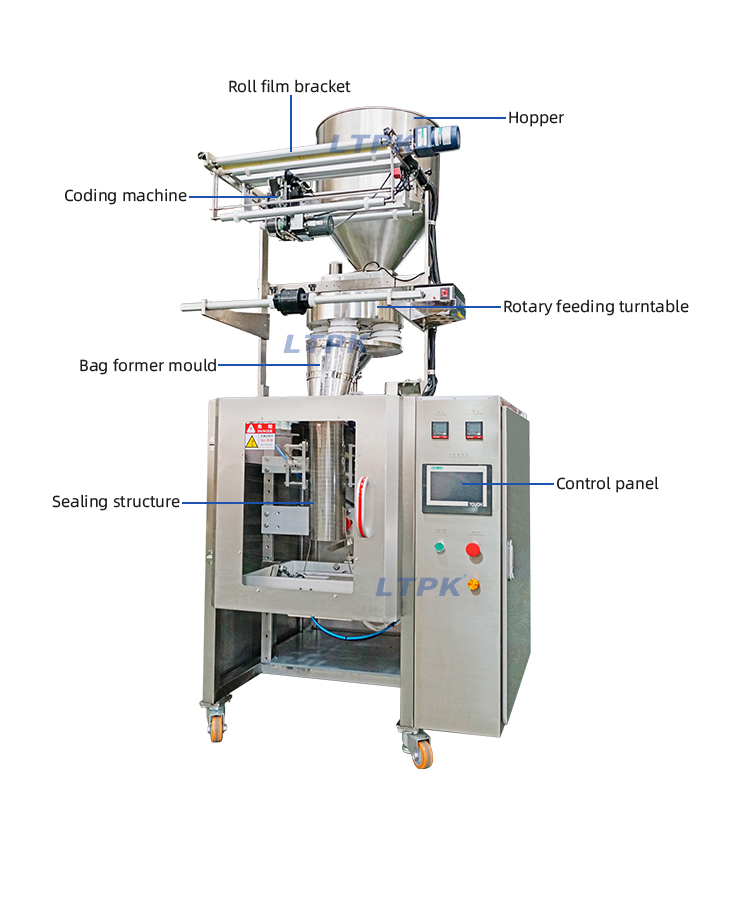

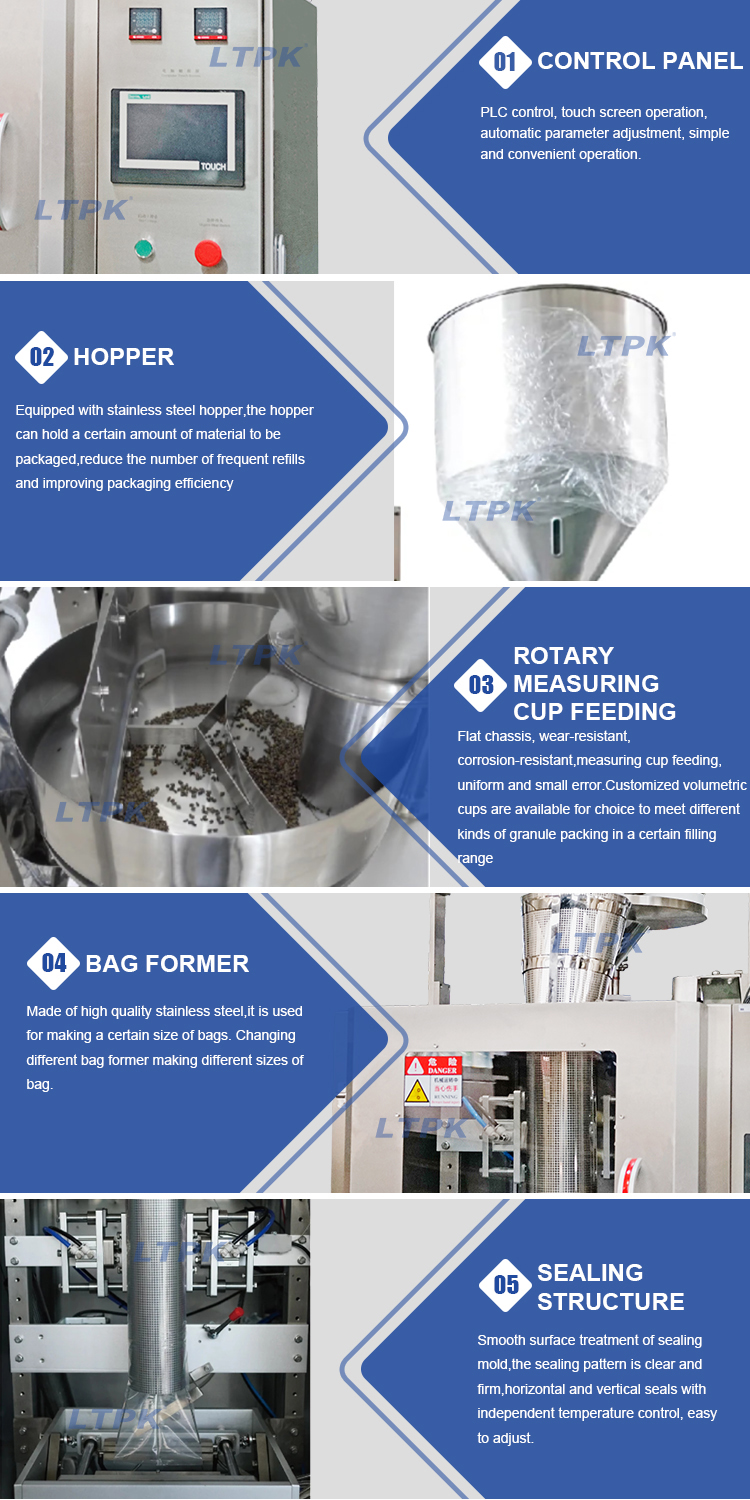

This machine adopts the touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
Application:
The machine is suitable for the food, chemical industry,cosmetics industry of particles of measurement packing,such as nuts,melon seeds,peanuts,seeds,grains,chinese wolfberry, and red dates,etc.
Technical parameters：
|
Model |
LT-YS80IIBK |
|
Voltage |
220V |
|
Power |
3KW |
|

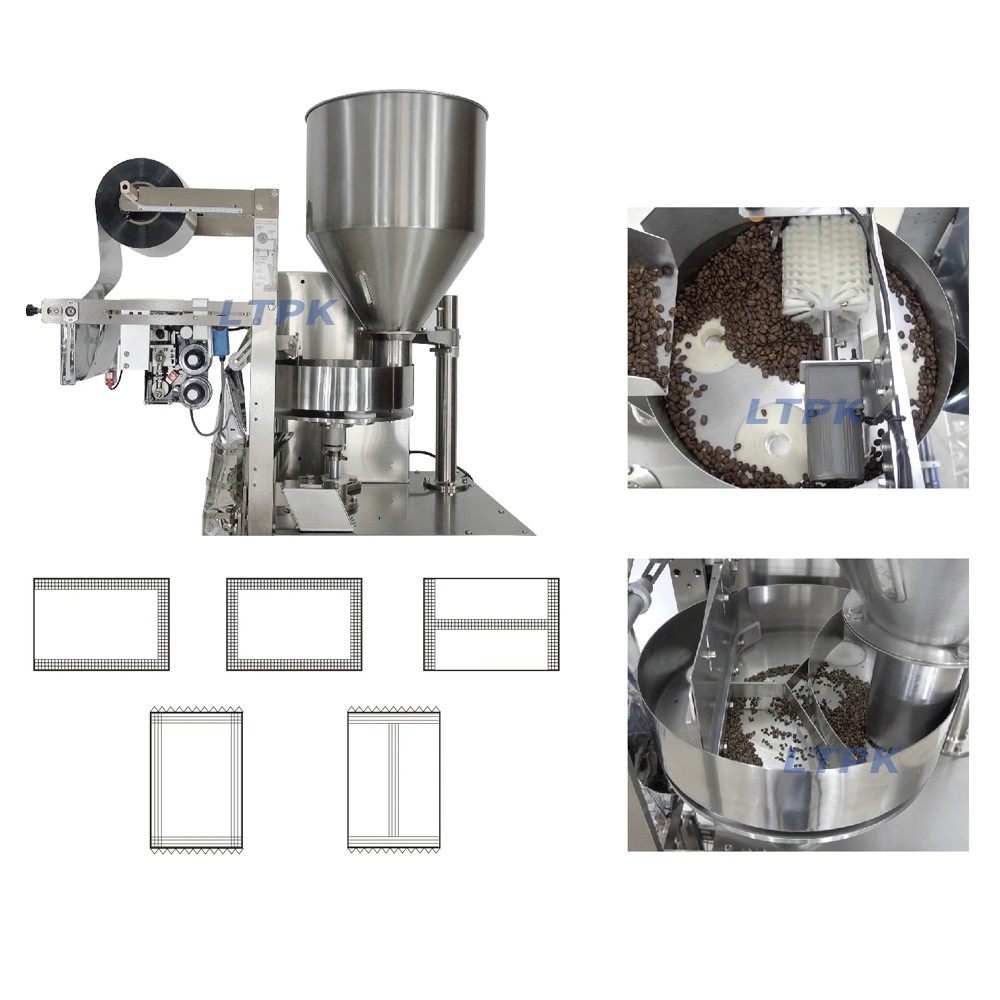

Sealing type |
Three side sealing/back side sealing |
|
Packing speed |
10-30bags/min |
|
Bag length |
60-280mm |
|
Bag width |
50-200mm(Need to replace the bag former) |
|
Filling range |
0.1-1kg |
|
Machine weight |
300kg |
|
Machine size |
970*1100*1900mm |
