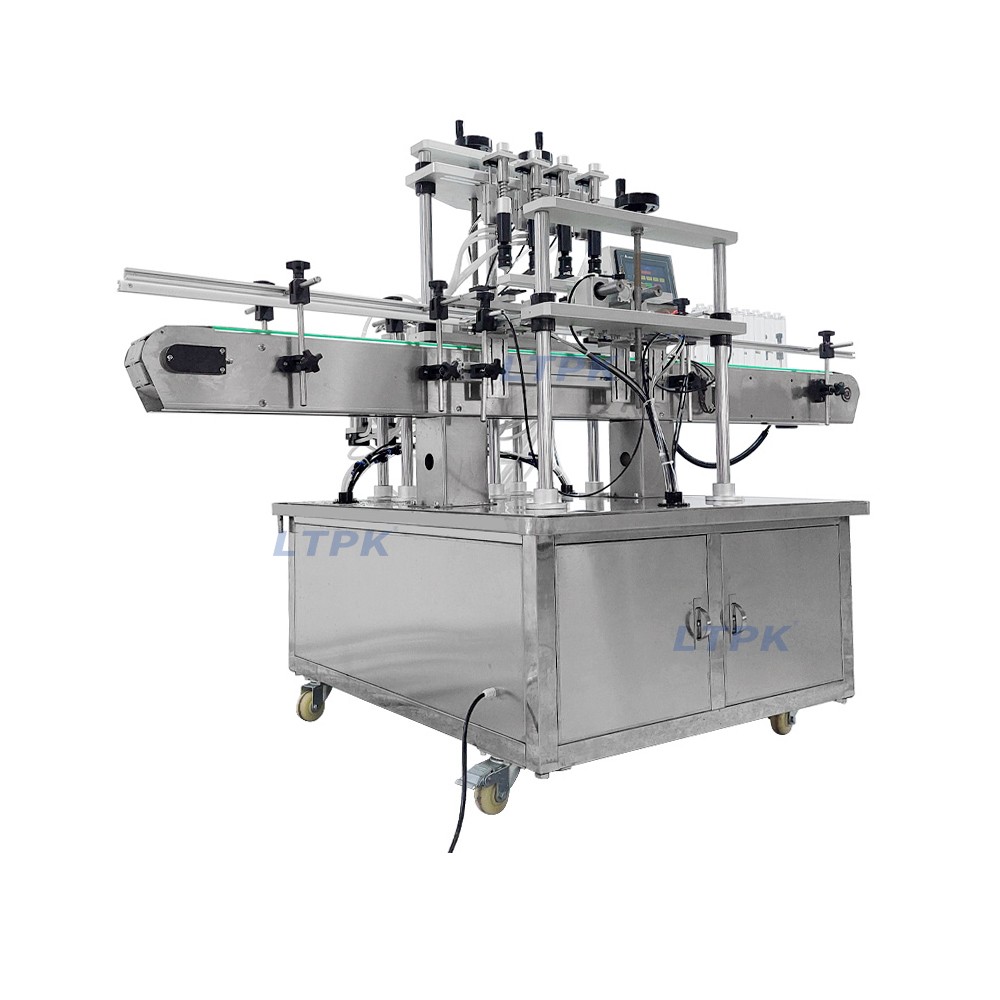

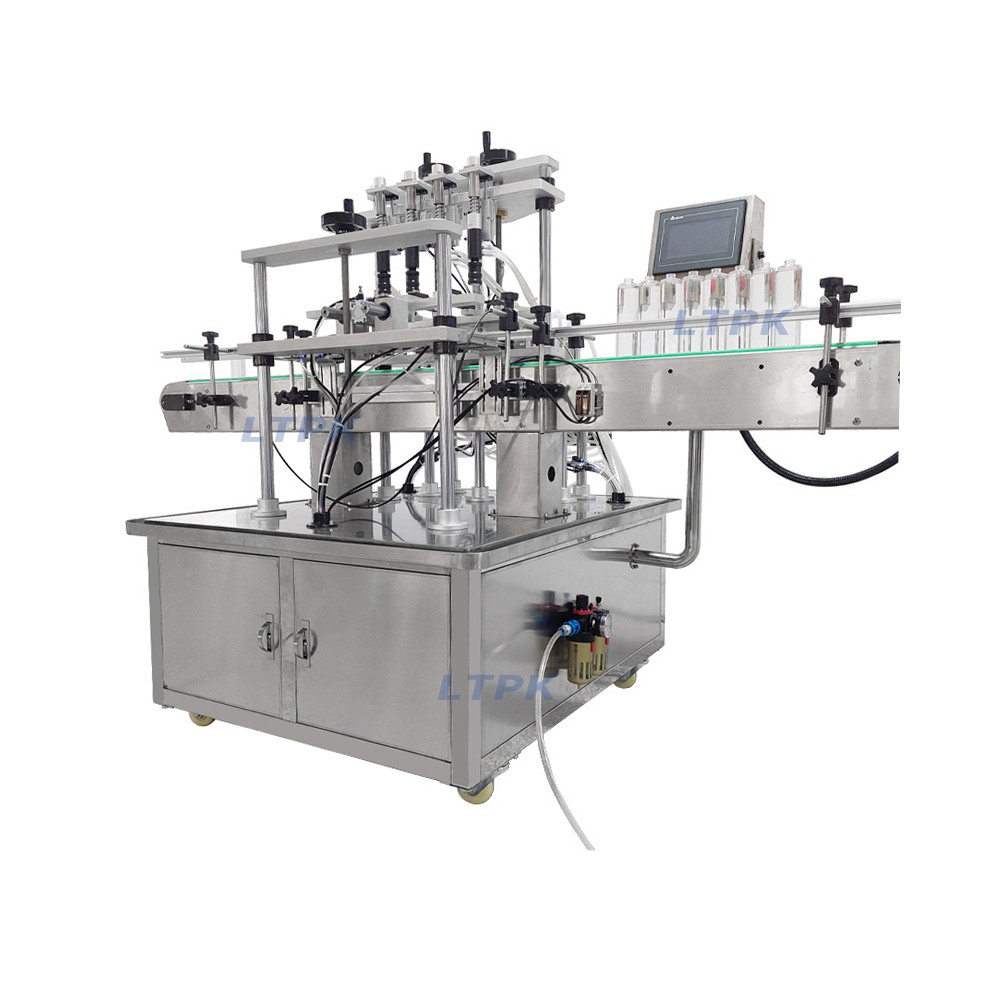

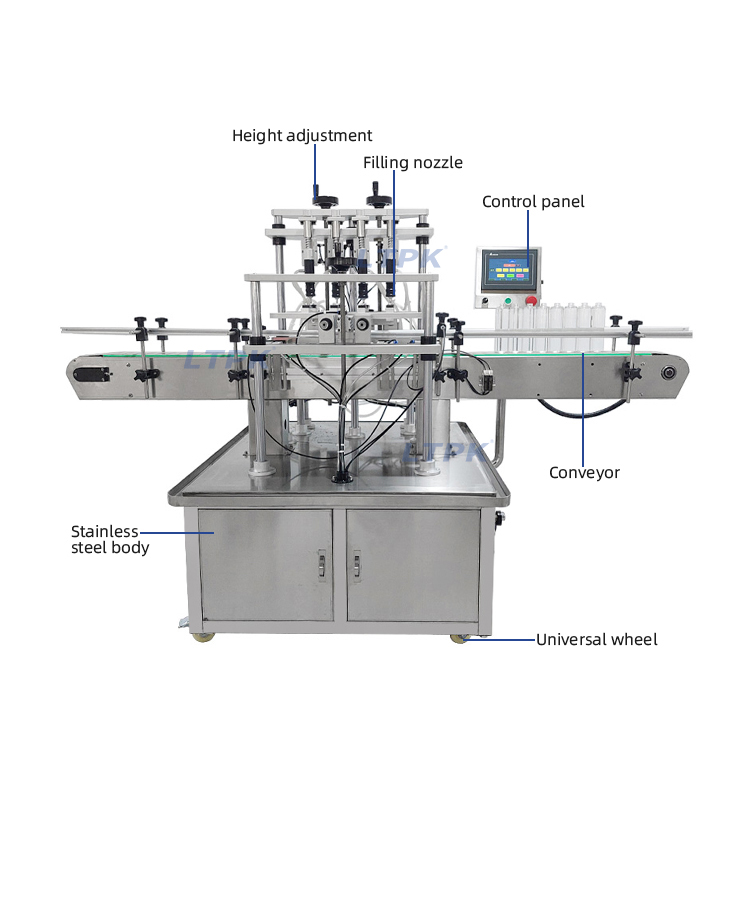

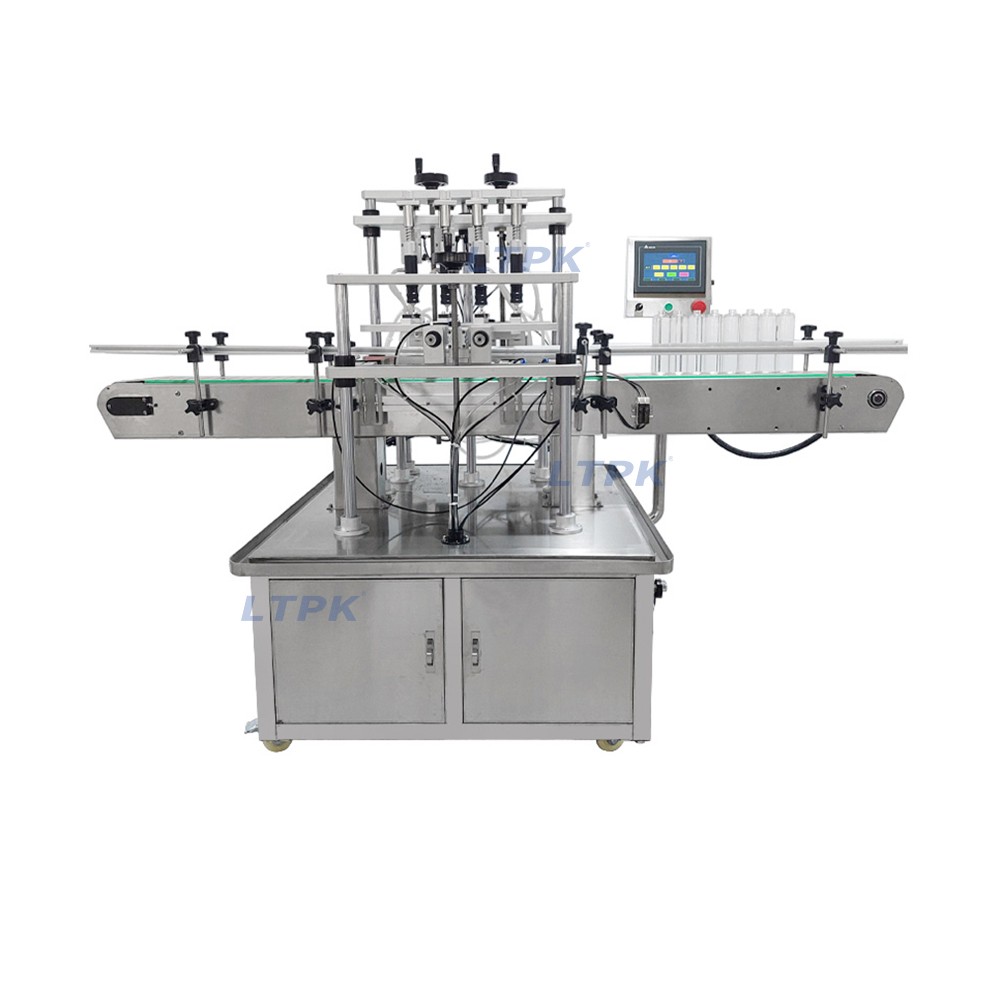

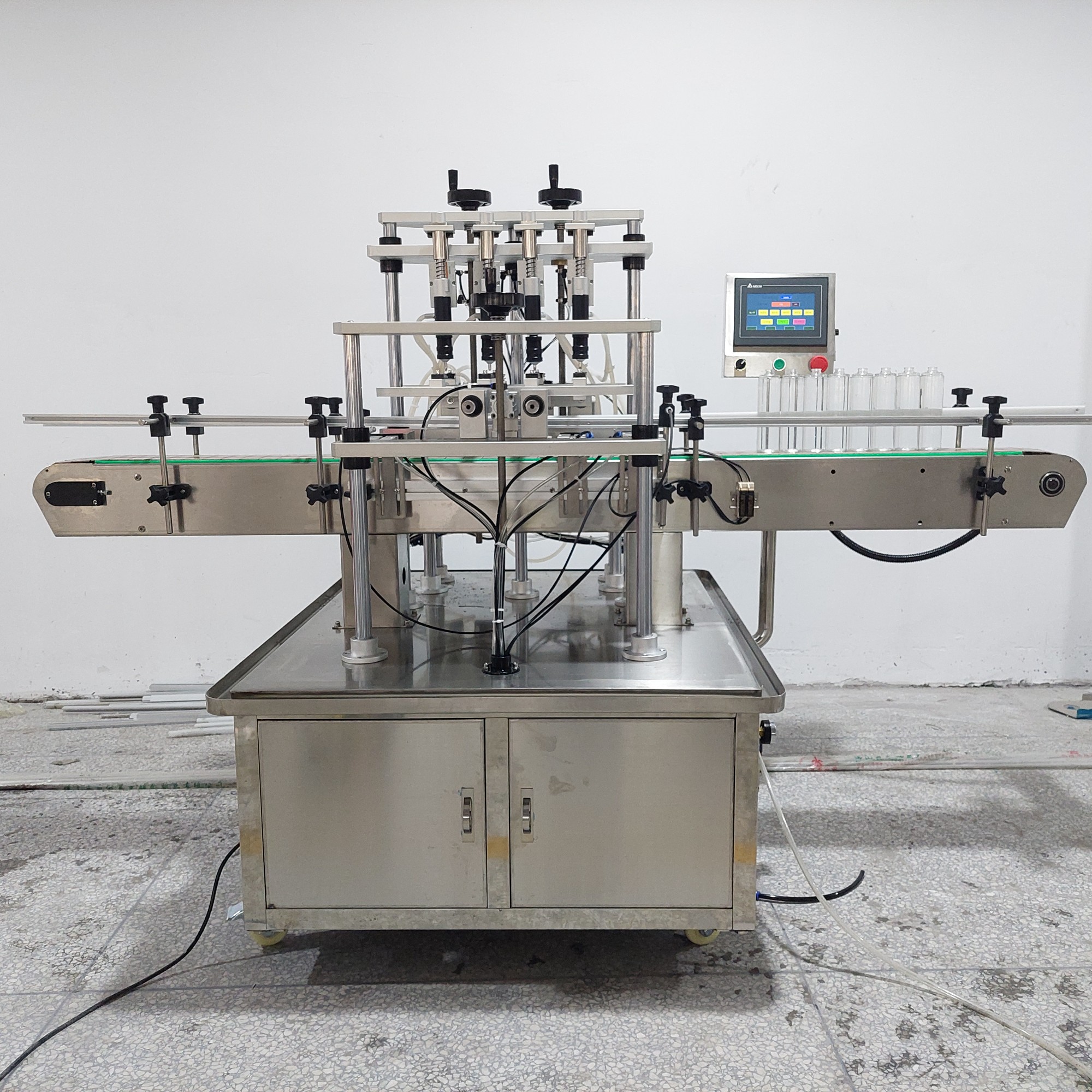

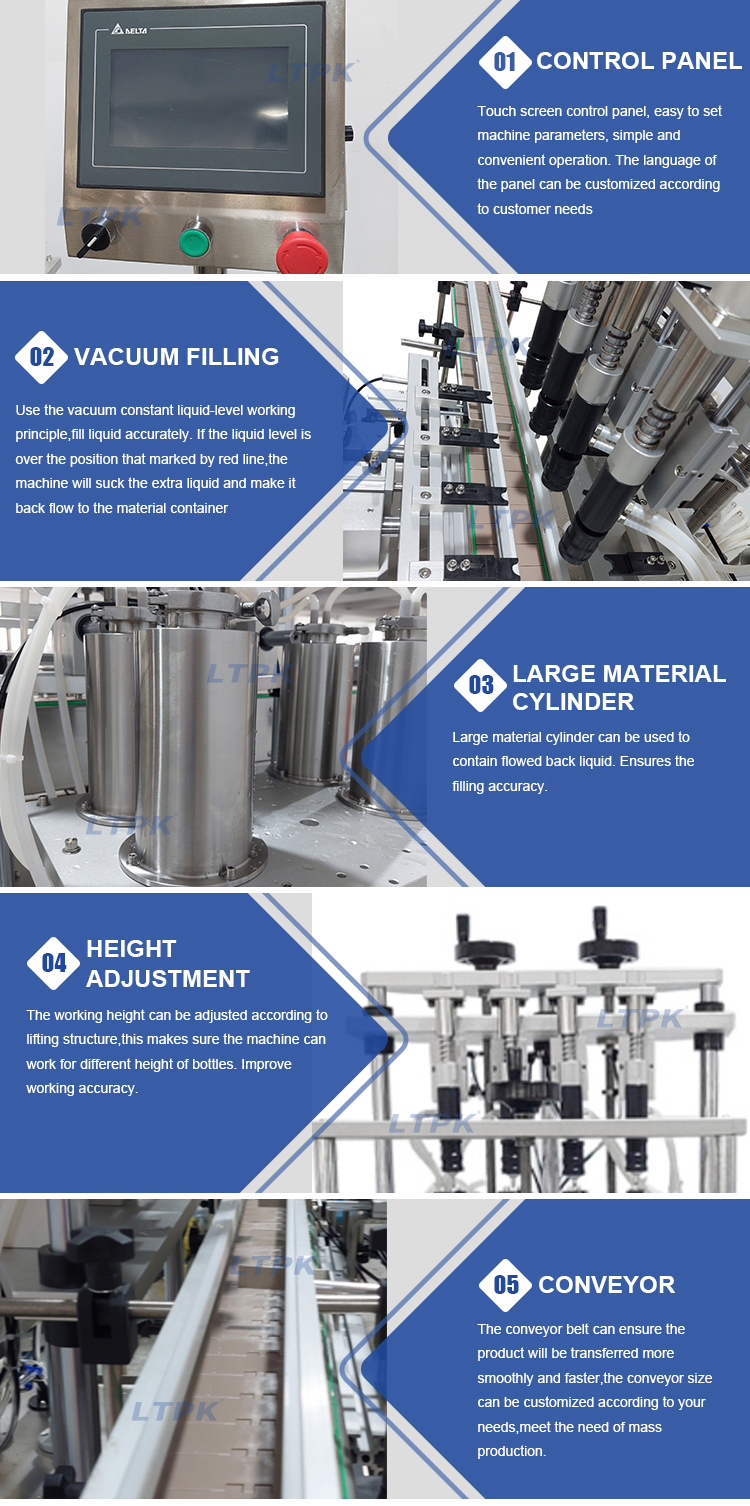

The vacuum perfume filling machine is a negative pressure filling machine, which has the metering performance of constant liquid level mode, the liquid level height can be adjusted, the structure is compact, reasonable, and the operation is simple.The vacuum liquid filling machine can prevent the fragrance of liquid from spreading,this is especially good for perfume filling.
Application:
It is suitable for filling perfume, toner, toilet water, liquid mosquito repellent incense, essential balm, eye drops, beverages, oral liquids and other liquid products
|
Model |
LT-AVPF4 |
|
Filling head |
4 Head |
|
Air pressure |
0.5-0.8MPa |
|
Liquid level accuracy |
±1mm |
|
Viscosity range |
The maximum applicable viscosity is 20Cps (static viscosity) |
|
Filling speed |
20-40bott;es/min |
|
Bottle height |
≤250mm |
|
Bottle opening size |
≤φ4.5mm-φ28mm |
|
Adjustable liquid level (from the bottle mouth) |
＜27mm |
|
Air pumping rate |
5.5L/S |
|
Machine size |
About 1500*1150*1530mm |
|
Machine weight |
About 278kg |
|
Packing size |
About 1660*1310*1670mm |
|
Packing weight |
About 339kg |
