Description
Description

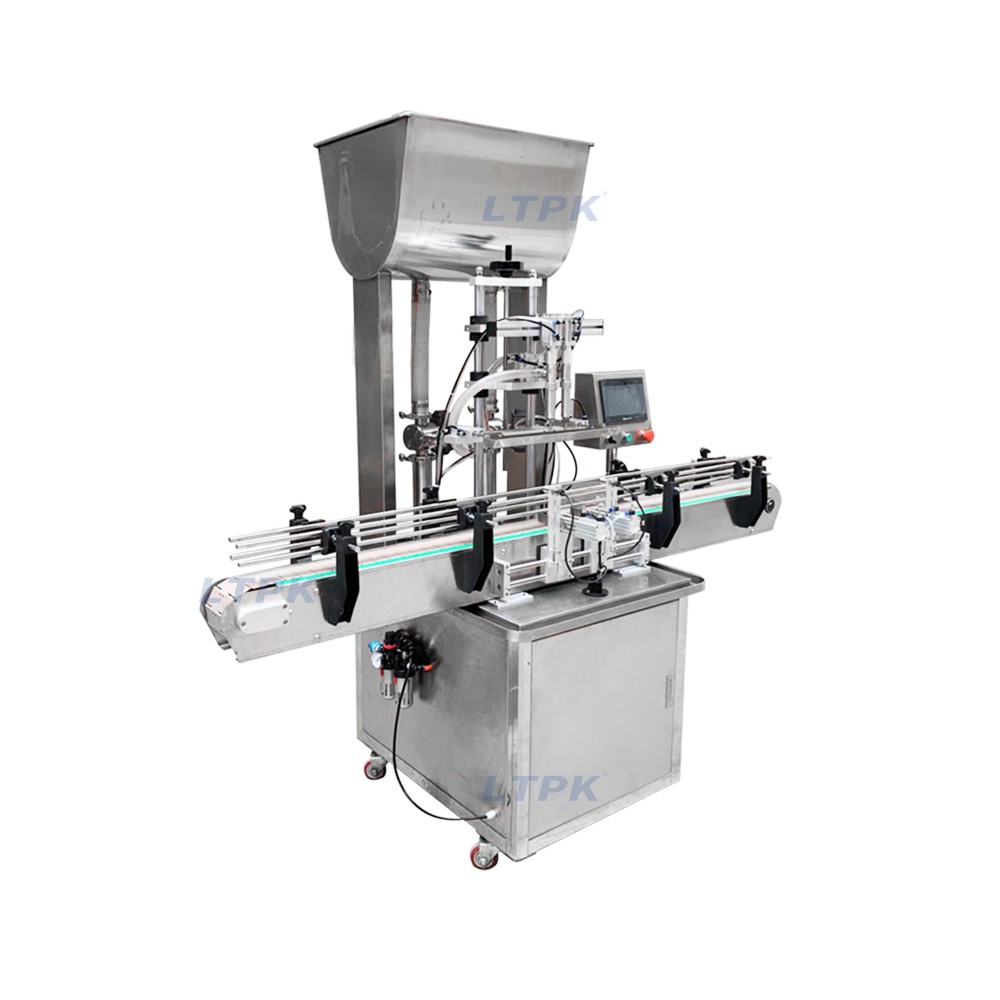

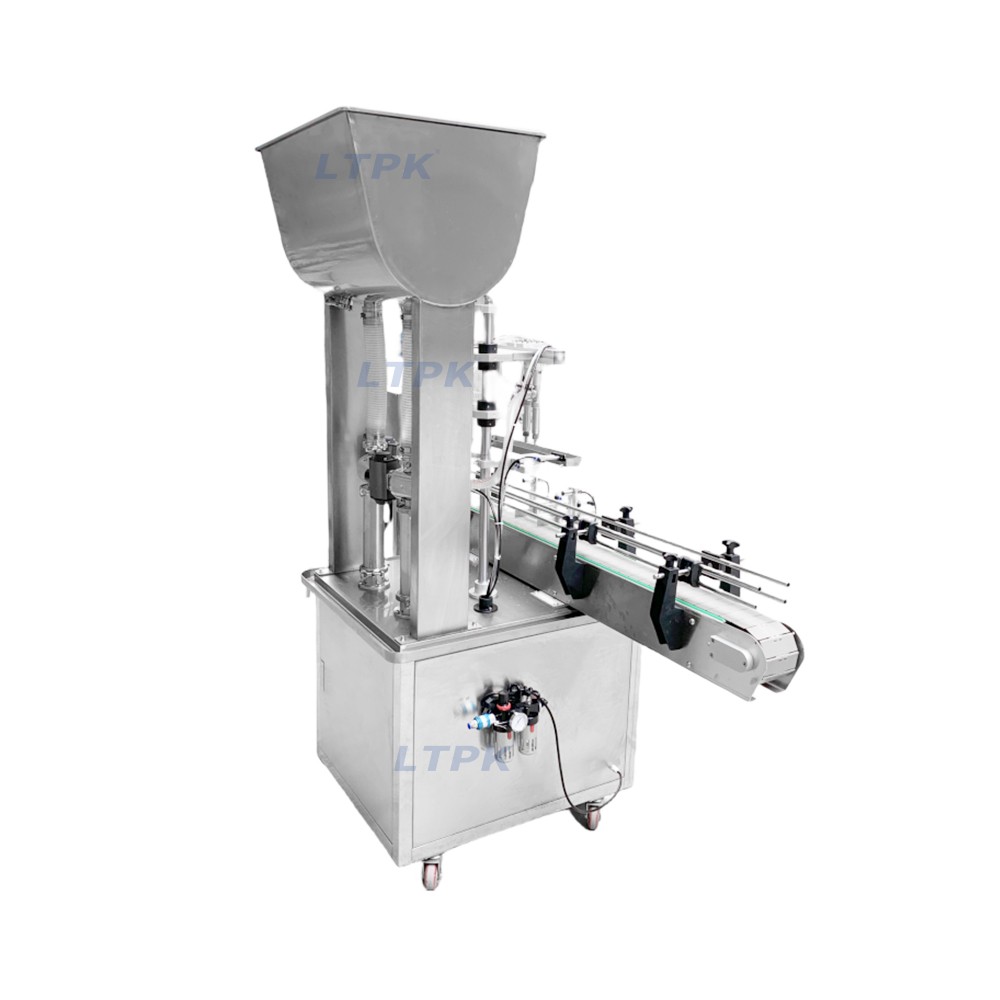

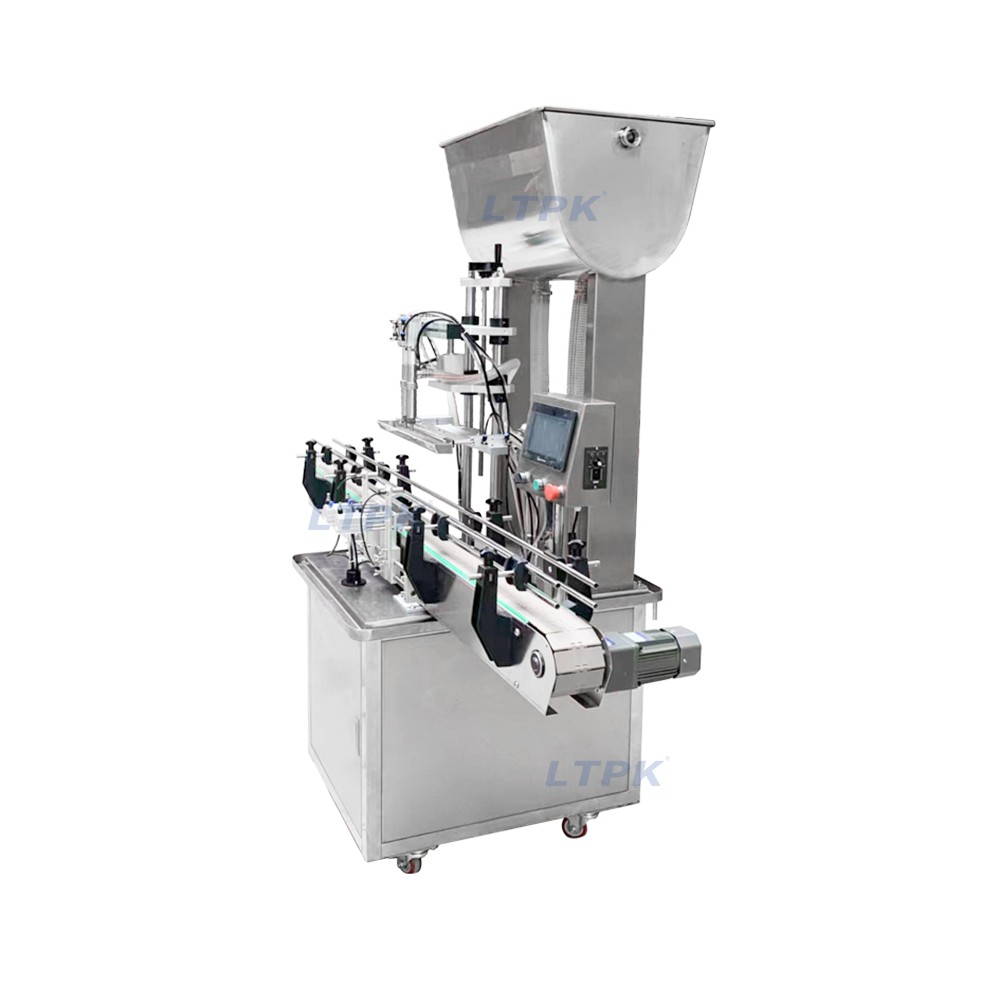

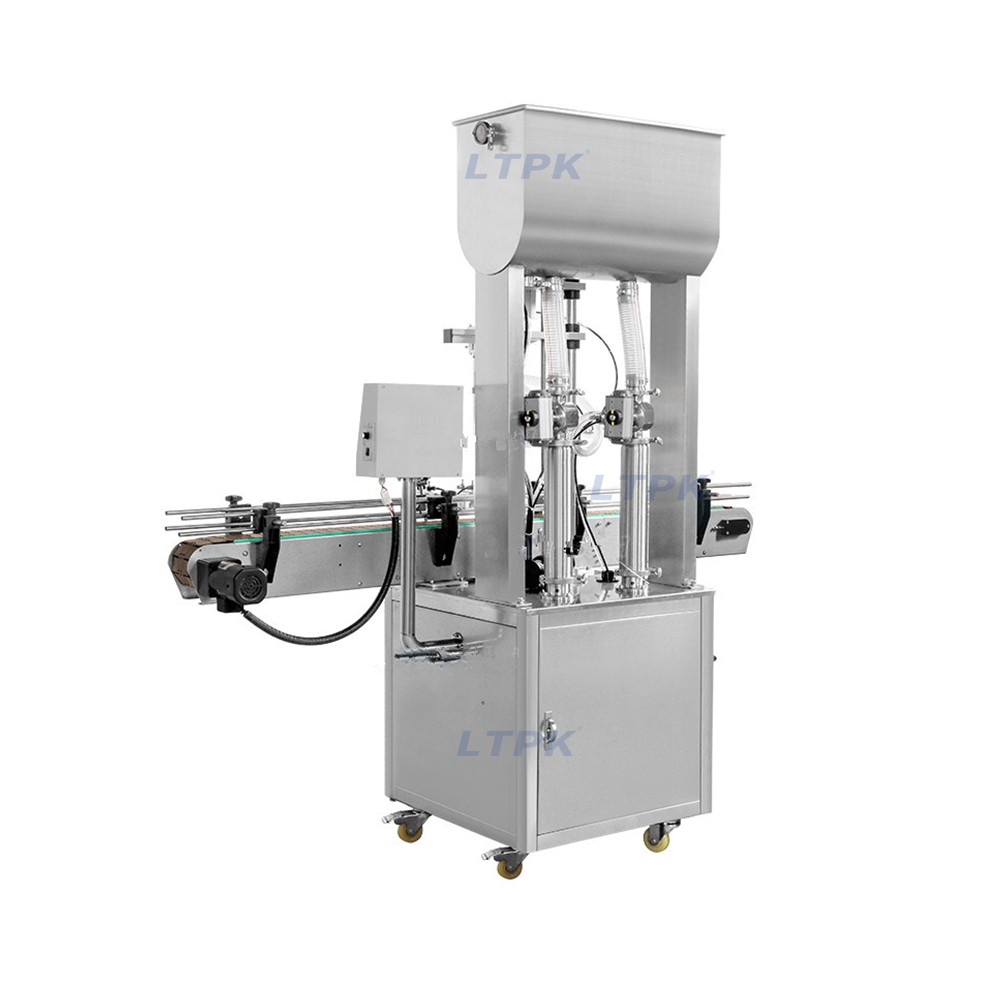

LT-QZDG2 automatic paste filling machine is a machine produced by our company. It has compact design, beautiful appearance, wide application field, and it worked with imported parts, so that the the machine has a good performance.
Machine also can be designed with mixing and heating function,and it can be feed filling material automatically.Machine with heating is good for filling pepper sauce,chocolate etc.Each nozzles can be controlled separately.It is widely used in food,beverage,daily chemical industries.
Application：
It is widely used in the filling of various semi-fluids, pastes, viscous bodies, sauces and various granule-containing materials, such as pulp-containing beverages, honey, jams, ketchup, chili sauce, bean paste, shrimp paste, apple sauce, salad dressing, etc.
|
Model |
LT-QZDG2 |
LT-QZDG4 |
LT-QZDG6 |
LT-QZDG8 |
|
Voltage |
110/220V 50-60HZ 800W |
|||
|
Filling Range |
5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml |
|||
|
Working Speed (base on water) |
10-40bottles/min |
20-50bottles/min |
30-70bottles/min |
40-80bottles/min |
|
Filling Accuracy |
≤+1% |
|||
|
Conveyor Size |
About 1990*100mm(L*W) |
|||
|
Size of filling nozzle |
φ10mm |
|||
|
Size of air compressor connector |
φ10mm |
|||
|
Machine size |
About 1990*950*1970mm（4 Heads） |
|||
|
Package weight |
About 280kg |
About 390kg |
About 475kg |
About 600kg |
|
Package size |
115*100*213cm |
160*125*215cm |
215*125*215cm |
240*125*215cm |
