Description
Description：

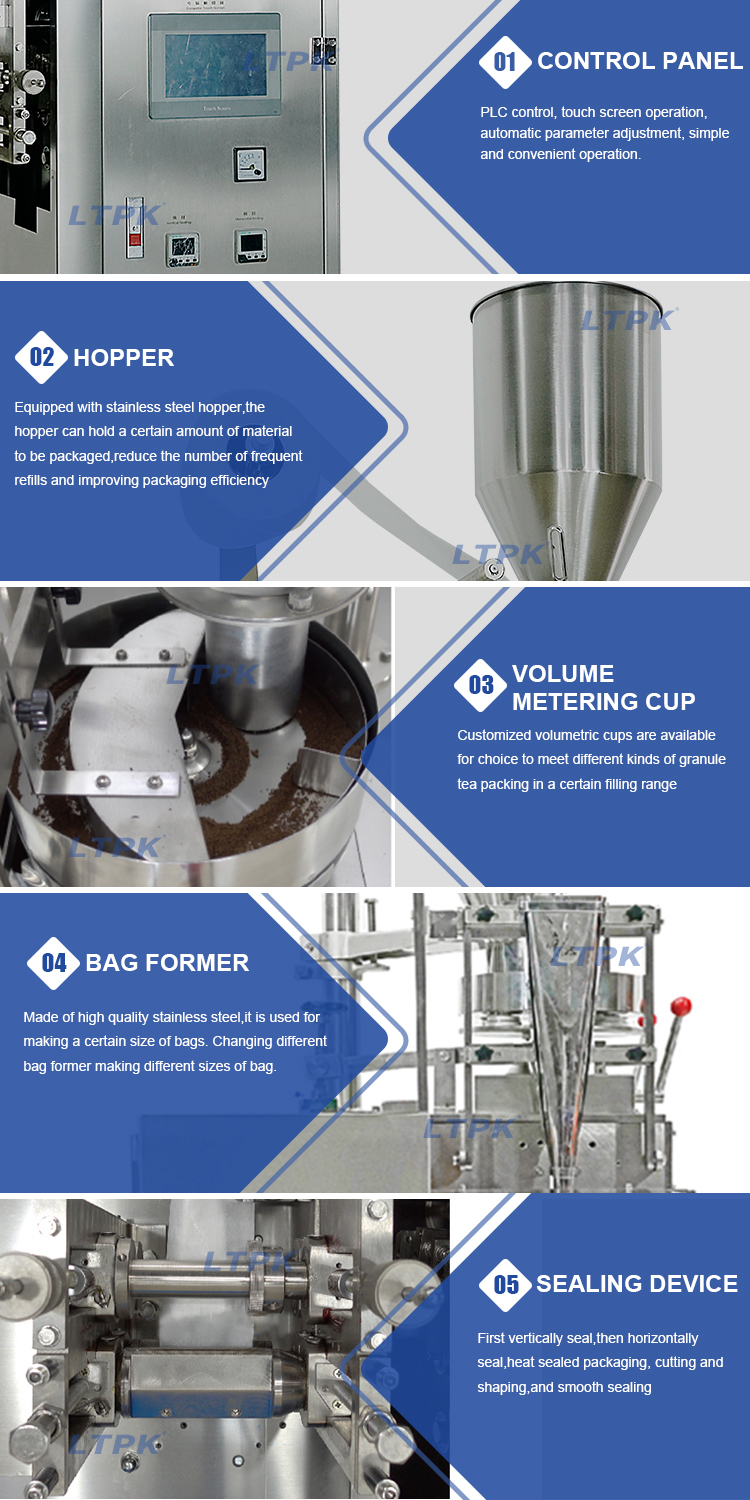

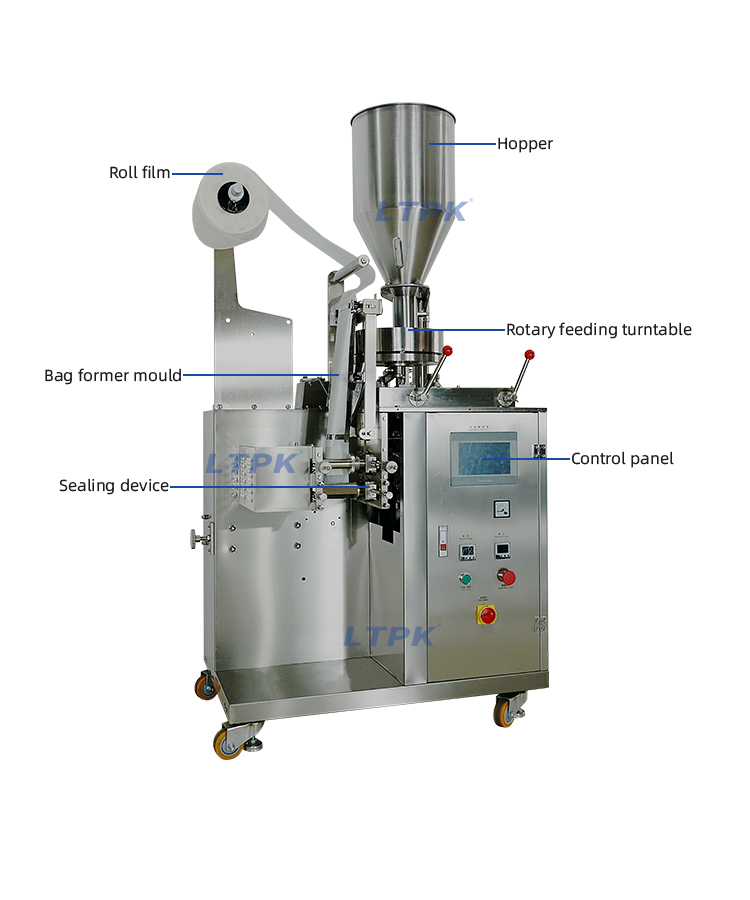

The machine adopts PLC control, touch screen operation, automatic parameter adjustment, and simple and convenient operation.Tea bag with the thread,it can automatically complete functions such as bag making,measuring, feeding, sealing, cutting, counting, etc.
Application:
It's suitable for packing of steeping products automatically, such as: broken tea, scented tea, coffee and plant.
Technical parameters：
|
Model |
LT-YS10 |
|
Total power |
AC220V/ 50Hz /1.6KW |
|
Measuring scope |
1-10g(0.6-26ml) |
|
Bag length |
50-80mm |
|
Bag width |
45-80mm |
|
Packing speed |
30-60bags/min |
|
Sealing type |
Three sides sealing |
|
Size |
900*741*1738mm |
|
Weight |
350kg |
