Description
Description：

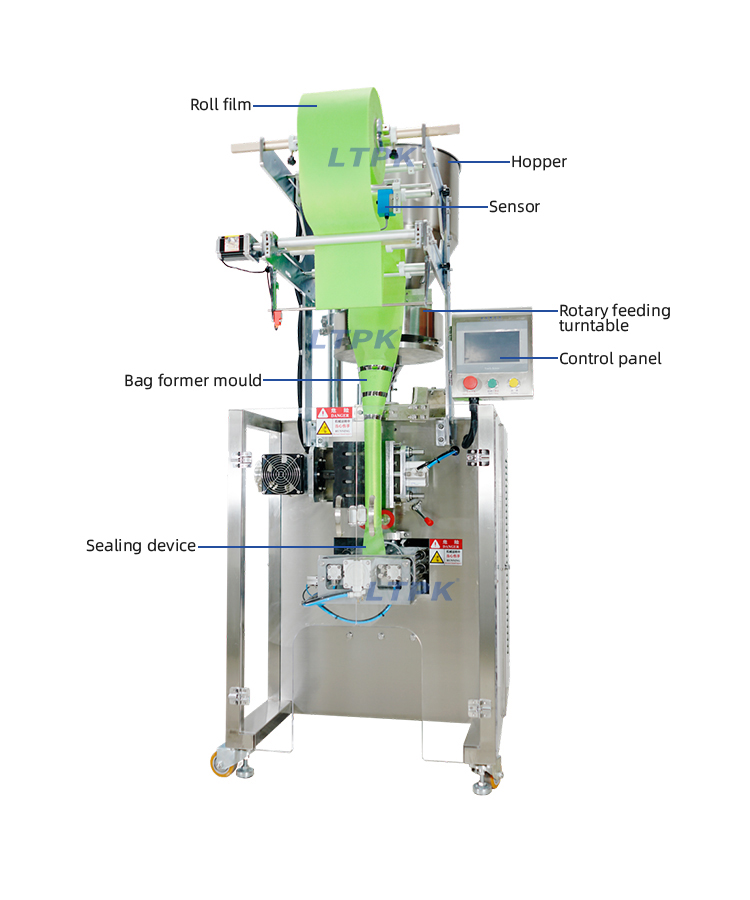

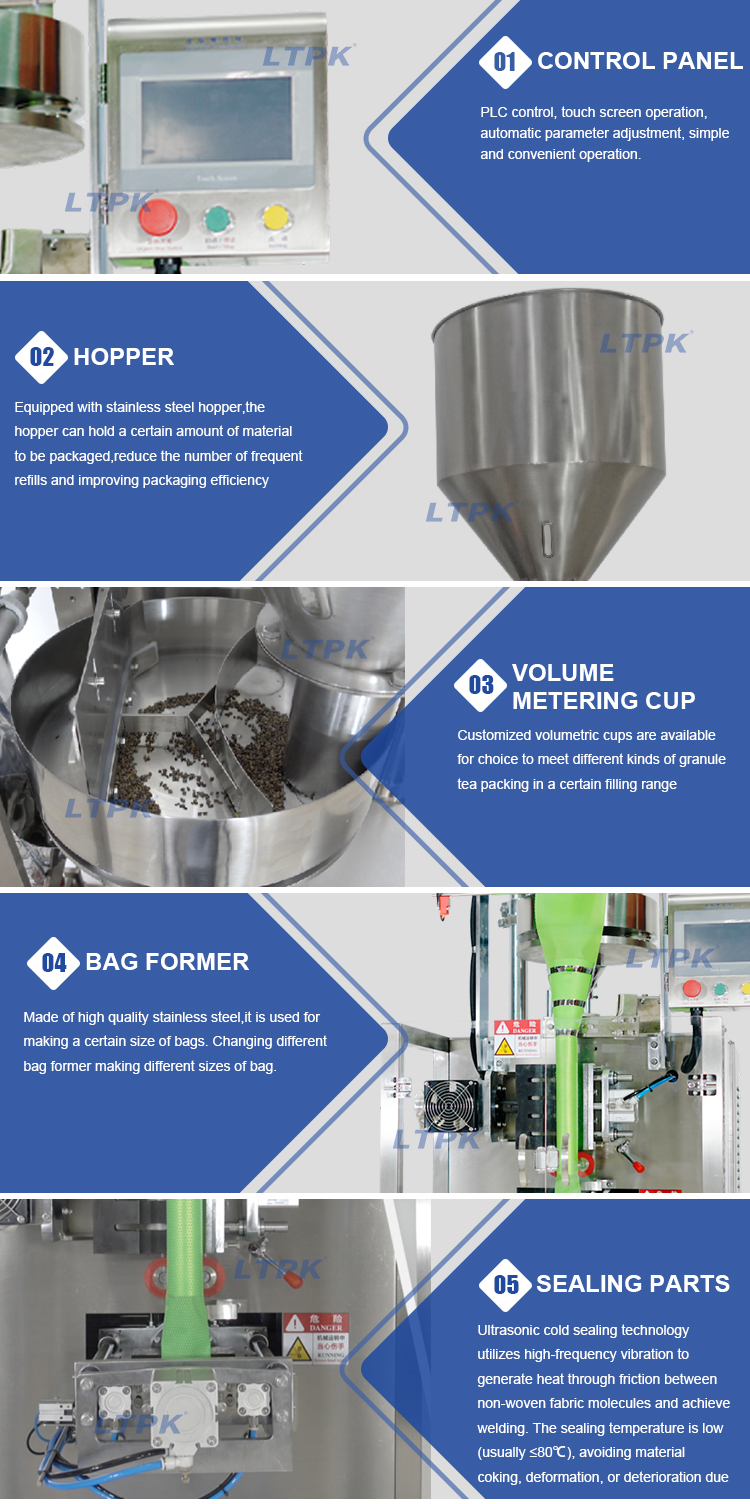

The machine adopts the touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
Application:
Suitable for automatic packaging of loose, non-sticky, fine granular or powdered materials in food and chemical products, such as spice packs, tea granules, activated carbon, bamboo charcoal, desiccants, deodorizing bags, foot soaking powder,etc.
Technical parameters：
|
Model |
LT-YS62 |
|
Total power |
AC220V/ 50Hz /1.4KW |
|
Measuring scope |
1-100g |
|
Bag length |
30-170mm |
|
Bag width |
30-130mm |
|
Packing speed |
10-60bags/min |
|
Sealing type |
Three sides sealing/Back side sealing |
|
Gas source |
≥0.6m³/min |
|
Size |
850*1100*1900mm |
|
Weight |
400kg |
