Description
Description：

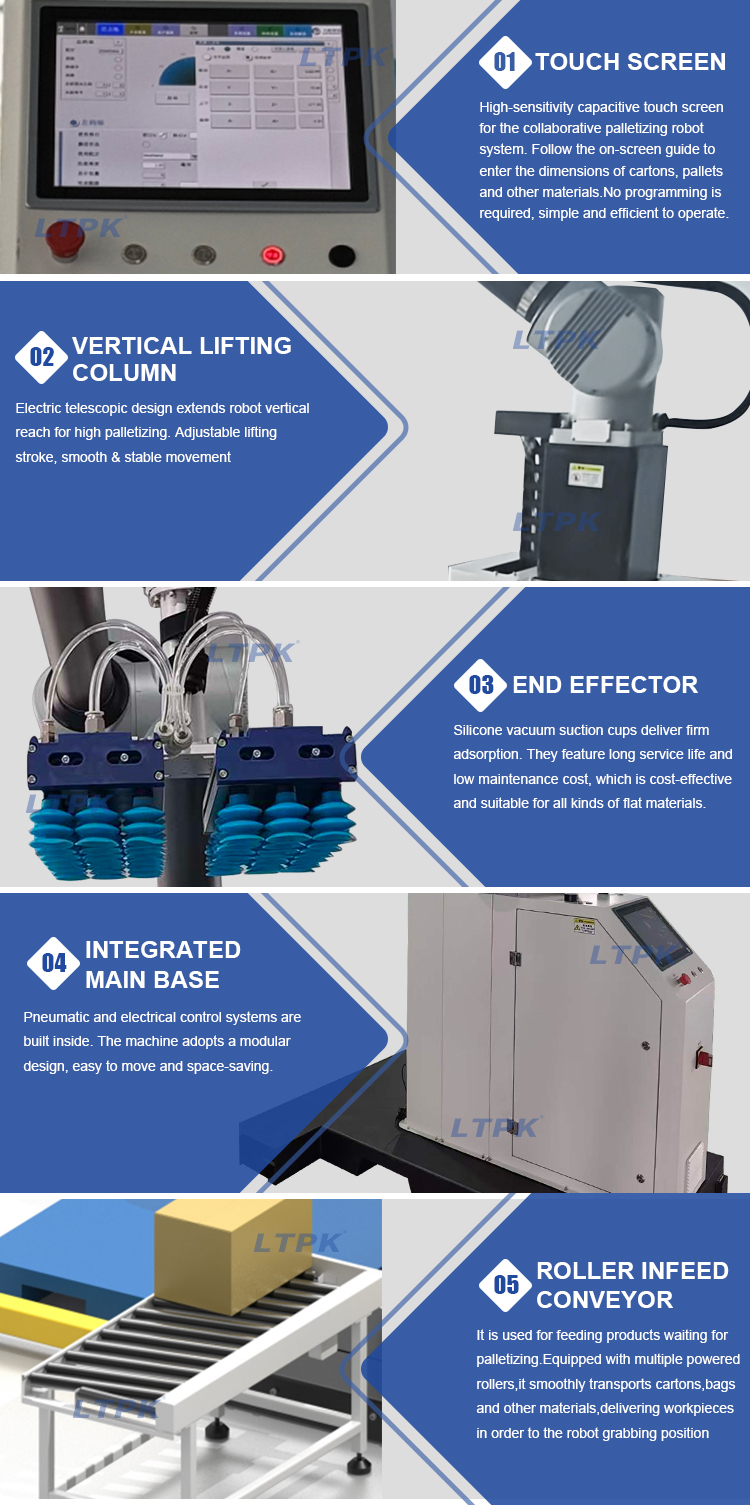

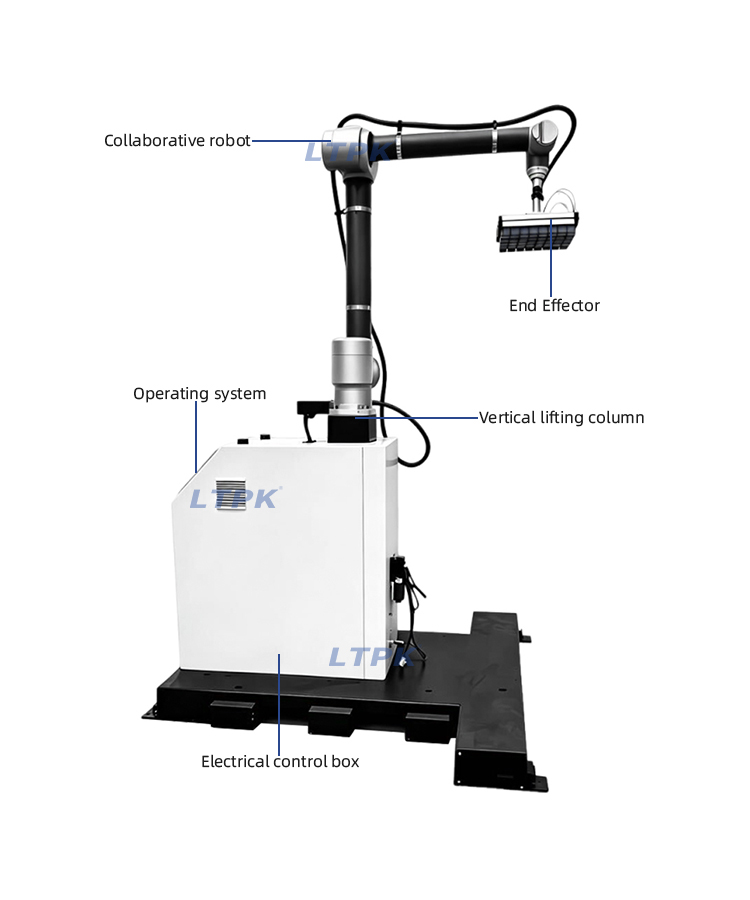

Collaborative robot palletizer works closely with human operators to boost production efficiency and flexibly adapt to different palletizing tasks.It features compact and nice appearance with easy and convenient adjustment.Equipped with touch screen control system for intelligent operation management,simple to learn and operate.It greatly cuts labor requirements and reduces work intensity.The machine can run as a standalone unit,or be integrated with automatic pallet dispenser and pallet conveyor to build a fully automatic palletizing system.
Application：

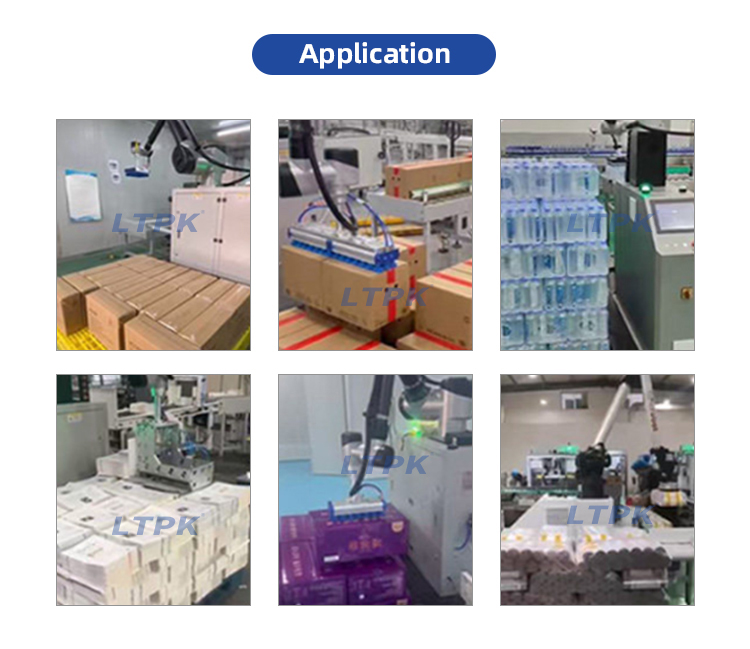

Widely used in palletizing processes in multiple industries, such as cardboard boxes, pharmaceuticals, daily necessities, food, beverages, cosmetics, metal products, etc.
|
Model |
LT-MD30S |
LT-MD50S |
|
Robot load |
30kg |
50kg |
|
Working radius |
1900mm |
1700mm |
|
Palletizing height |
Max:2600mm |
Max:2100mm |
|
Palletizing speed |
8-10pcs/min |
<8pcs/min |
|
Repeat positioning accuracy |
±0.04mm |
±0.04mm |
|
Communication protocol |
TCP/IP |
TCP/IP |
|
IP rating |
IP54 |
IP54 |
|
Temperature range |
0-55°C |
0-55°C |
|
Max power consumption |
3.5KW |
4KW |
|
Electric box power supply |
single-phase 220V/50Hz |
single-phase 220V/50Hz |
|
Machine weight |
≈350kg |
≈500kg |
|
Footprint (Machine Body) |
1505*1716mm |
1505*1716mm |
|
Operating footprint |
3550*1716mm |
3250*1716mm |
|
Min workshop ceiling height |
3.1m |
3.2m |
