Description
Description

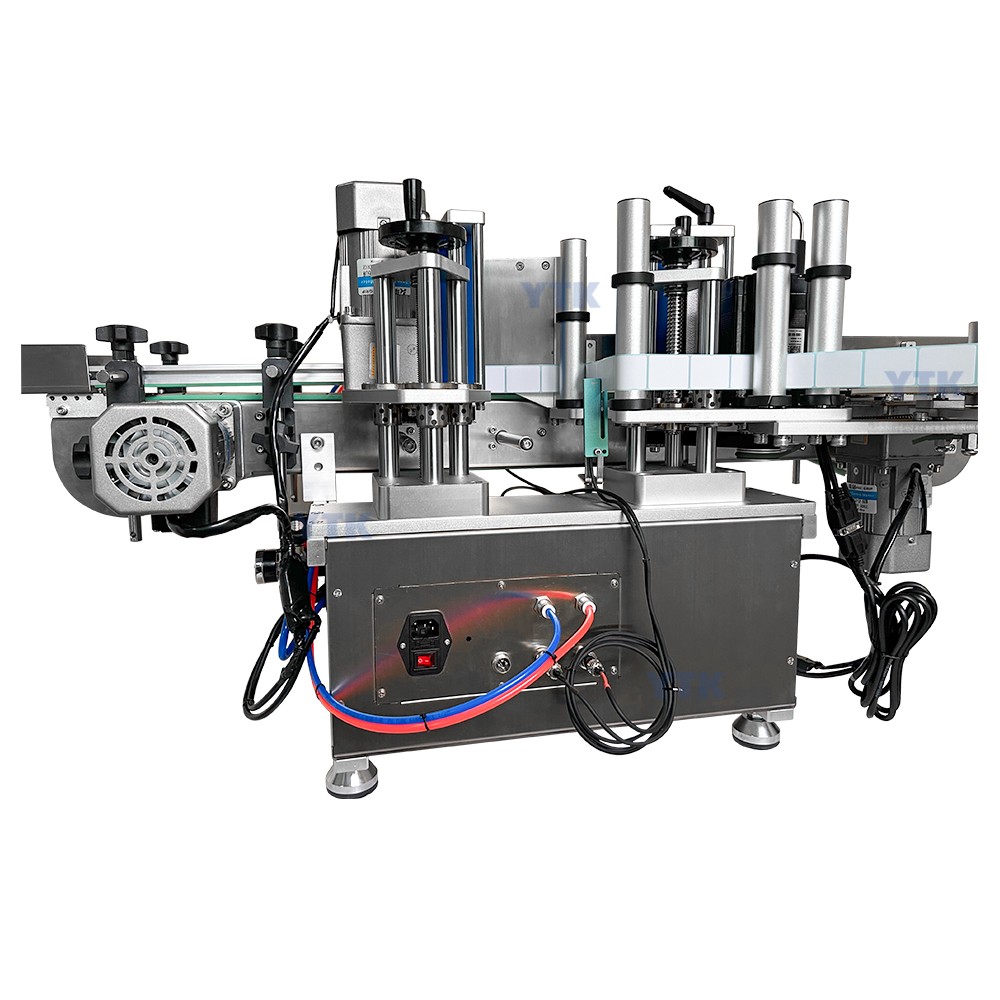

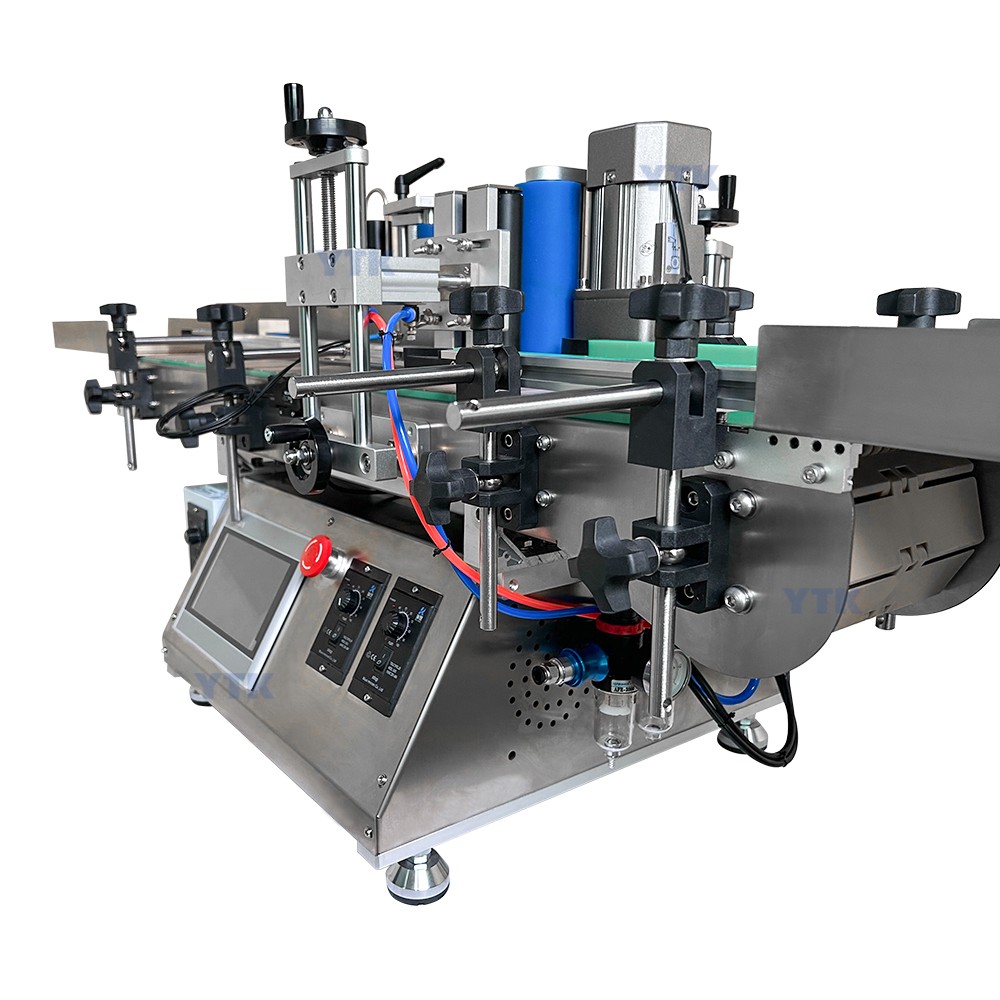

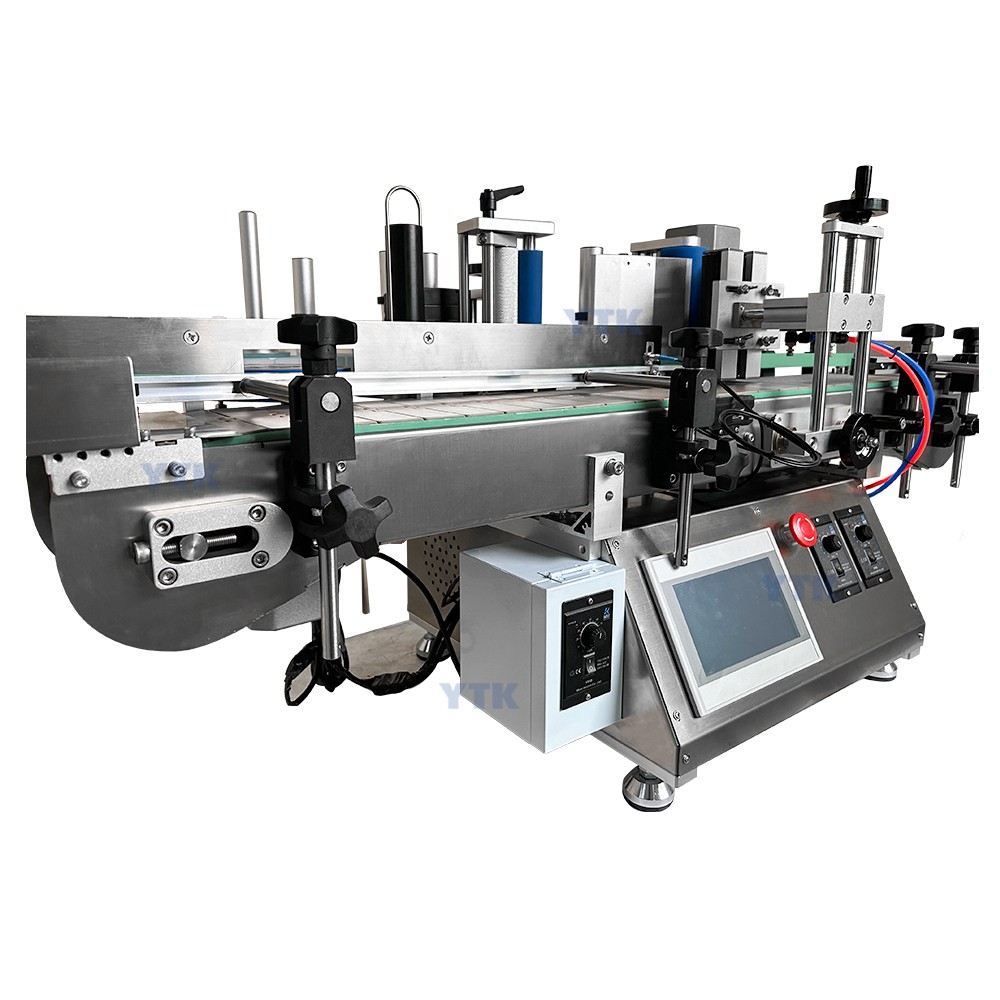

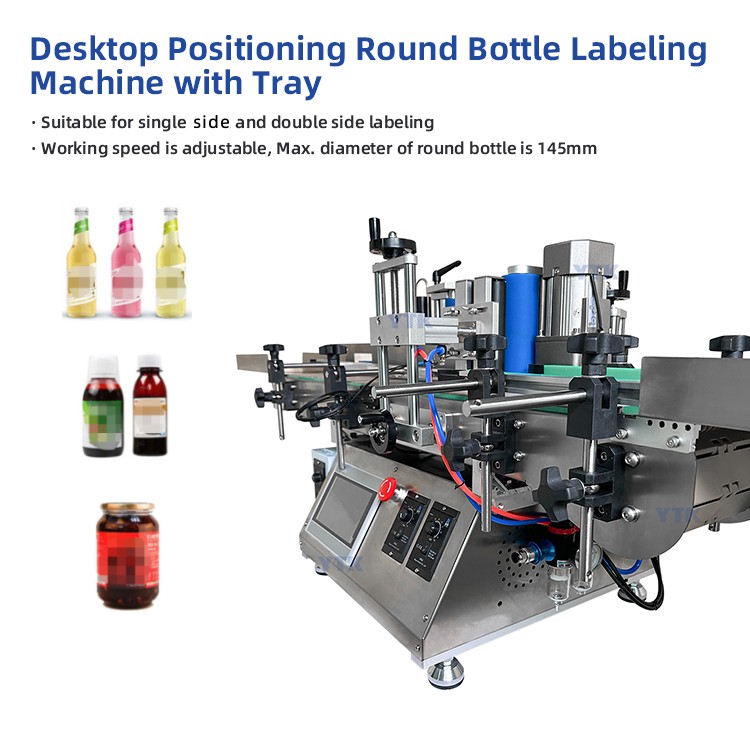

This automatic bottle labeling machine is with a conveyor and tray, it has similar functions like the full automatic labeling machine. This round bottle labeling machine can be used for double side labeling. The desktop type labeling machine can save working space. It is widely used to label round bottles like wine bottles, toner bottles, food cans etc.

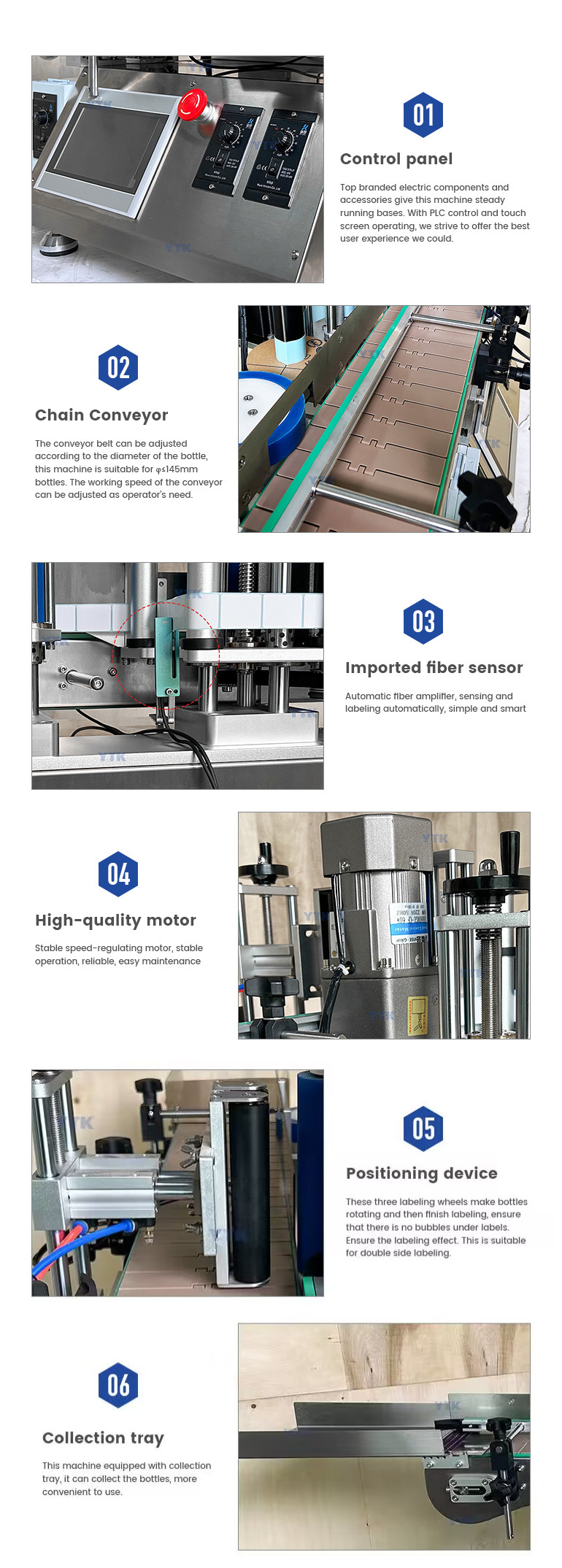

Feature:

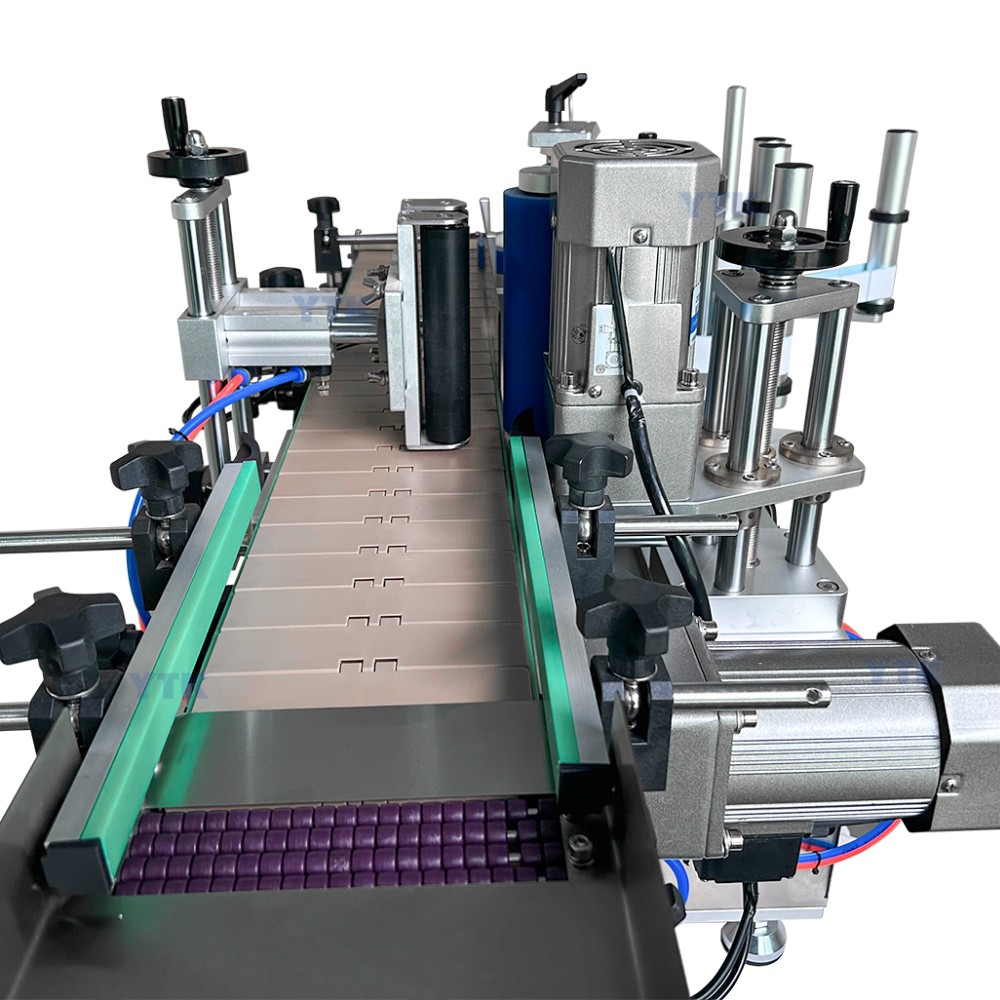

1. Upgrade the conveyor belt to a chain plate type.
2. The stepper motor that has been marked has been upgraded to closed-loop and the brand has been upgraded to leadshine, which can achieve faster speed and higher accuracy.
3. The power supply of the stepper motor has been changed from AC power supply to DC power supply, which is more stable.
4. The labeling mechanism of the labeling platform has undergone a small and user-friendly upgrade, making it relatively more convenient to wear labels.
Product parameters
|
Model |
LT-150T |
|
Voltage |
220/110V 50/60HZ |
|
Power |
400W |
|
Labeling accuracy |
±1mm (excluding product and label errors) |
|
Labeling speed |
About 20~40 pieces/minute |
|
Bottle diameter |
20 ~ 145mm |
|
Bottle height |
25 ~ 350mm |
|
Applicable label size |
length 25~200mm / width 15 ~ 150mm |
|
Min. label roll inner diameter |
75mm |
|
Max. label roll out diameter |
250mm |
|
Package size |
About 635*1220*775mm |
|
Package weight |
About 136kg |
