Description：

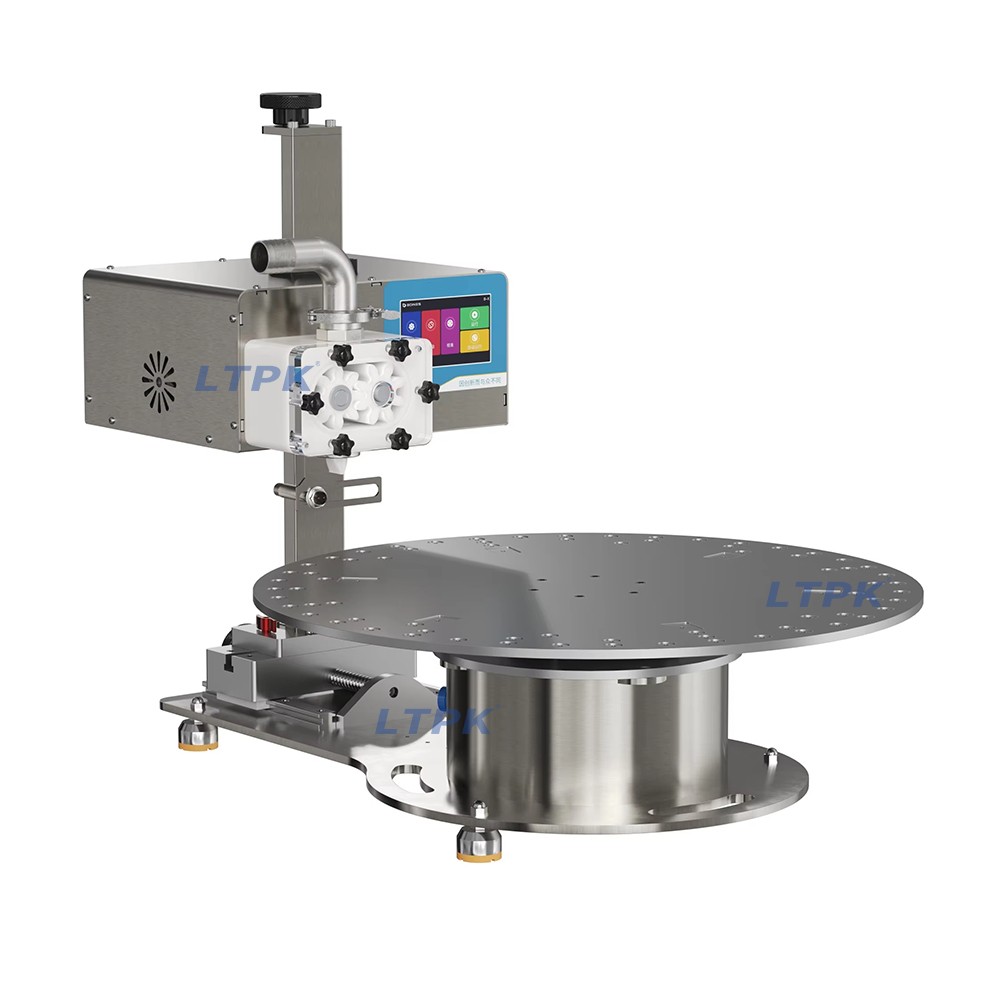

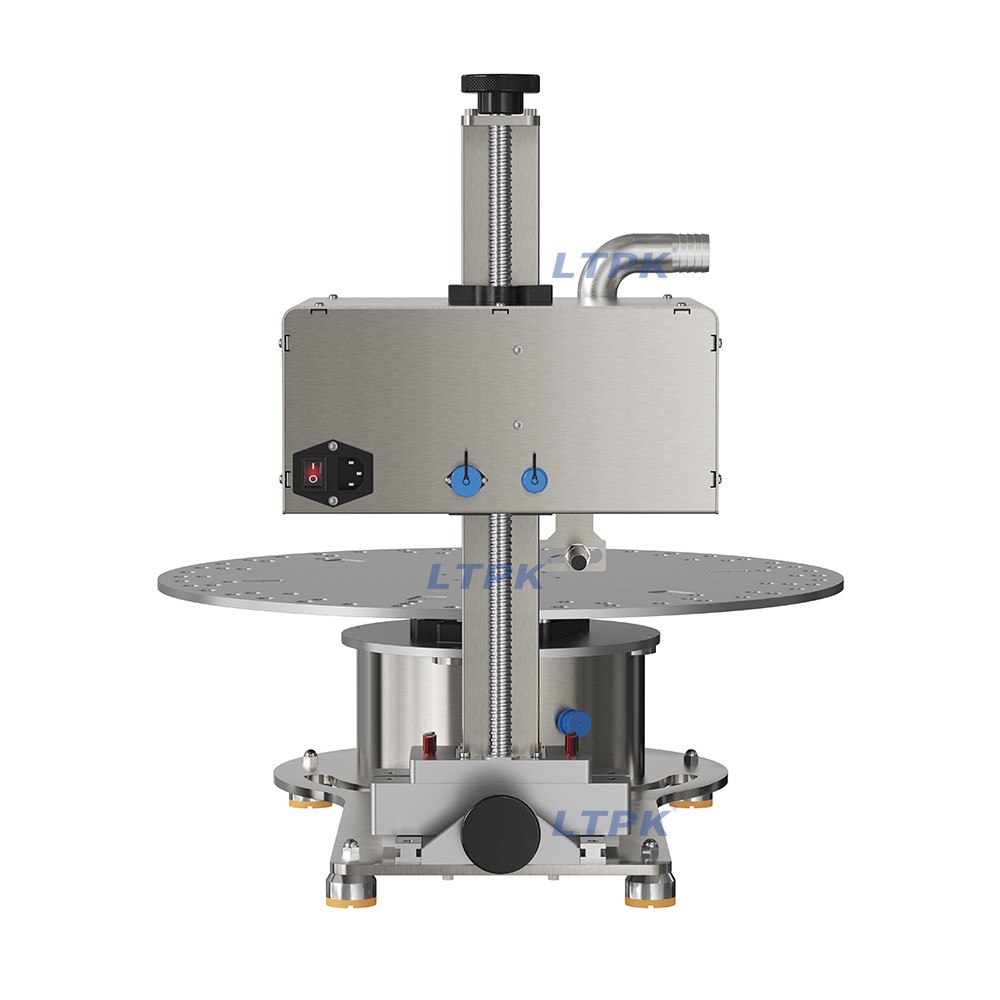

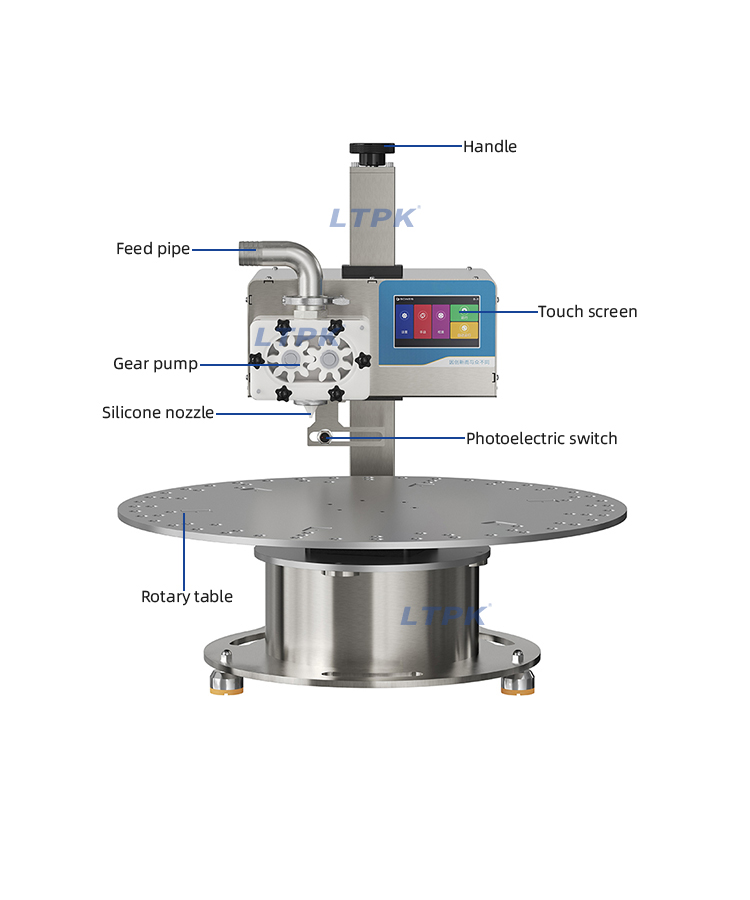

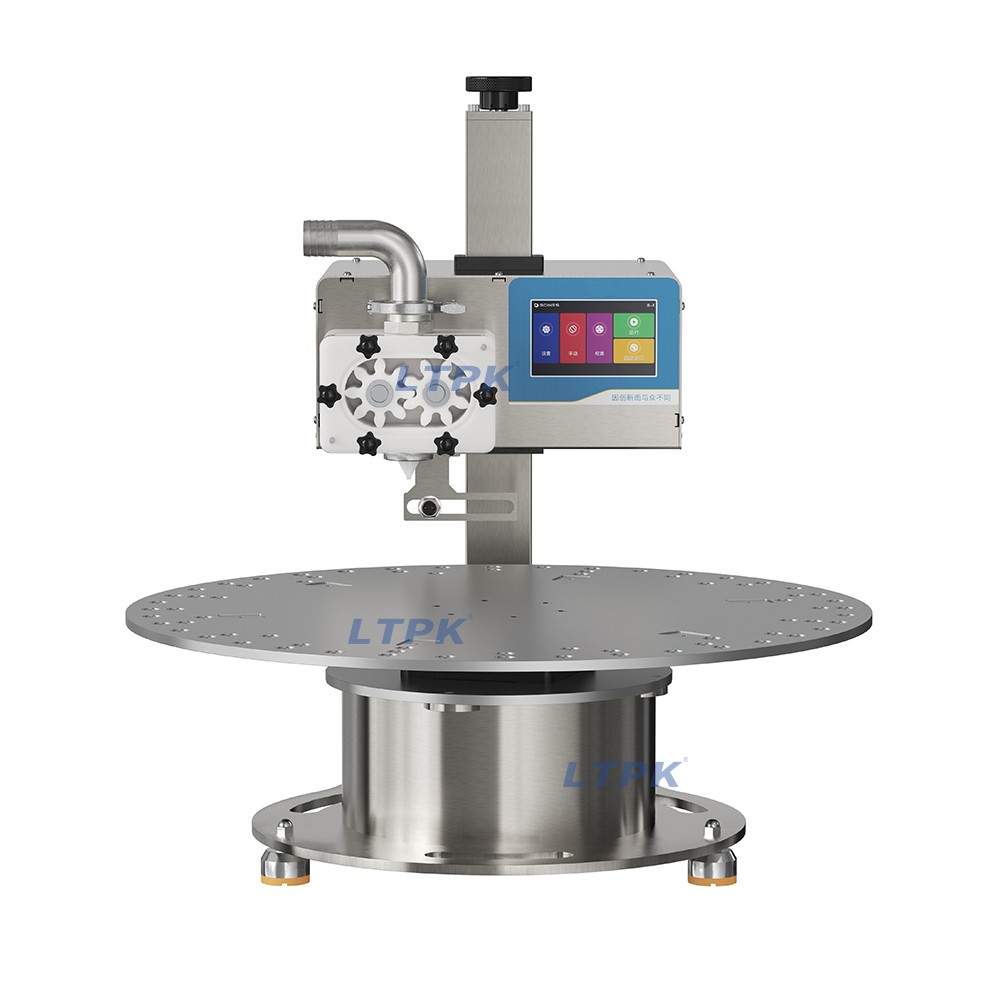

This filling machine uses a gear pump and is suitable for high viscosity liquids.It is equipped with an infrared sensing bottle system,the turntable and the filling machine work automatically in coordination, freeing up your hands. It can achieve small-dose container filling, with a minimum filling volume of 5g.Touch screen display, convenient for setting.
Application:
Suitable for honey,yogurt,salad,soy sauce, pear paste,peanut butter, tomato sauce,edible butter and other food products.Shampoo, dishwashing liquid,resin, and other products across various industries.
|
Model |
8-X-4 |
|
Voltage |
220/110V |
|
Power |
400W |
|
Pump |
gear pump |
|
Control method |
PLC |
|
Flow |
10L/min |
|
Filing range |
5-1000g |
|
Filling accuracy |
0.1%-0.5% |
|
Suitable bottle height |
≤190mm |
|
Turntable diameter |
600mm |
|
Turntable speed |
0-3rpm adjustable |
|
Turntable load capacity |
10kg |
|
Suitable viscosity |
1000-180000cp |
|
Material temperature |
≤70℃ |
|
Machine size |
850*600*635mm |
|
Machine weight |
55kg |
|

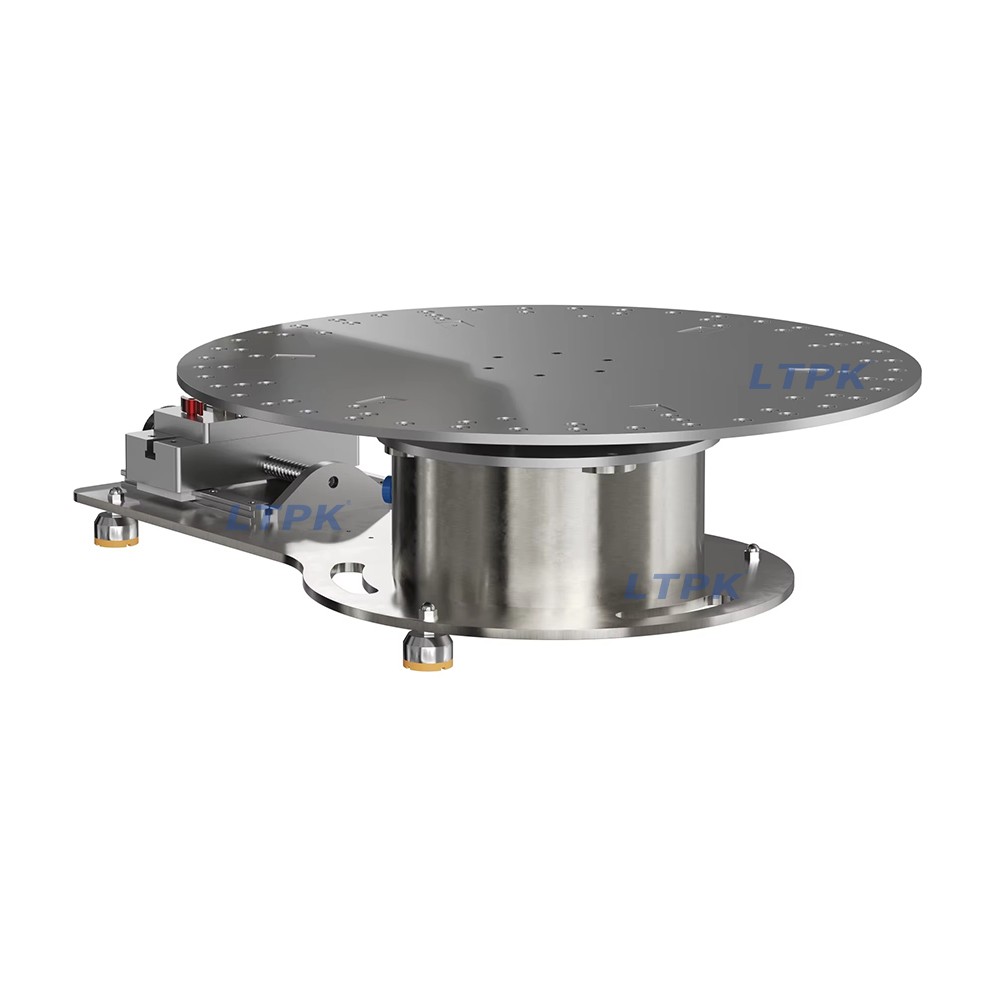

Fixed angle rotation, filling once per rotation, suitable for irregular bottles |
|
