Description
Description

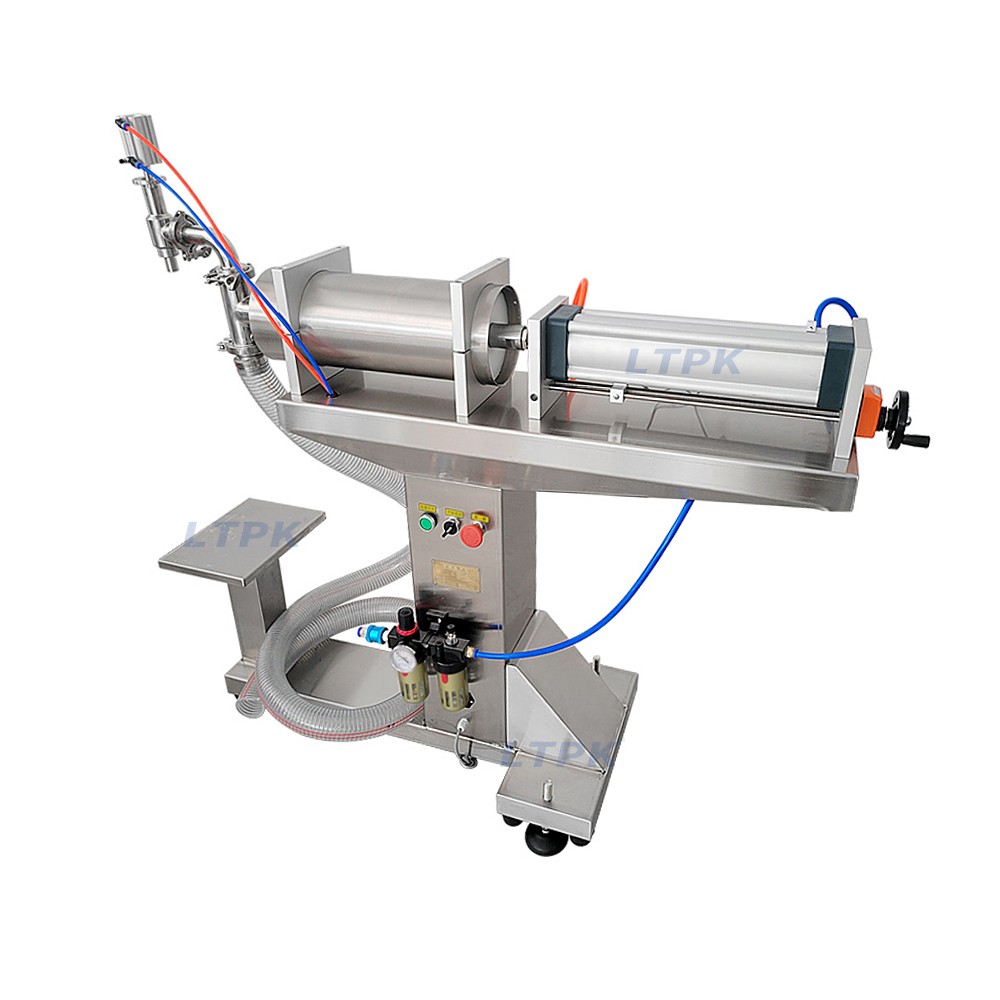

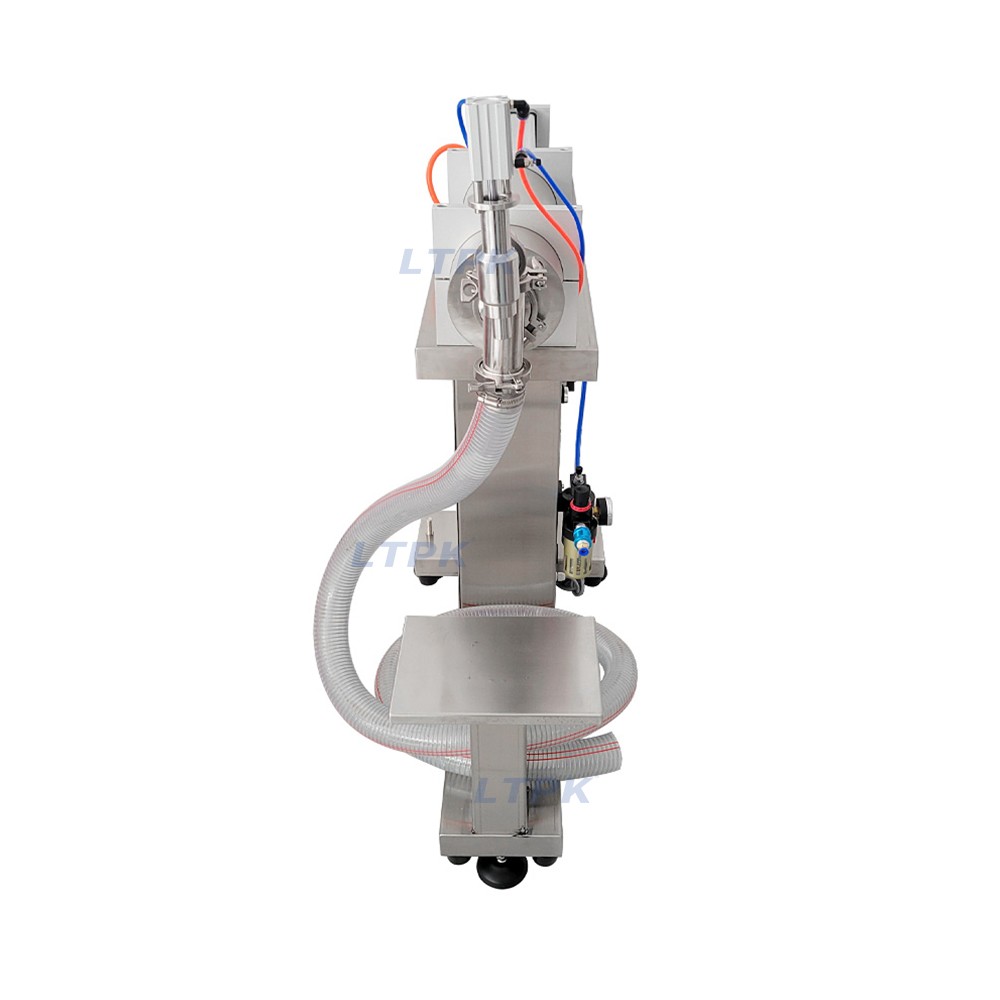

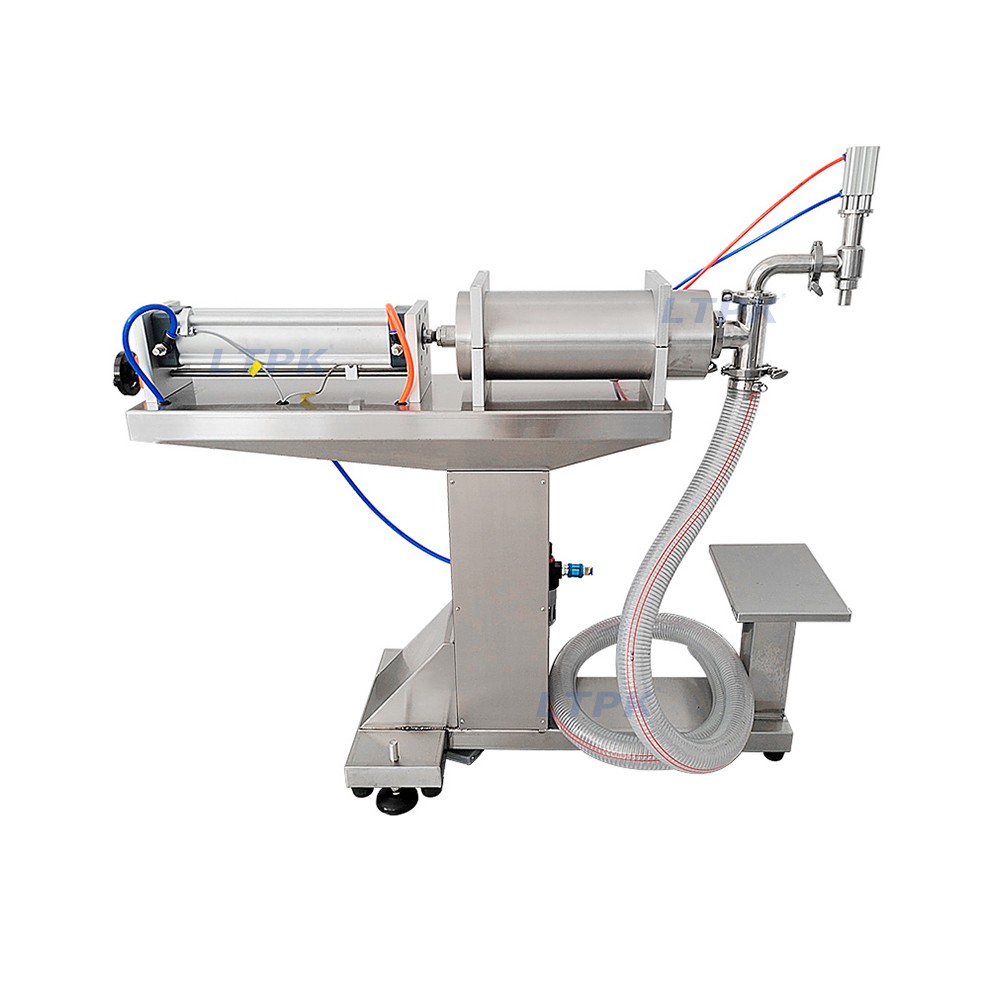

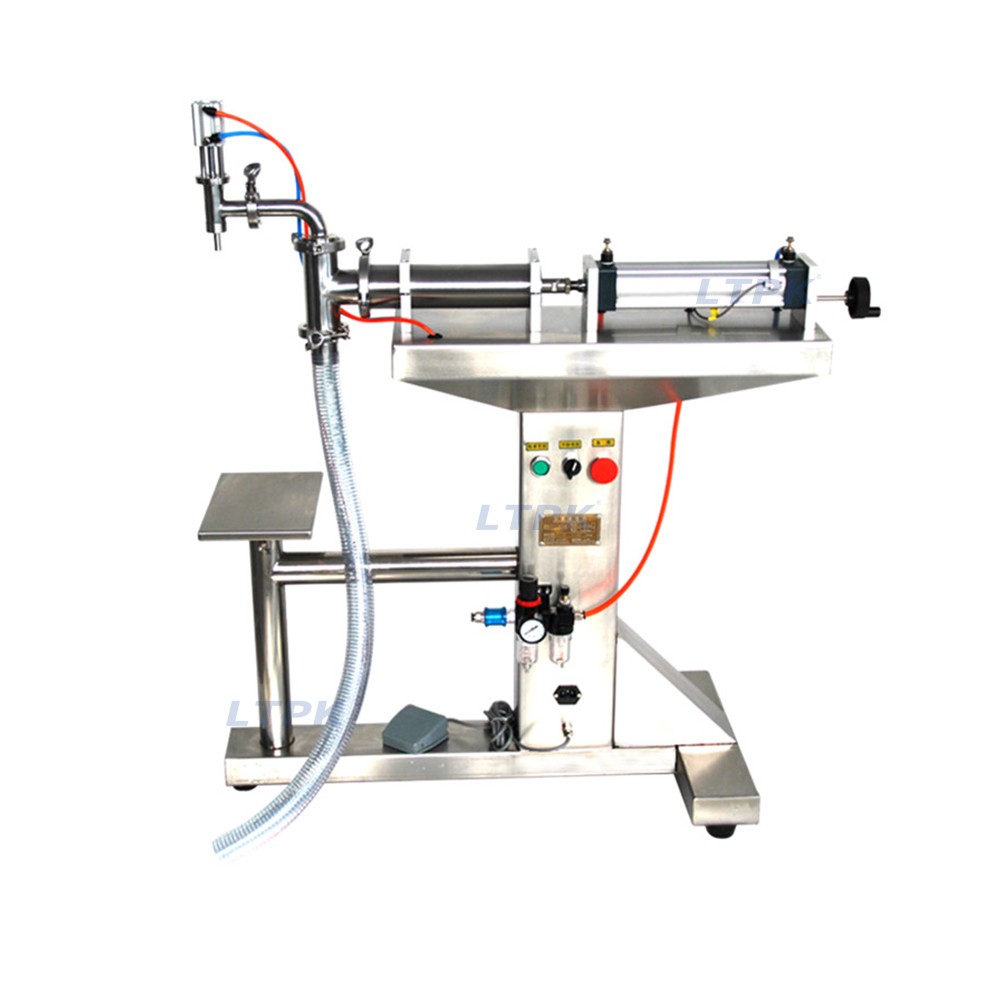

Floor type liquid filling machine is suitable for filling multiple flow liquid. It is widely used in widely areas,such as cosmetic,food,pesticide and special industries.The filling machine uses the piston measuring mode and compressed air as the power to work.The filling range can be adjusted, safe, reliable and easily used.
Application：
Widely used in the filling of various liquids, beverages, oil, low viscous liquid, etc.
Technical Parameters
|
Machine Model |
LT-LYF1000 |
|
Voltage |
220V/50Hz 110V/60Hz |
|
Power |
100W |
|
Energy Source |
Electric and pneumatic |
|
Filling Nozzle |
1 or 2 Nozzles |
|
Filling Range |
3-30ml/10-100ml /30-300ml/50-500ml/100-1000ml/500-3000ml/ 1000-5000ml |
|
Filling Speed |
About 10-30 bottles/min |
|
Filling Accuracy |
±1% |
|
Air Pressure |
0.4-0.6MPa |
|
Height of Bottle Holder |
Adjustable |
|
Package Weight |
72.5kg |
|
Package Size |
1310*575*930mm |
