Description
Description：

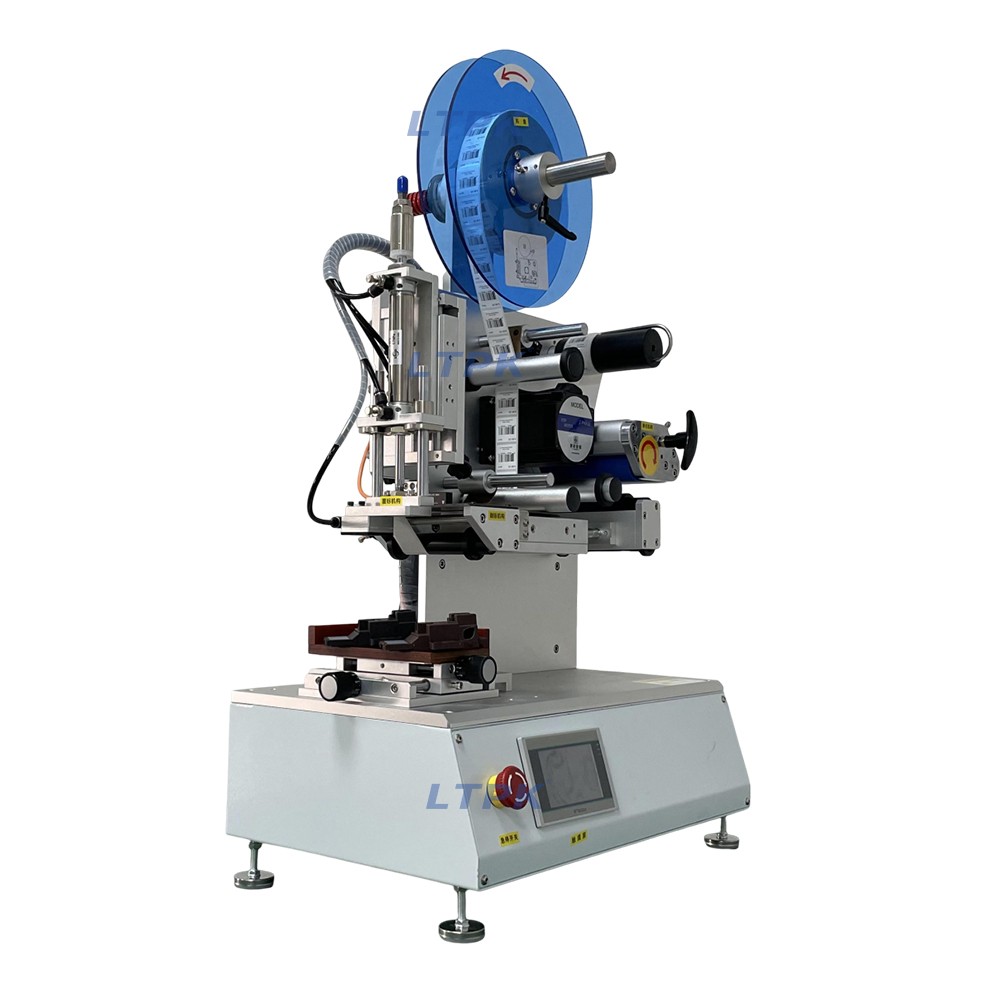

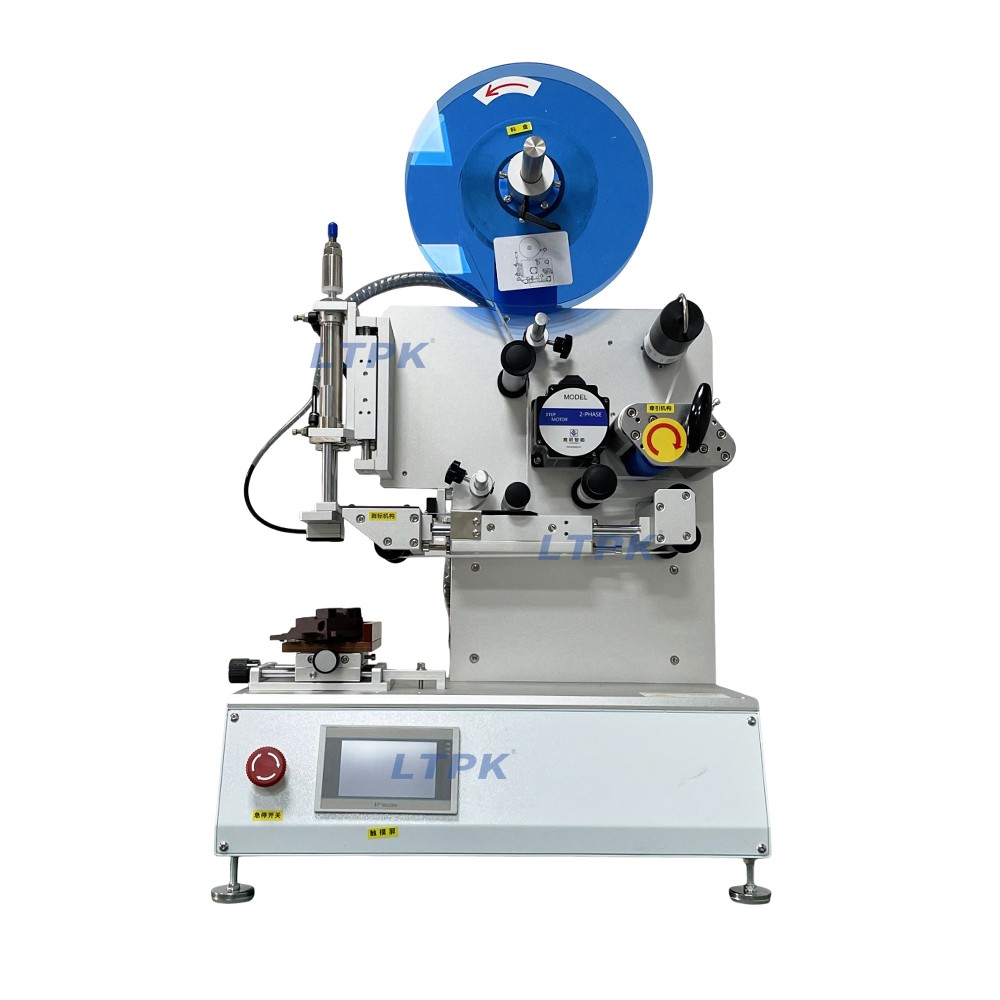

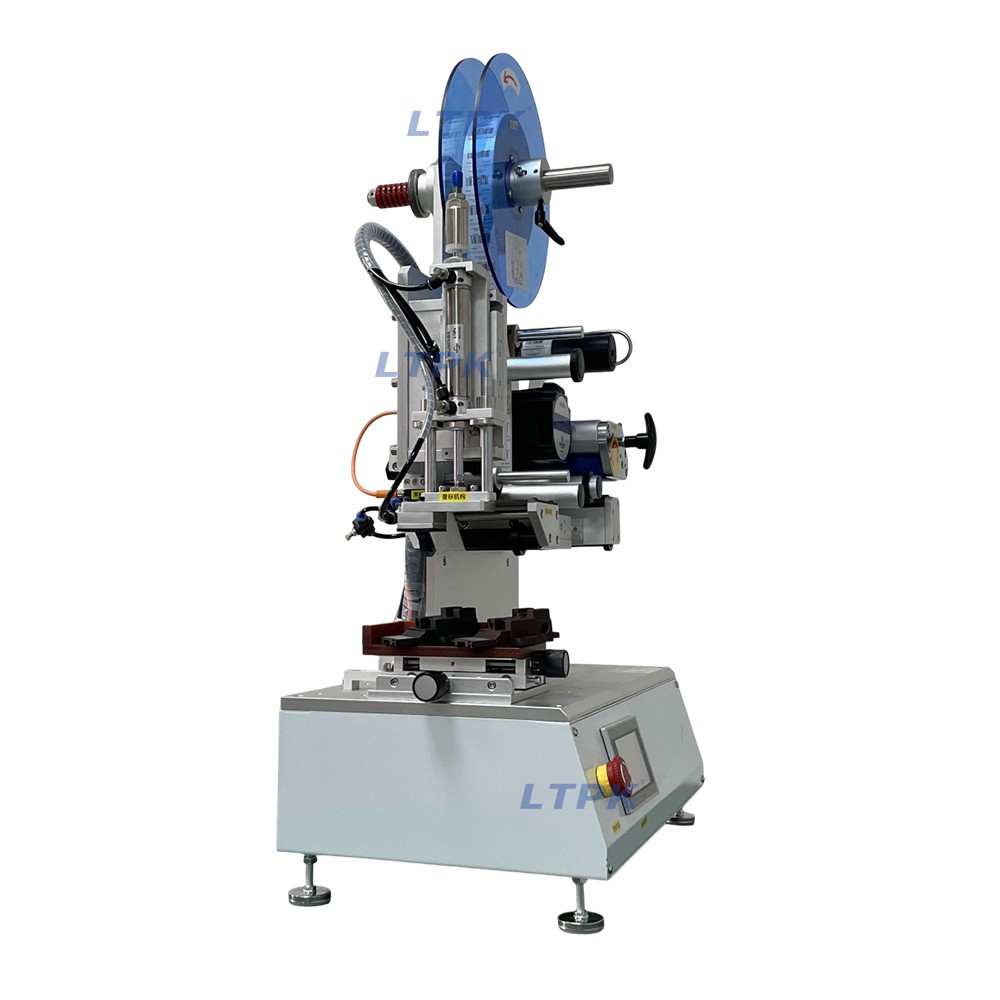

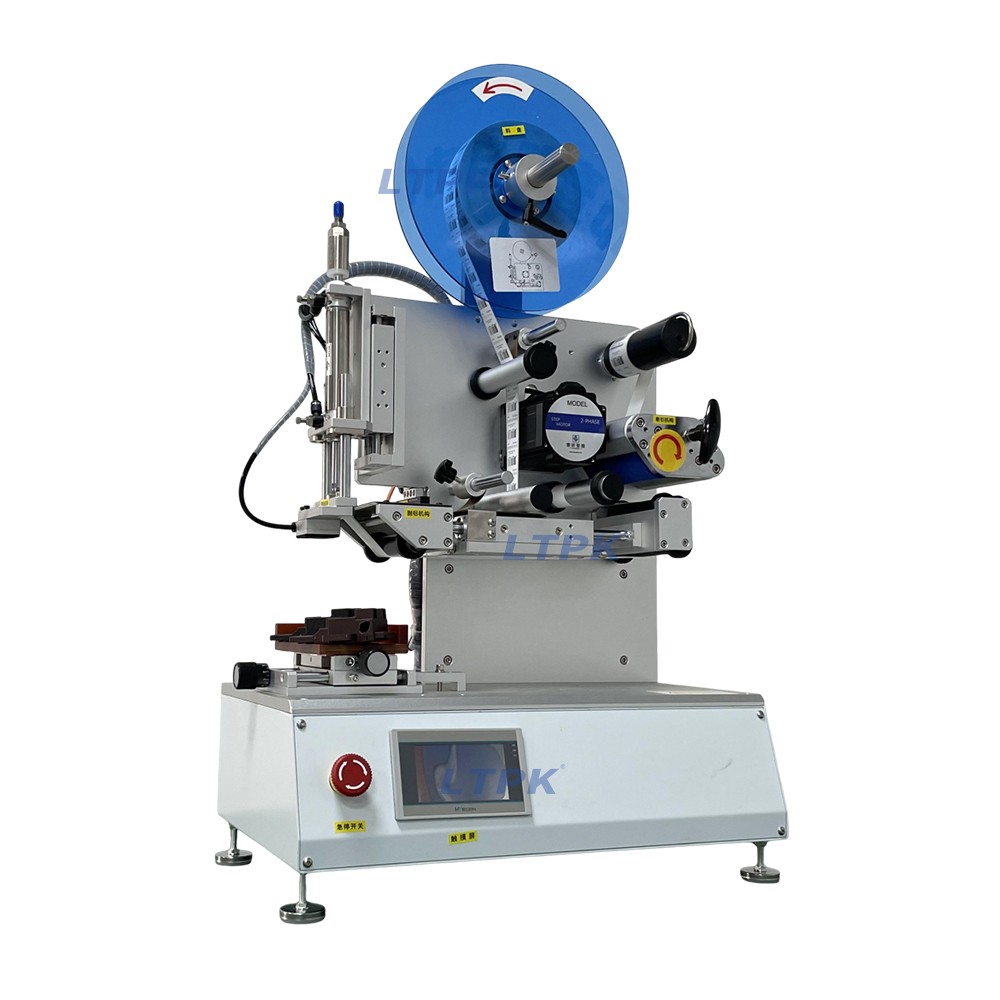

The semi-automatic high-precision flat labeling machine applies the suction method for labeling, achieving labeling on various surfaces of workpieces. By changing the labeling mechanism, it can be applied to label uneven surfaces such as concave and curved surfaces. Change the fixture to be suitable for labeling various irregular workpieces
Application:

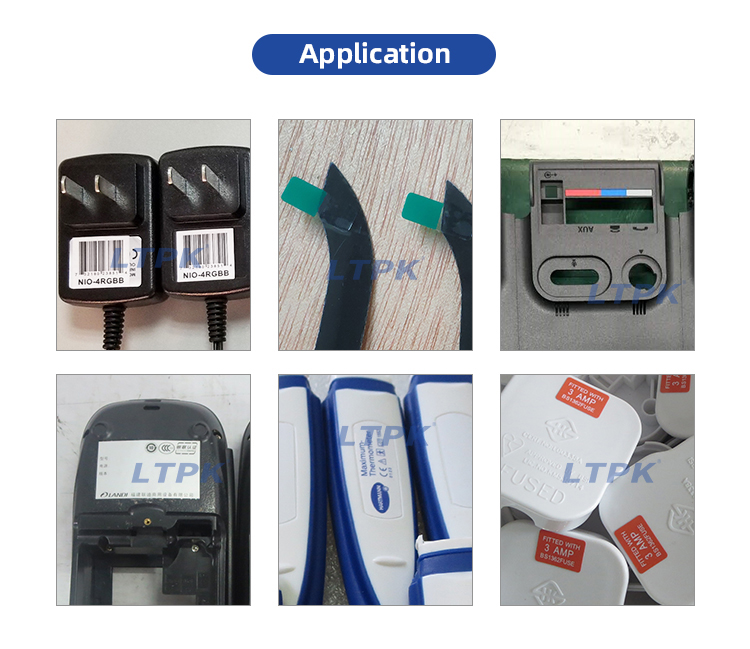

Suitable for precise labeling of electronic components and digital products, such as SD card, mobile phone battery, FPC (flexible circuit board), mobile phone charger, etc
Technical parameters：
|
Model |
LT-T303 |
|
Voltage |
220V |
|
Labeling accuracy |
±0.3mm |
|
Labeling speed |
15-25pcs/min |
|
Applicable product size |
L:20-200mm,W:20-180mm,H:0.2-75mm |
|
Applicable label size |
L:10-60mm,W:6-70mm |
|
Machine weight |
About 67kg |
|
Machine size |
550*420*780mm |
