Description
Description：

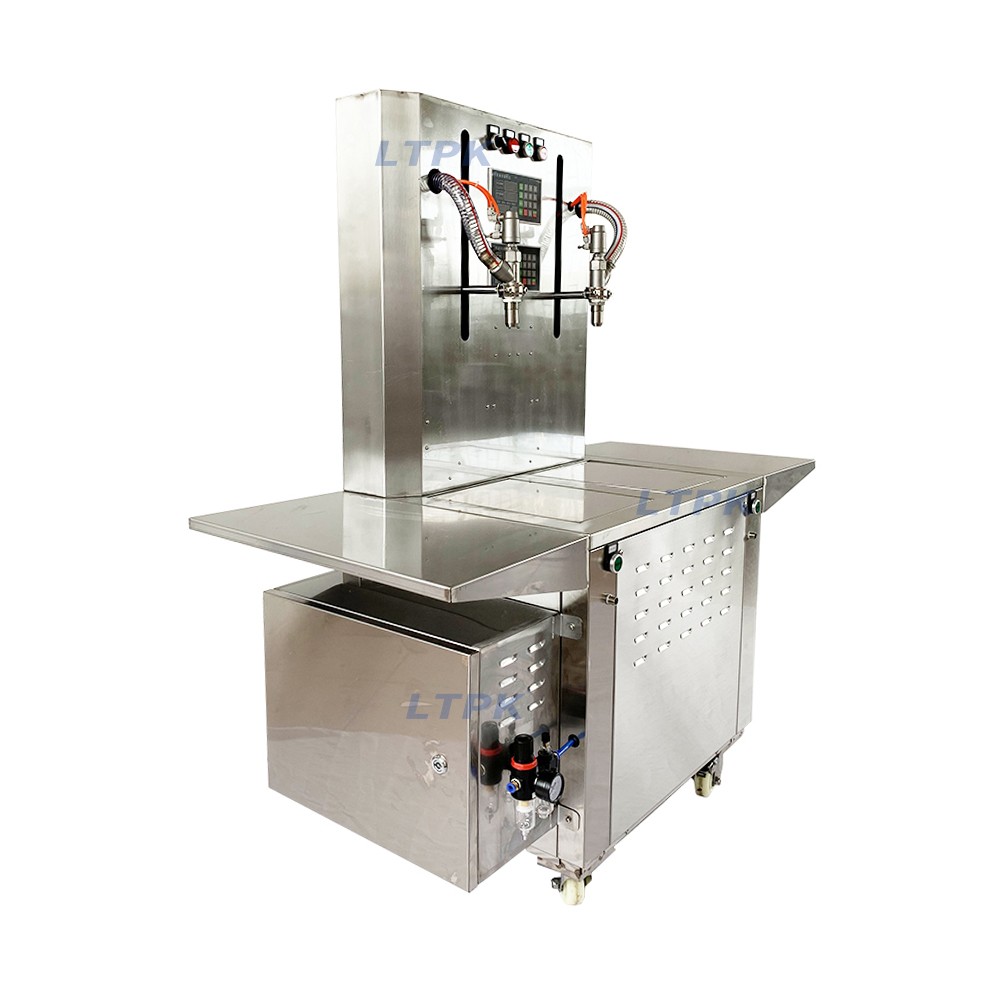

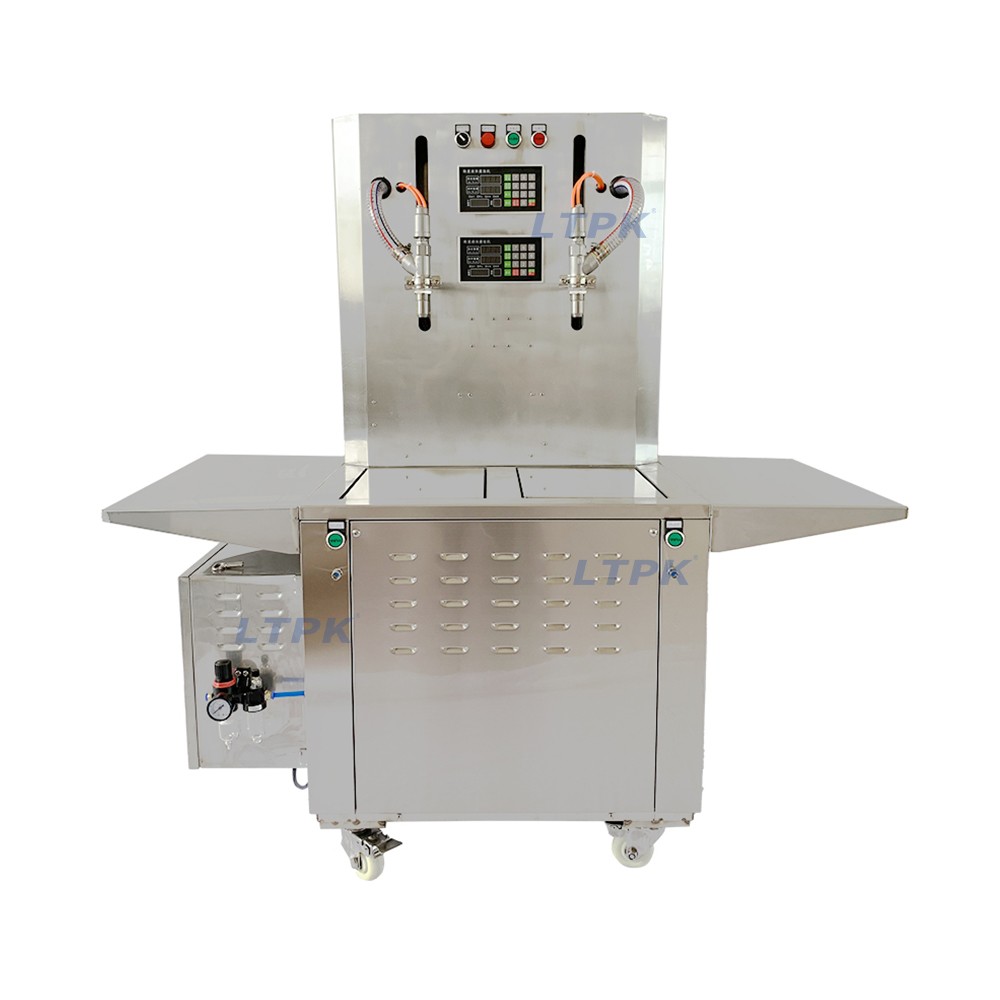

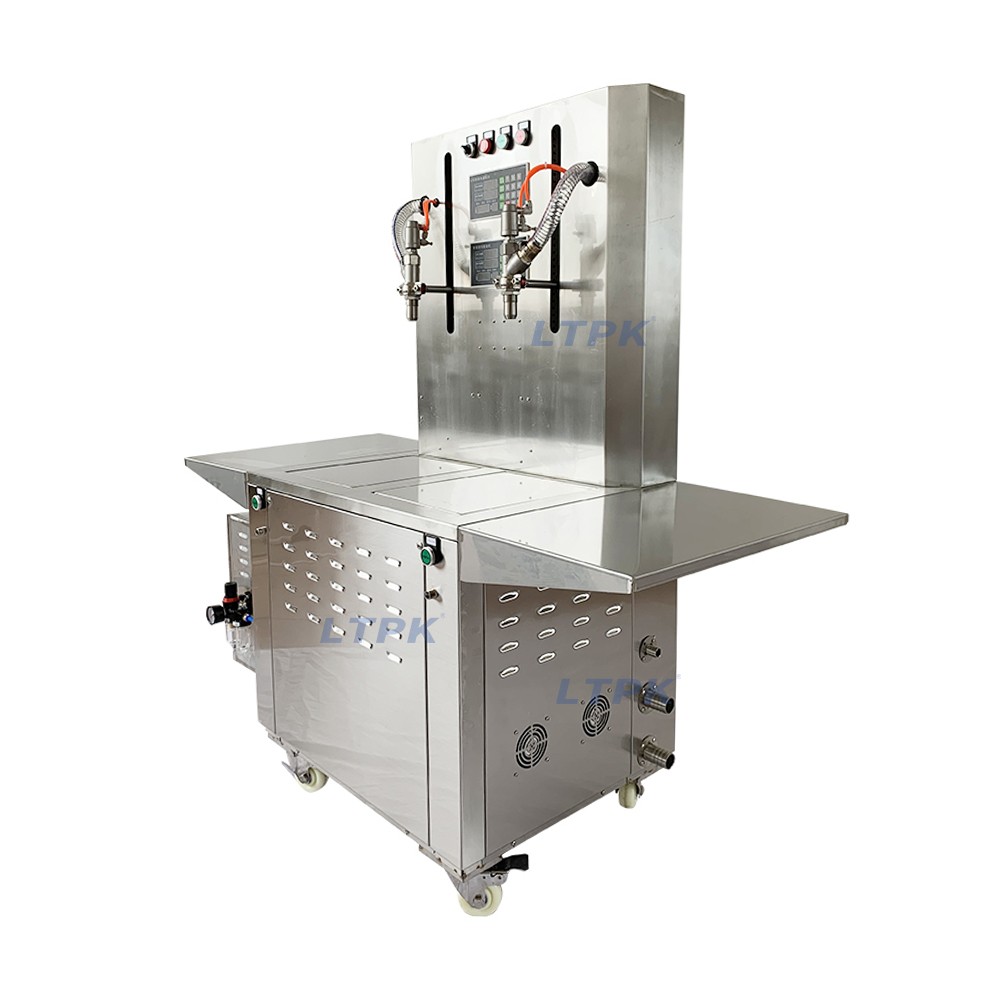

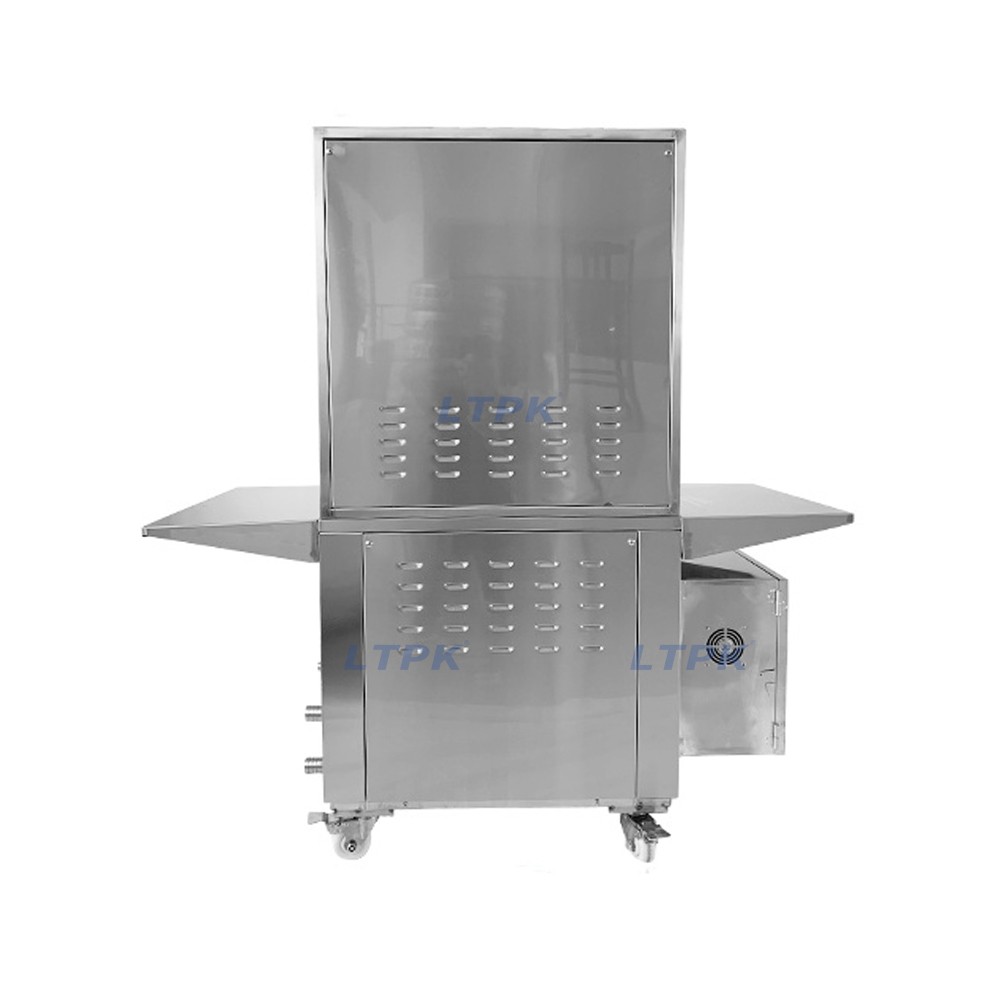

The dual head liquid weighing and filling machine adopts world-renowned brands of electrical and pneumatic components, with low failure rate, stable and reliable performance, and long service life. No need to replace parts, can adjust to the bottles of different shapes and specifications, with strong applicability
Application:
Suitable for filling various liquid products, such as engine oil, gear oil, hydraulic oil, edible oil, etc.
Technical parameters：
|
Model |
LT-G380B |
|
Voltage |
220/110V |
|
Power |
3000W |
|
Maximum flow rate |
100L/2 head/min |
|
Filling accuracy |
±10g |
|
Filling range |
150g-30kg |
|
Filling nozzle |
25mm |
|
Liquid temperature |
<90℃ |
|
Max suction distance |
8m |
|
Hose size |
32*41mm |
|
Bracket height |
15-55cm adjustable |
|
Machine size |
135*57*130cm |
|
Machine weight |
145kg |
