  • Four Head Vacuum Negative Pressure Filling Machine for Perfume, Alcohol Volatile Liquid
  • Four Head Vacuum Negative Pressure Filling Machine for Perfume, Alcohol Volatile Liquid
  • Four Head Vacuum Negative Pressure Filling Machine for Perfume, Alcohol Volatile Liquid
  • Four Head Vacuum Negative Pressure Filling Machine for Perfume, Alcohol Volatile Liquid
Four Head Vacuum Negative Pressure Filling Machine for Perfume, Alcohol Volatile Liquid Four Head Vacuum Negative Pressure Filling Machine for Perfume, Alcohol Volatile Liquid Four Head Vacuum Negative Pressure Filling Machine for Perfume, Alcohol Volatile Liquid Four Head Vacuum Negative Pressure Filling Machine for Perfume, Alcohol Volatile Liquid

Four Head Vacuum Negative Pressure Filling Machine for Perfume, Alcohol Volatile Liquid

vacuum filler  , perfume filling equipment  , glass bottle filling machine  , volatile liquid filling machine
Inquiry Send Email

Description

Description:

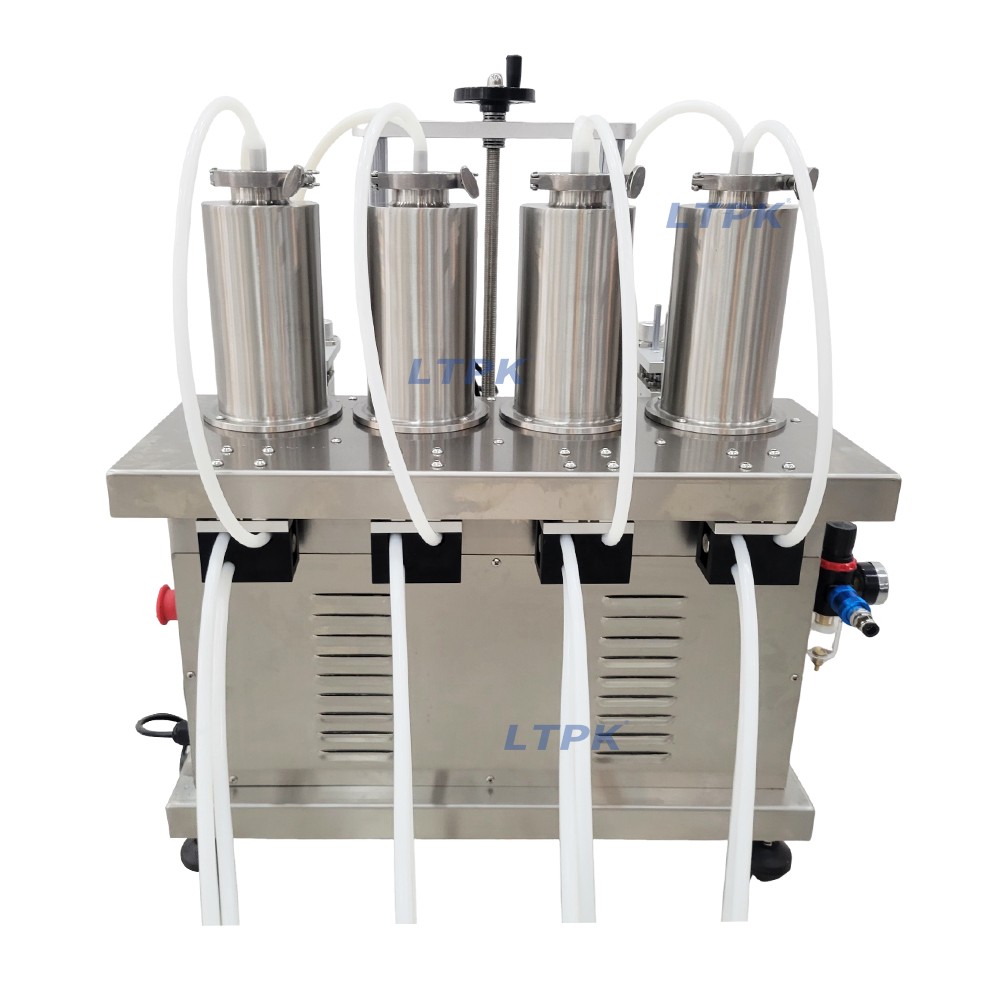

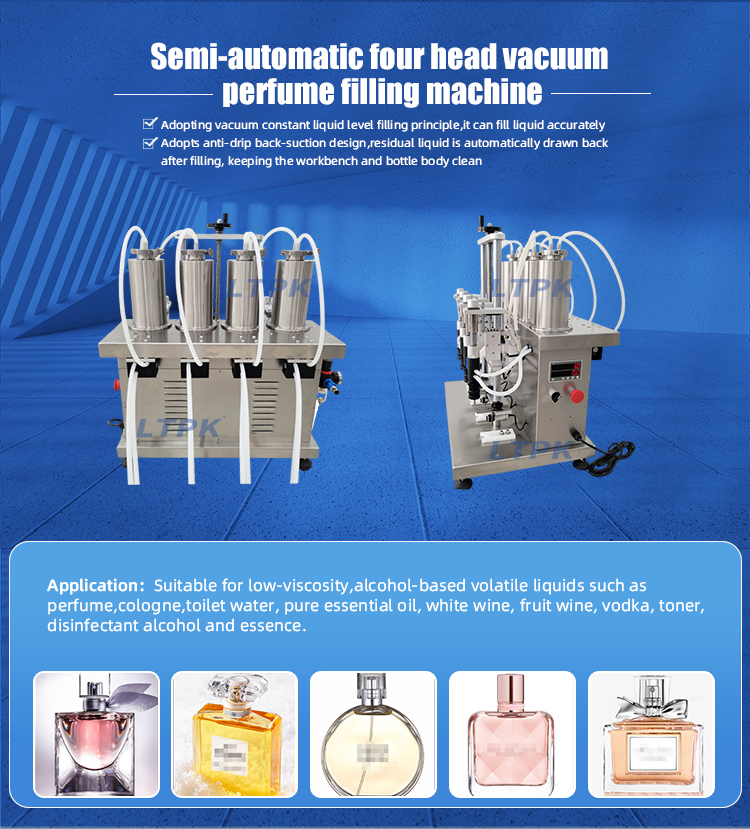

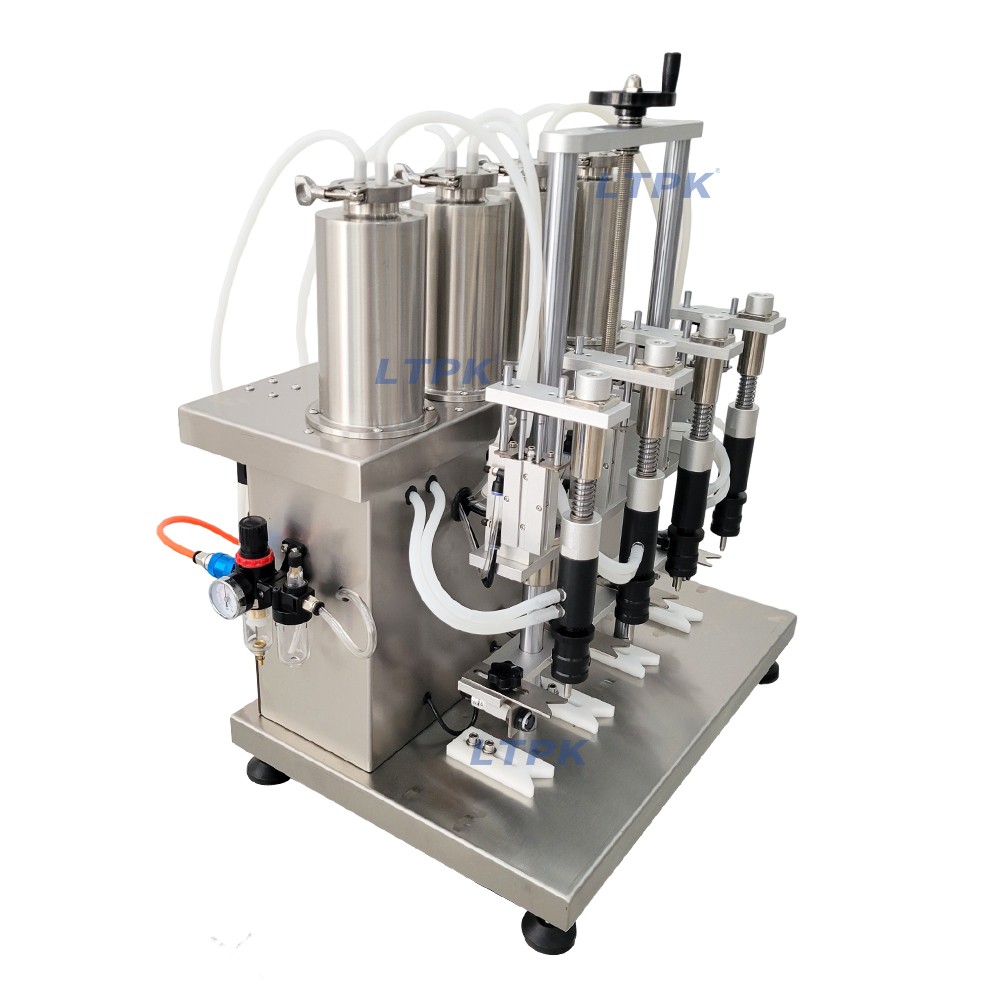

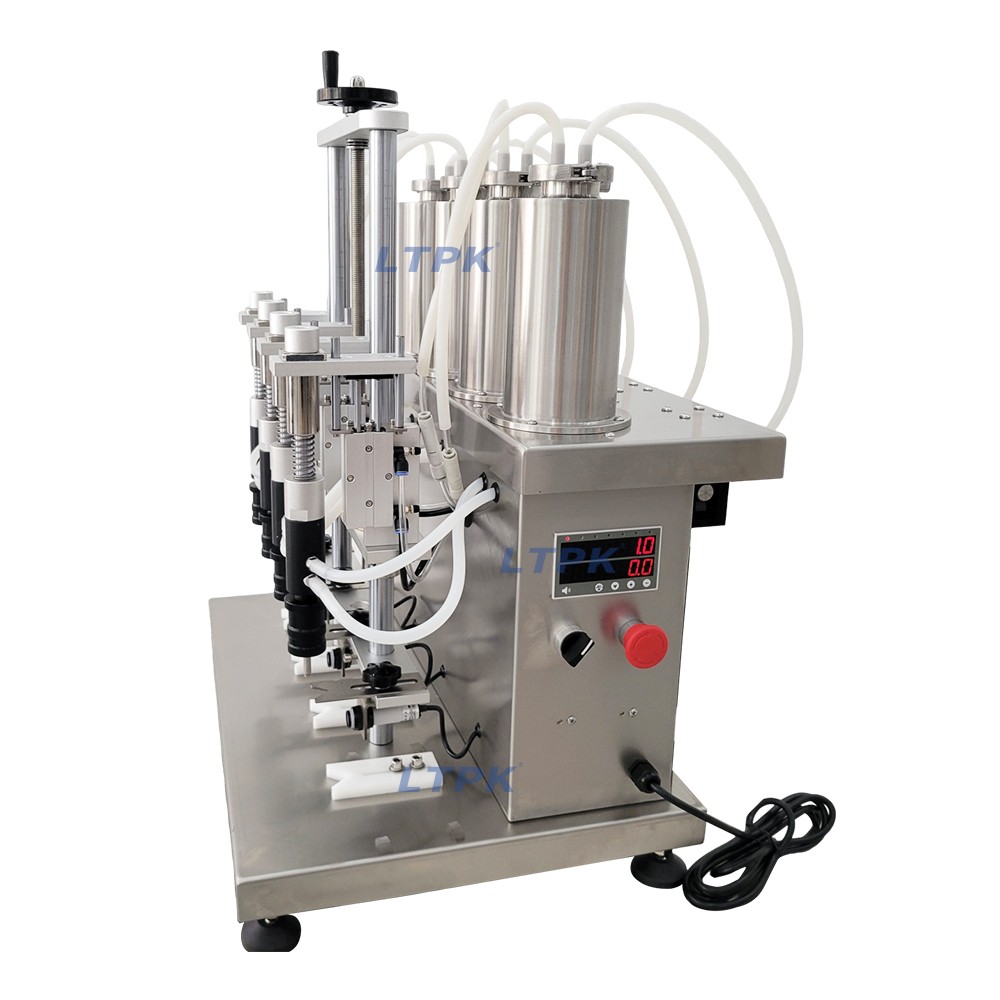

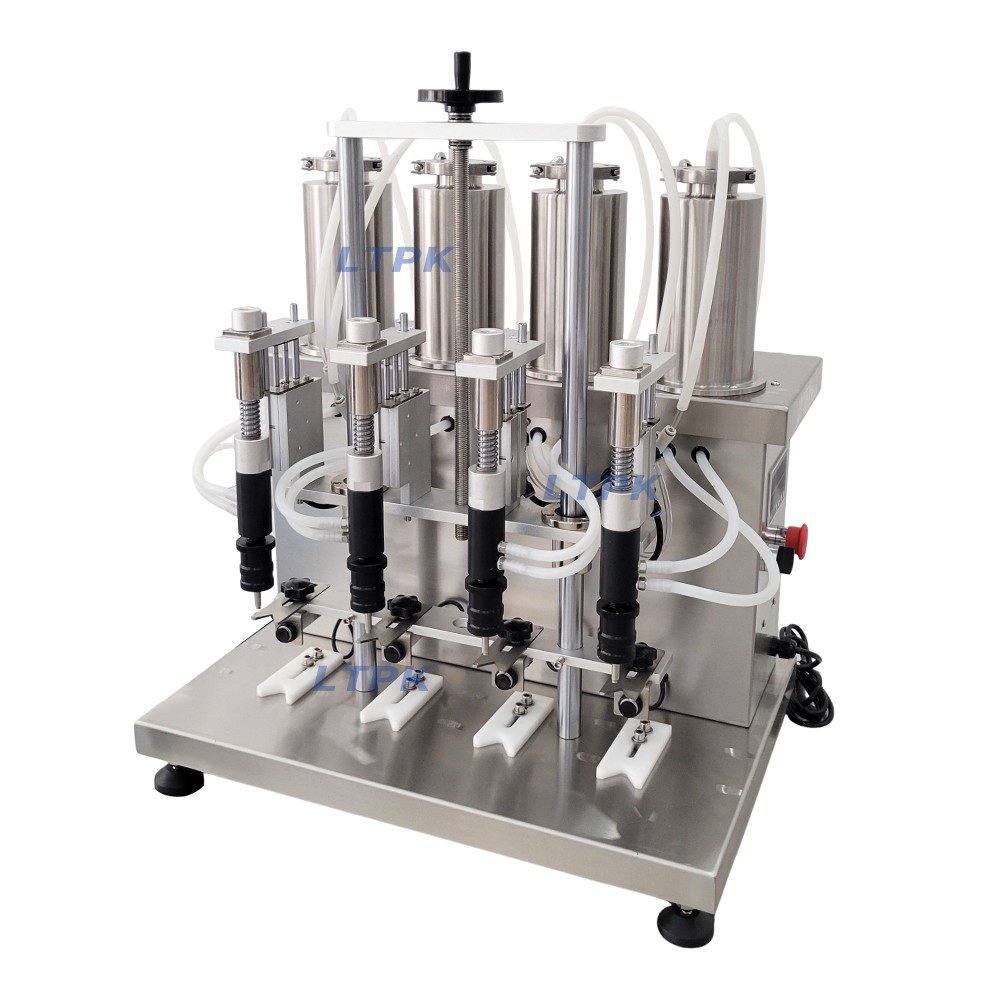

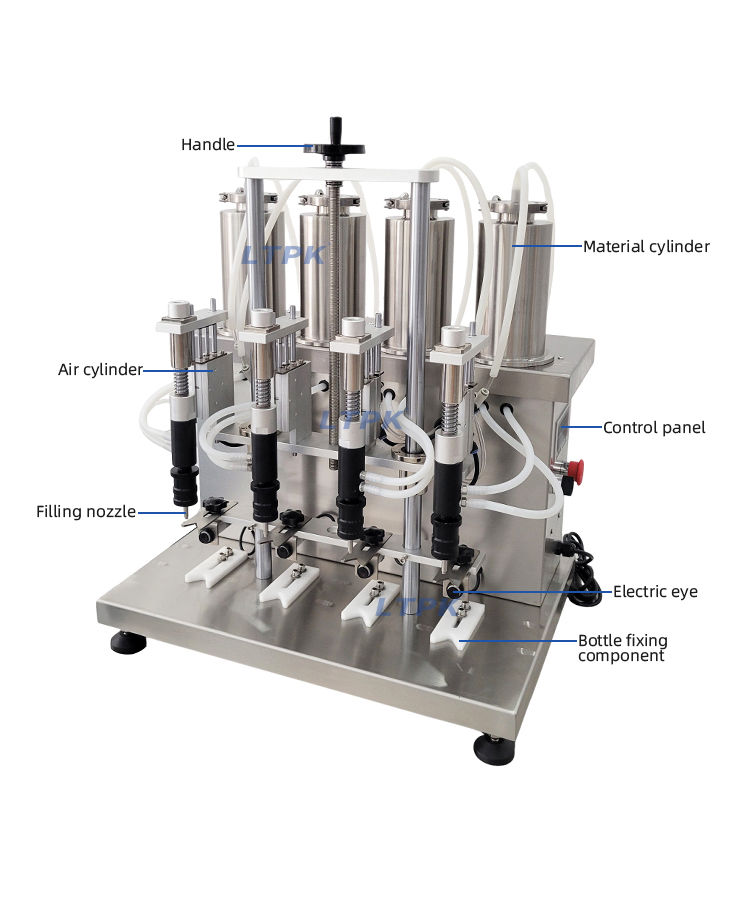

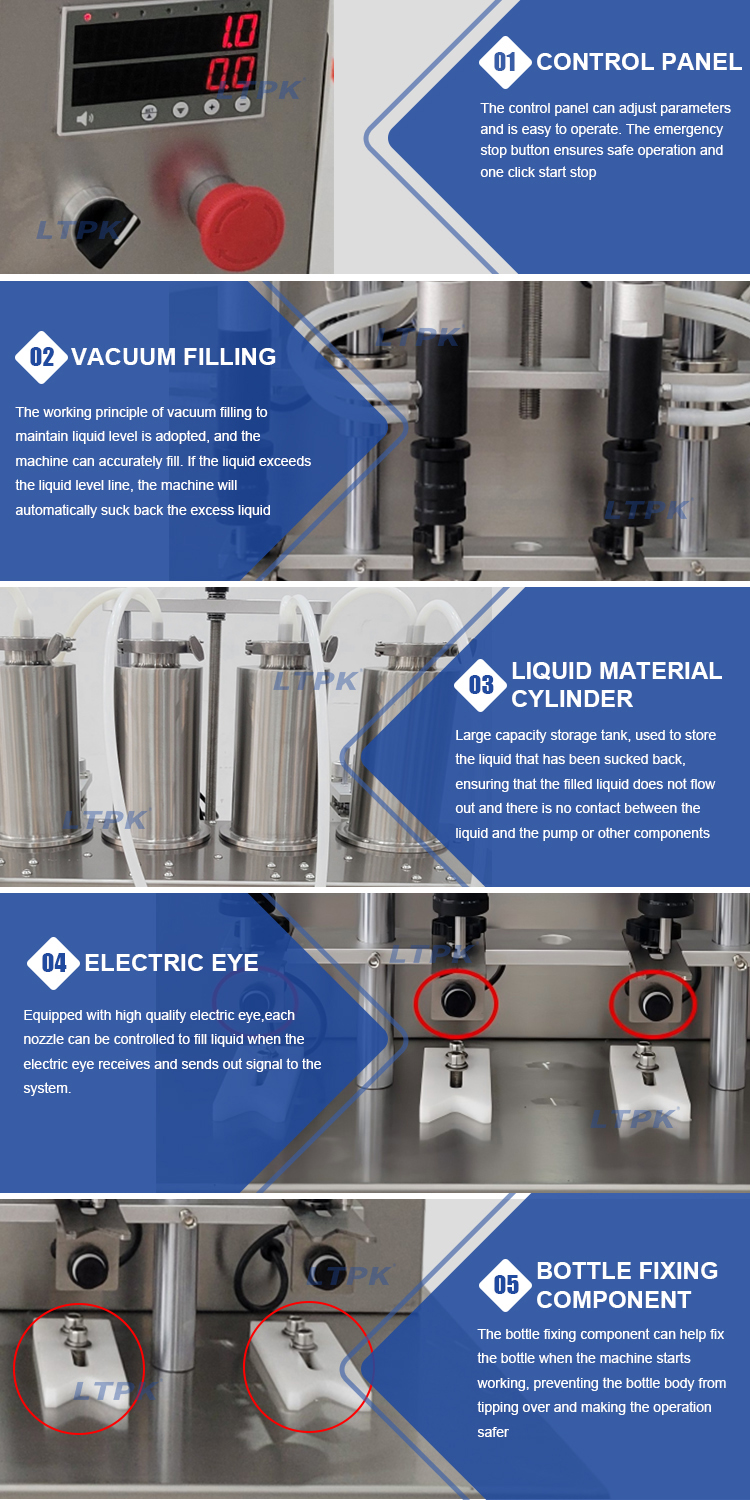

Semi-automatic four-head negative pressure vacuum filling machine,constructed of stainless steel. It performs equal-level filling based on the vacuum negative pressure principle, specially designed for glass bottles and narrow-mouth bottles,serving as the primary filling equipment for small and medium-batch production of daily chemicals, liquor,essences and spices.



Application:

Suitable for low-viscosity,alcohol-based volatile liquids such as perfume,cologne,toilet water, pure essential oil, white wine, fruit wine, vodka, toner, disinfectant alcohol and essence.



Model

LT-VPF4

Voltage

220/110V

Power

50W

Filling range

About 5-500ml

Bottle height

<200mm

Bottle mouth diameter

<22mm

Liquid level (from bottle mouth)

5-20mm

Filling speed

40-50bottle/min

Air pressure

0.4-0.6MPa

Size

About 71*85*45cm

Weight

About 50kg


Inquiry Us
