  • Auto cup container filling sealing machine
  • Auto cup container filling sealing machine
  • Auto cup container filling sealing machine
  • Auto cup container filling sealing machine
Auto cup container filling sealing machine Auto cup container filling sealing machine Auto cup container filling sealing machine Auto cup container filling sealing machine

Auto cup container filling sealing machine

Inquiry Send Email

Description

Description:

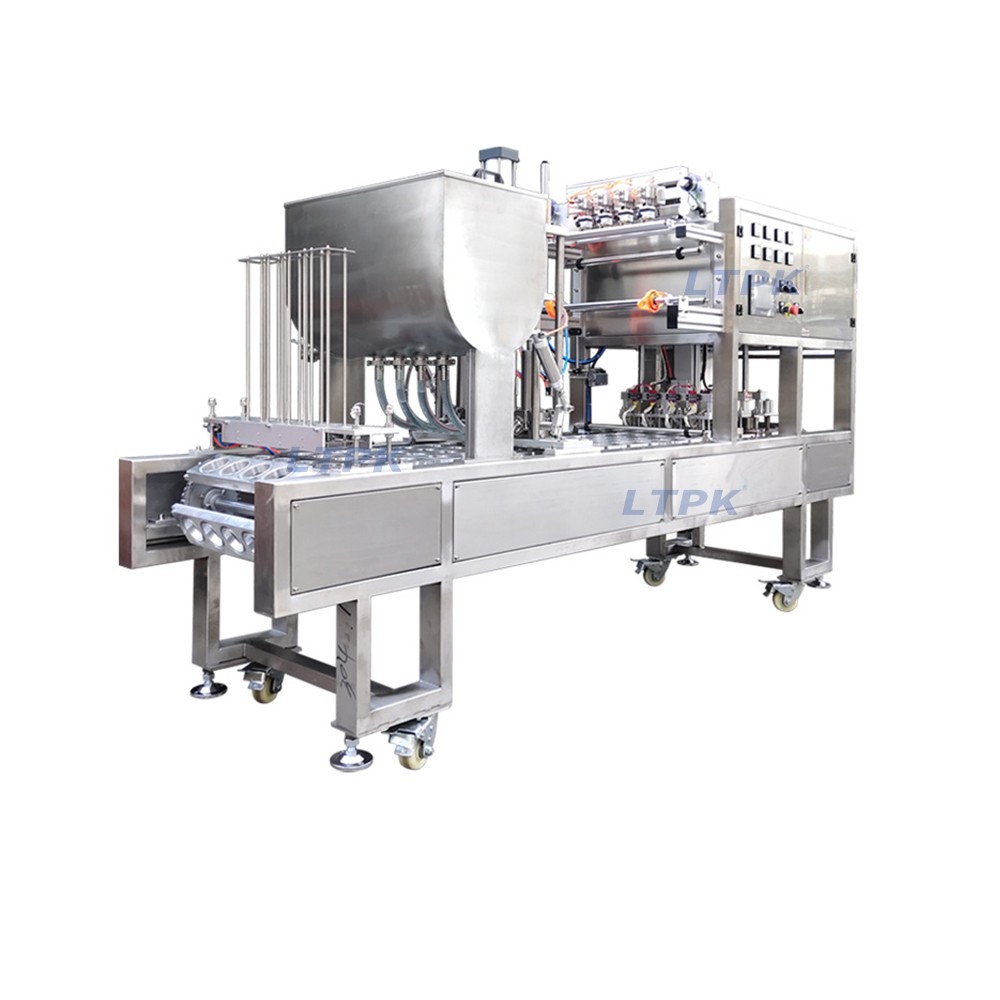

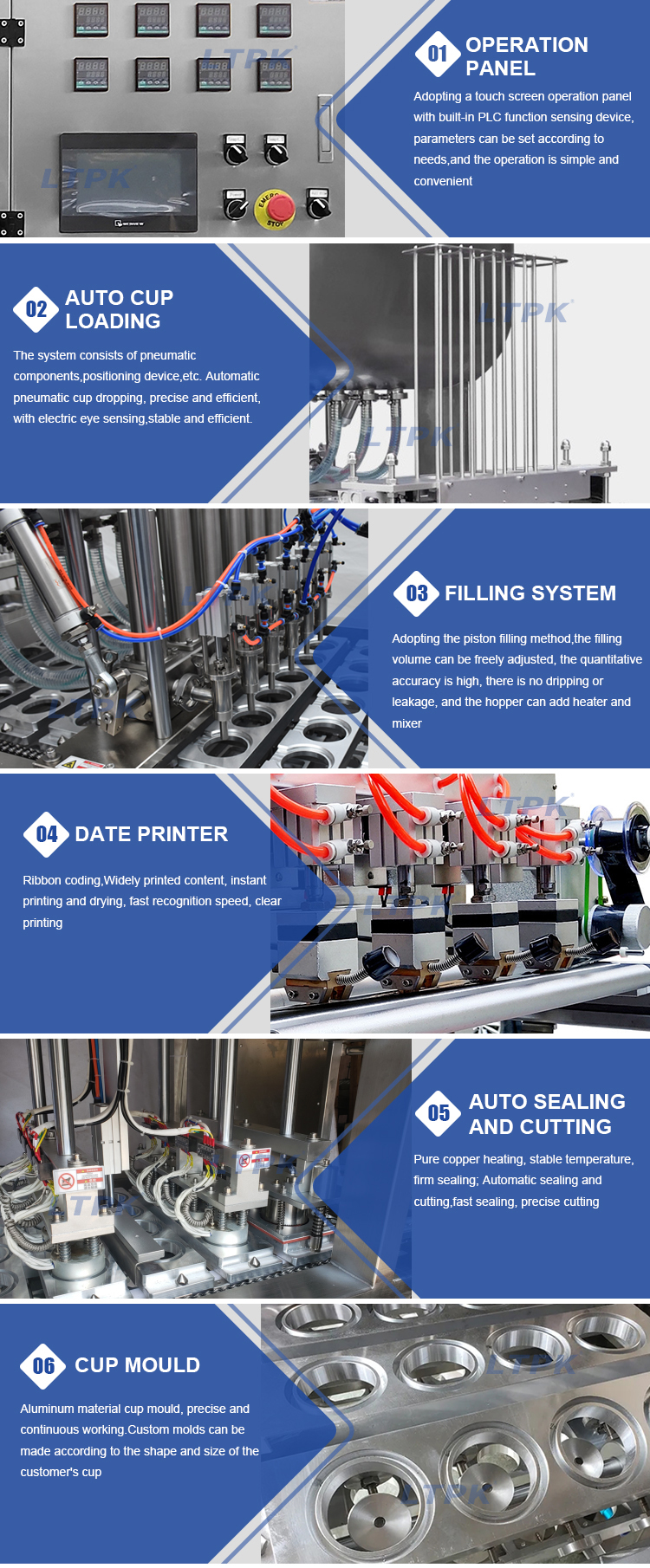

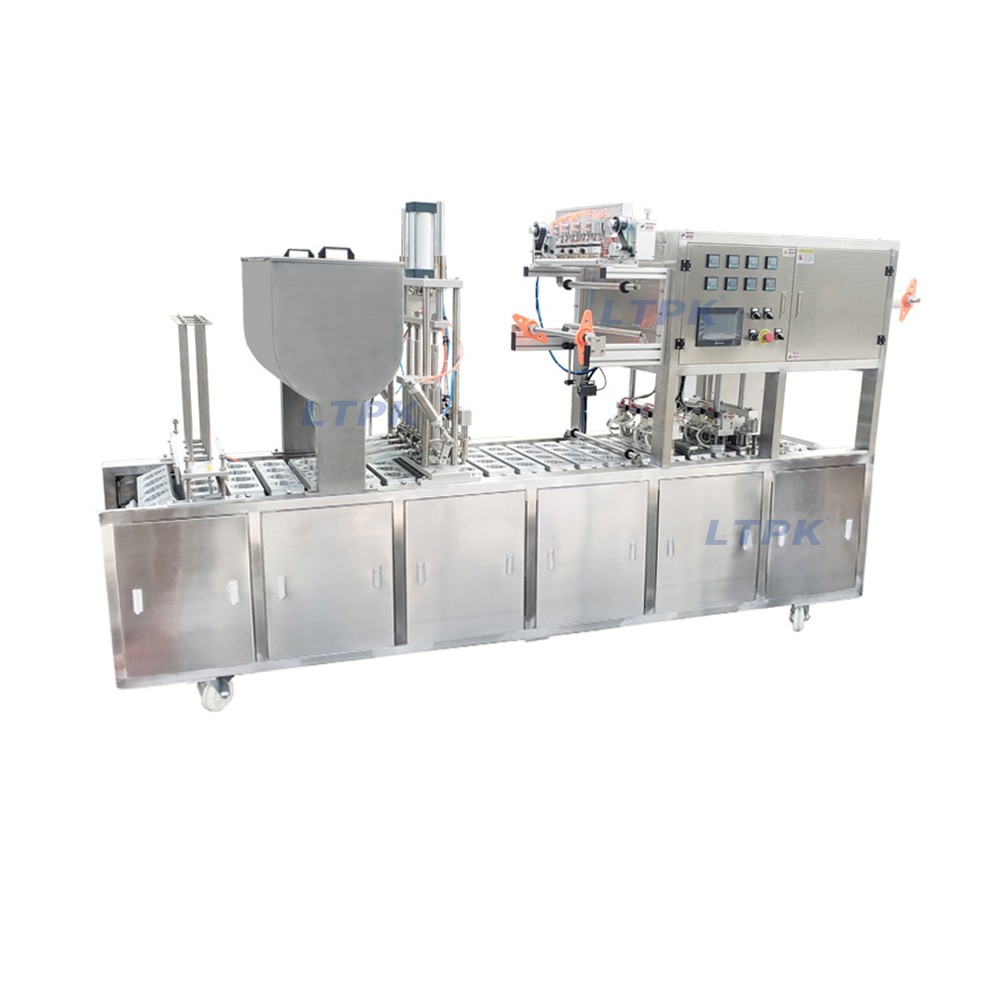

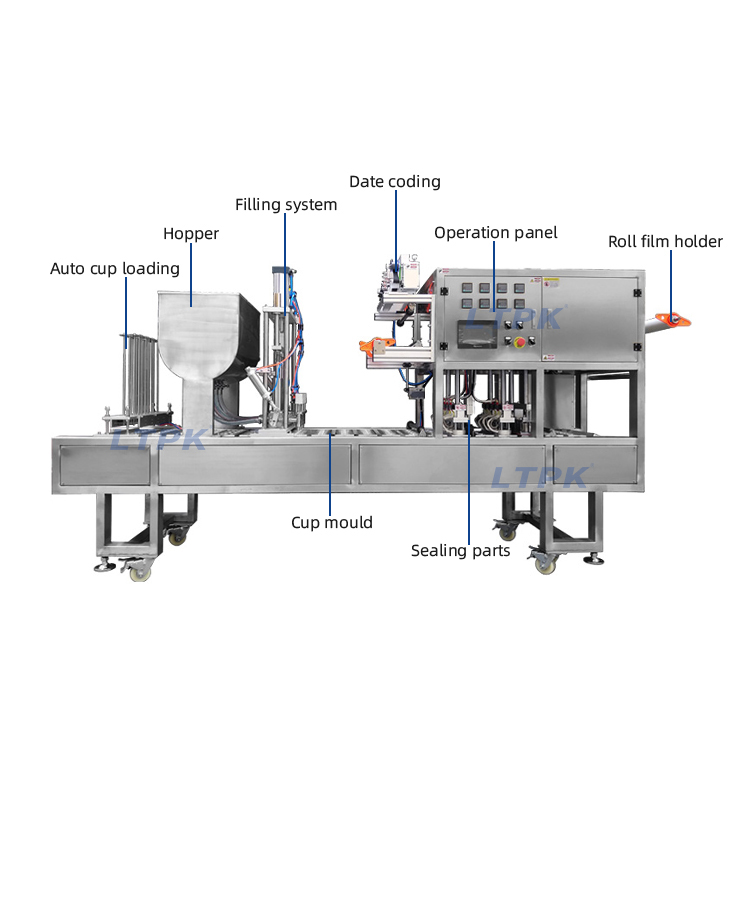

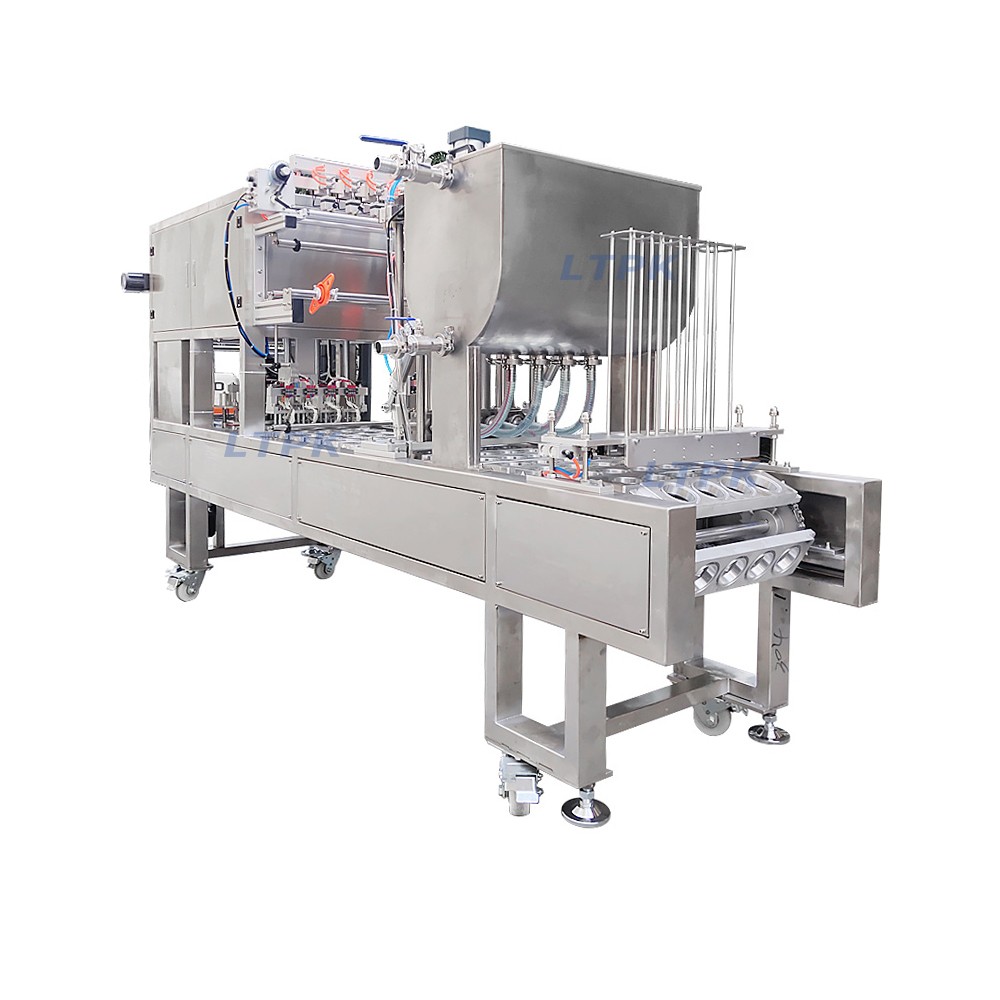

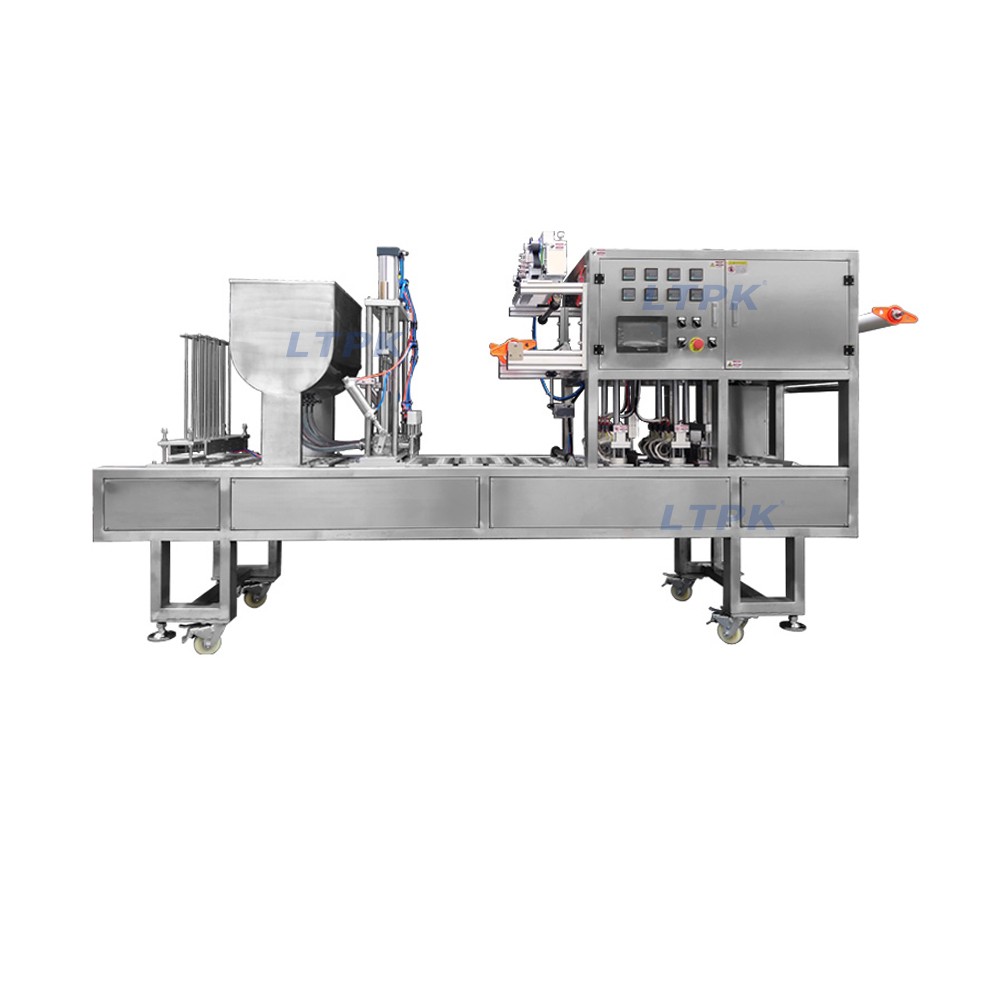

This filling and sealing machine is a full automatic packaging production line. This machine adopts stainless steel fuselage, accords with hygienic requirements and cleanliness. It can be applied to plastic or paper cups, from automatic lift boxes or cups, quantitative filling, heat sealing system, automatic membrane cutting and waste membrane recovery and other functions, and a series of processes can be automatically completed. Adopt the famous brand control system and pneumatic components in Japan, Taiwan and China, which has the characteristics of low failure rate, stable operation and long service life.


Application:

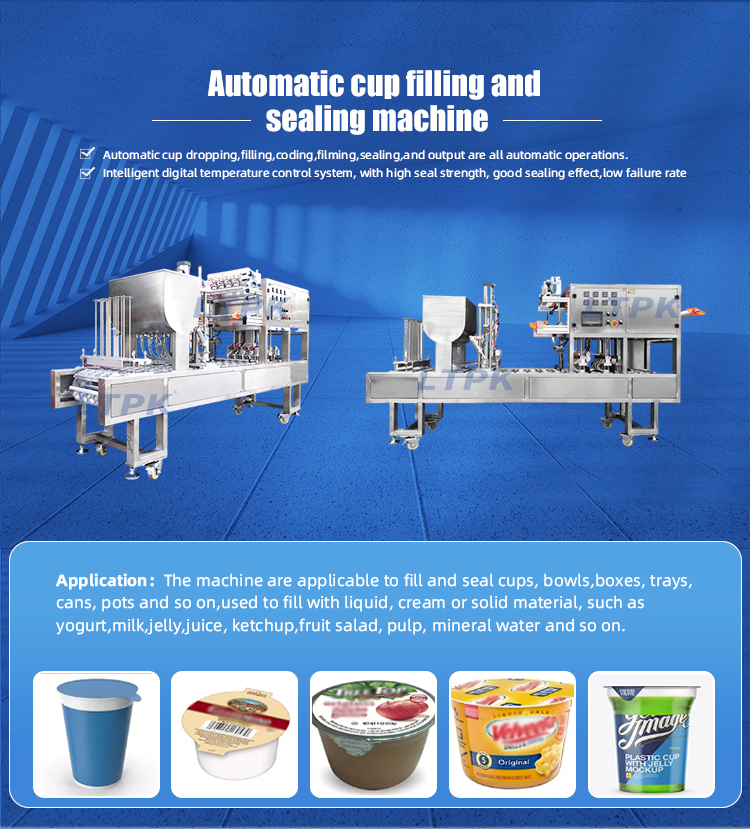

The machine are applicable to fill and seal cups, bowls,boxes, trays, cans, pots and so on,used to fill with liquid, cream or solid material, such as yogurt,milk,jelly,juice, ketchup,fruit salad, pulp, mineral water and so on.



Technical parameters:



Model

BG60A-4

Packing Speed

3200-3600cups/hour(4 lane cups,can custom)

Voltage

380V/3Phase

Machine Power

4.5KW

Filling Range

10-300ml (can custom)

Cup caliber

Customized according to customer requirements

Air source

0.5MPa-0.75MPa

Dimension

300*100*180 cm

Machine Weight

About 800kg


Inquiry Us
