Description
Description:

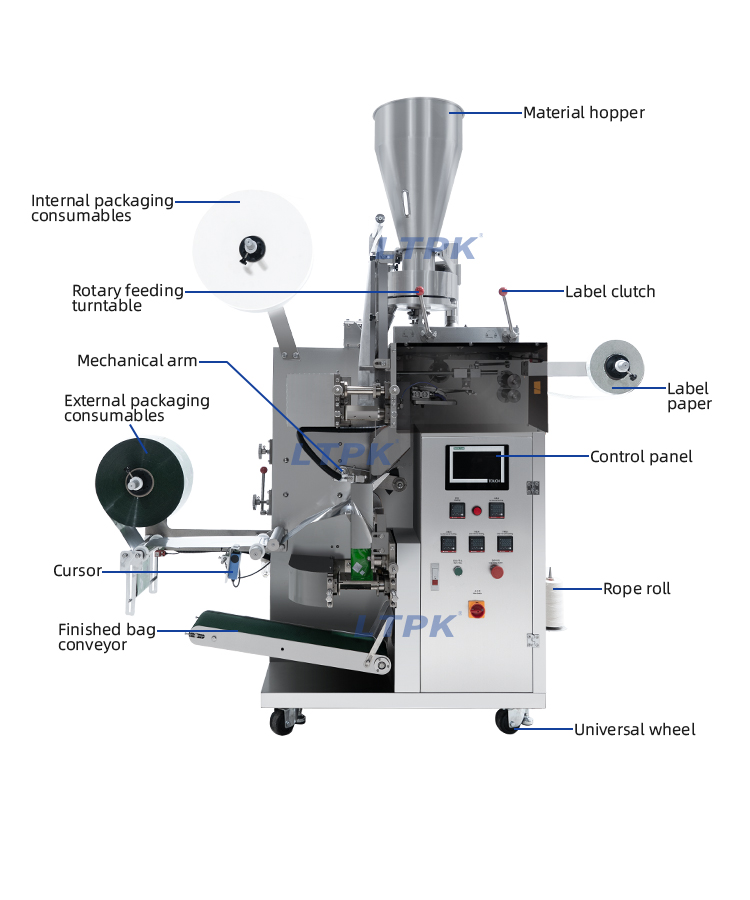

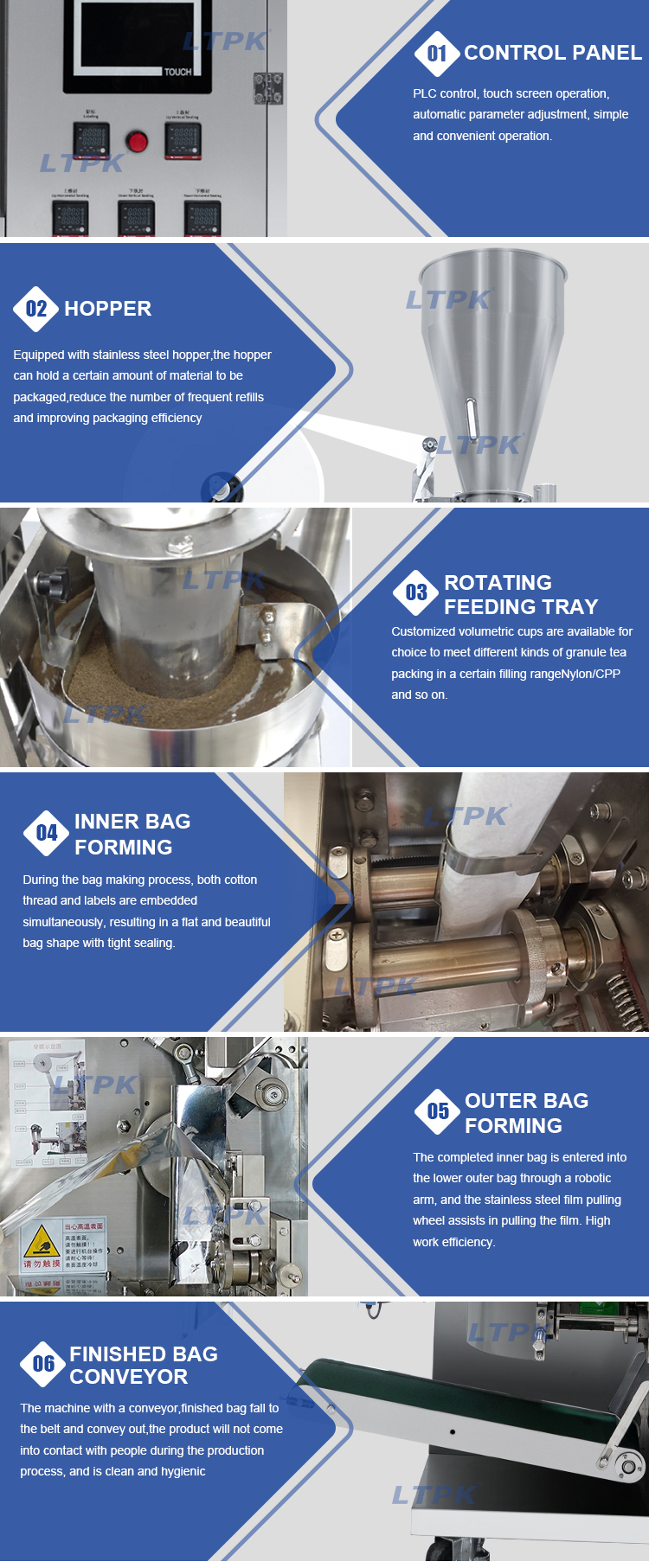

This machine is a new type of heat sealed, multi-functional fully automatic tea bag packaging equipment. The main feature of this machine is that the inner and outer bags are formed in one go, avoiding direct contact between hands and materials and improving efficiency.Adopting PLC control, touch screen operation, automatic parameter adjustment, simple and convenient operation.
Application:

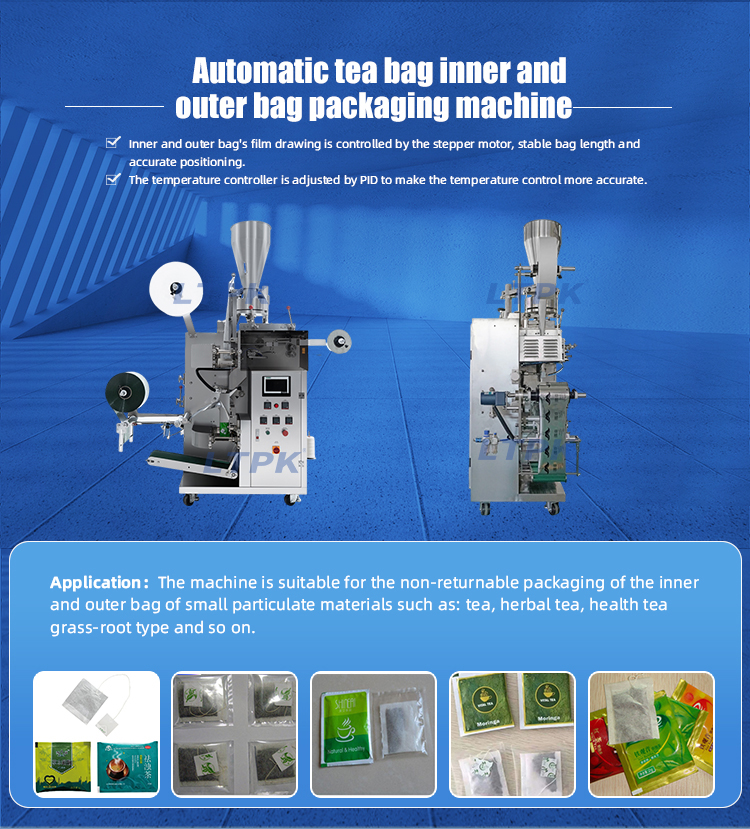

The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials such as: tea, herbal tea, health tea grass-root type and so on.
Technical parameters：
|
Model |
LT-YS169 |
|
Total power |
AC220V/ 50Hz /3KW |
|
Measuring scope |
1-10 g |
|
Inner bag size |
L:50 -70mm,W:45 -80mm |
|
Outer bag size |
L:80 -120mm,W:75 -95mm |
|
Packing speed |
30 - 50bags/min |
|
Sealing type |
Three sides sealing |
|
Gas source |
≥0.6Mpa |
|
Size |
1805*731*2065mm |
|
Weight |
550kg |
|
Optional equipment |
Coding machine |
