Description
Description:

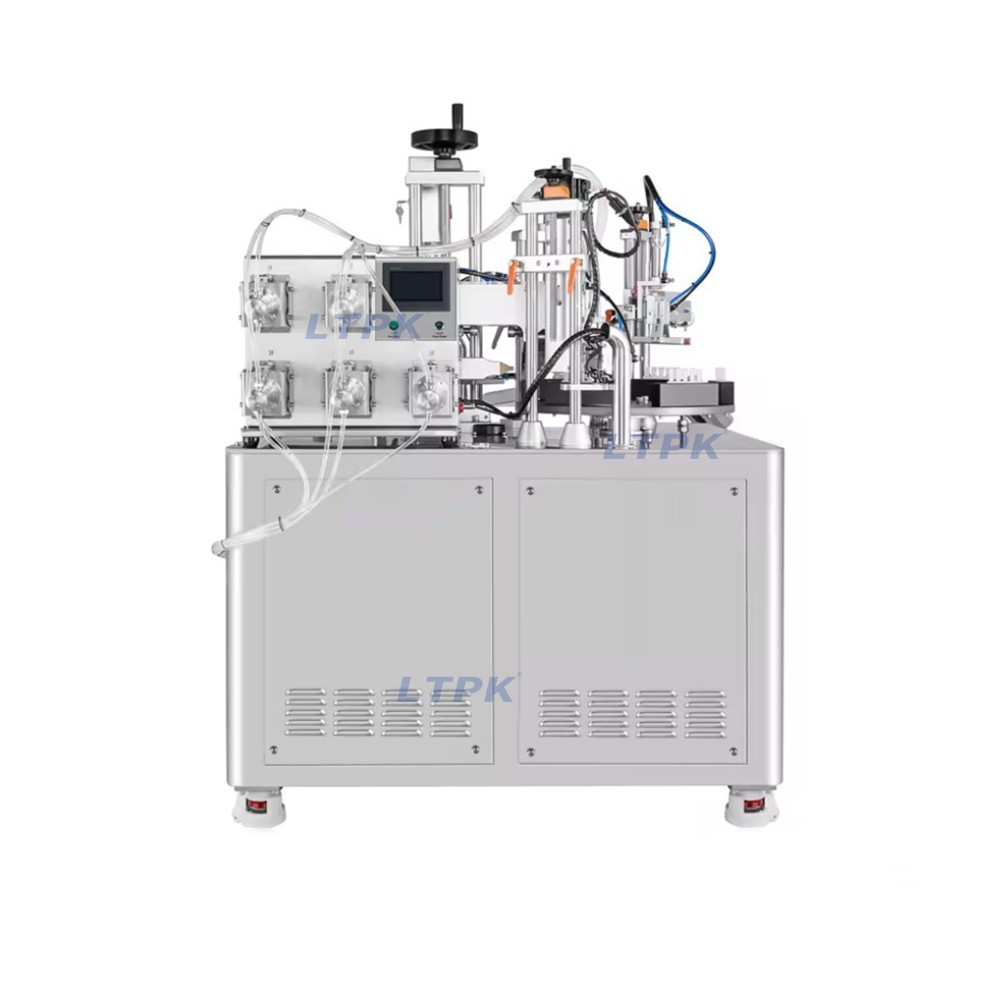

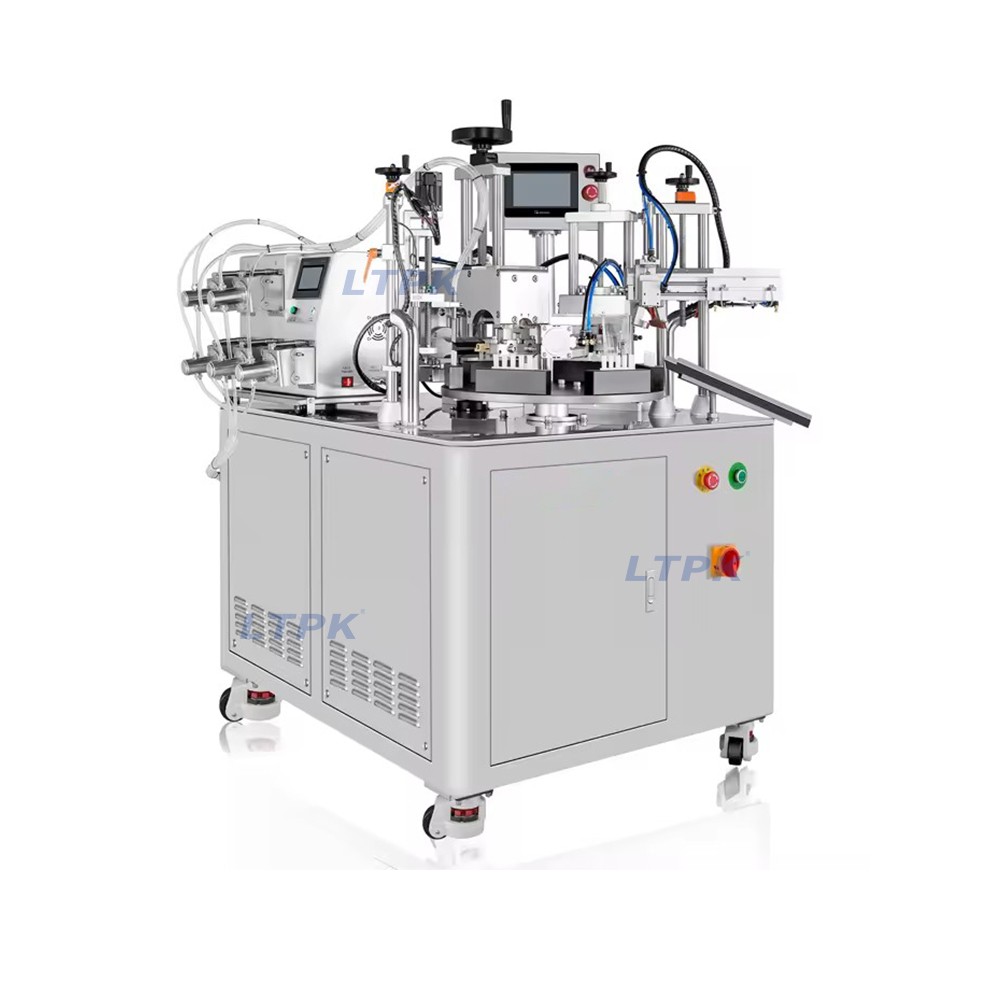

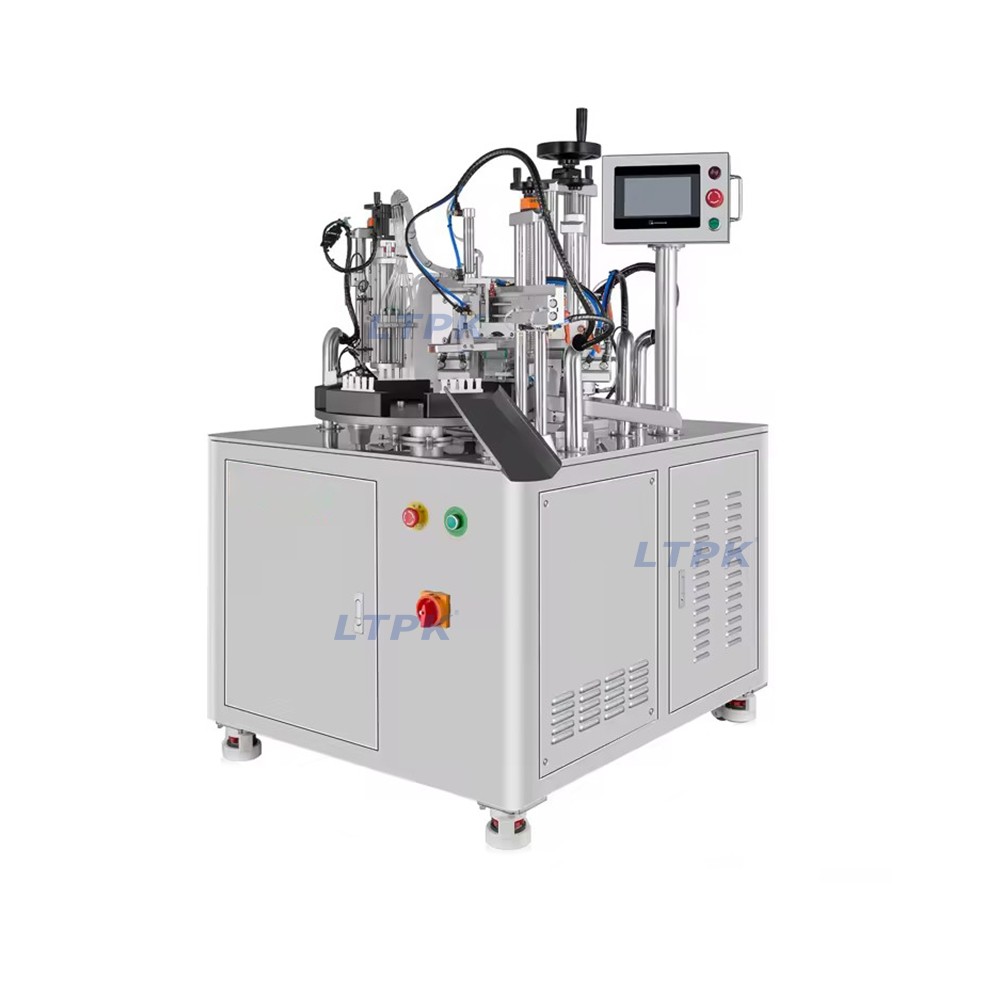

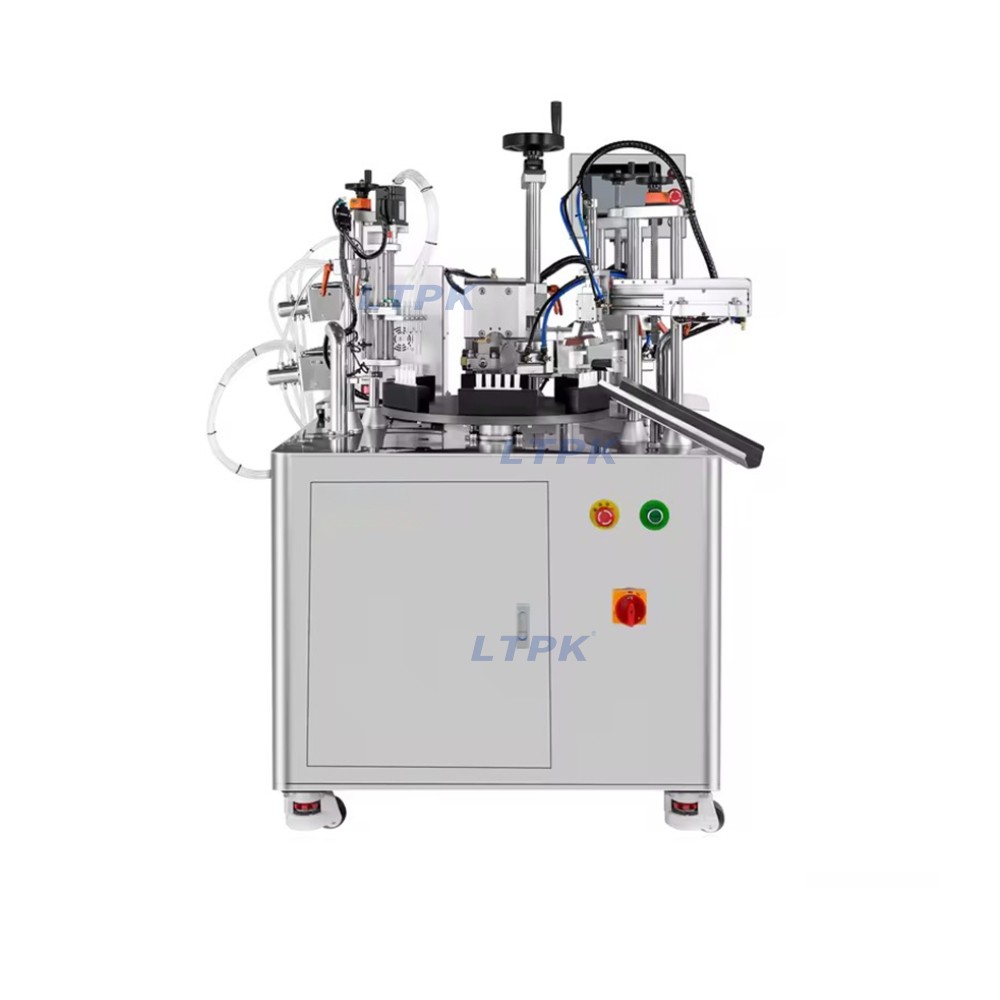

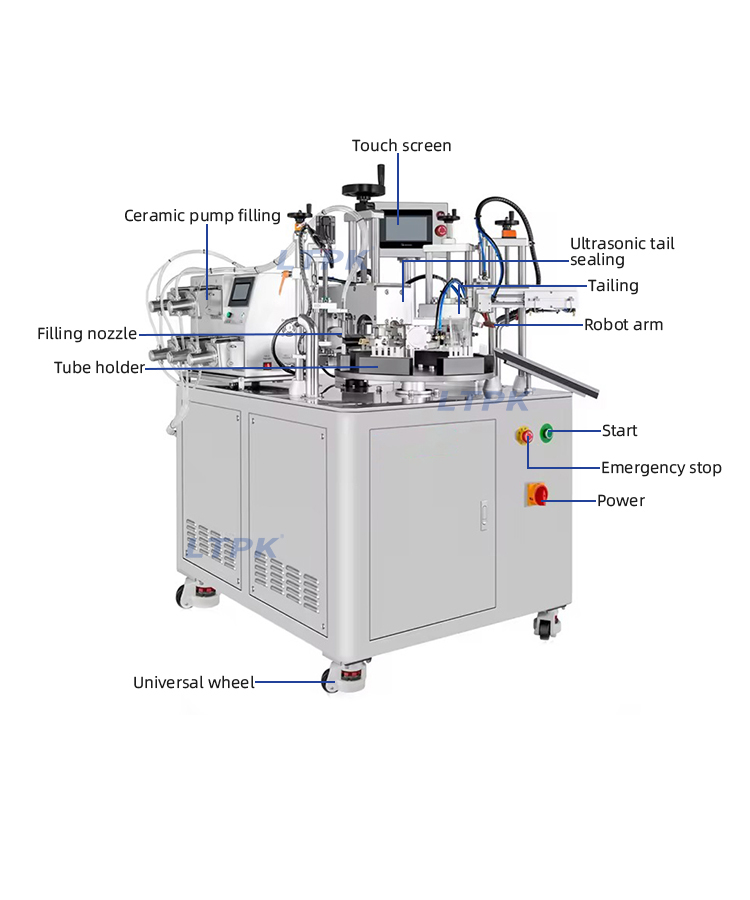

This is a high-quality liquid and paste ceramic pump filling and sealing packaging machine,this tube filling and sealing machine adopting advanced ultrasonic technology for sealing, it can be used immediately without heating or using a chiller, which is energy-saving and environmentally friendly. The welding strength is equivalent to the plastic itself, with good sealing effect, strong sealing performance, clear patterns, no deformation, and no pipe bursting.
Application:
This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc
Parameter:
|
Model |
LT-005 |
|
Voltage |
220/110V |
|
Power |
2.2KW |
|
Frequency |
20kHZ |
|
Workstation |
six station |
|
Sealing speed |
10-15pcs/min |
|
Tube height |
50-120mm |
|
Sealing length |
Max 140mm |
|
Filling equipment |

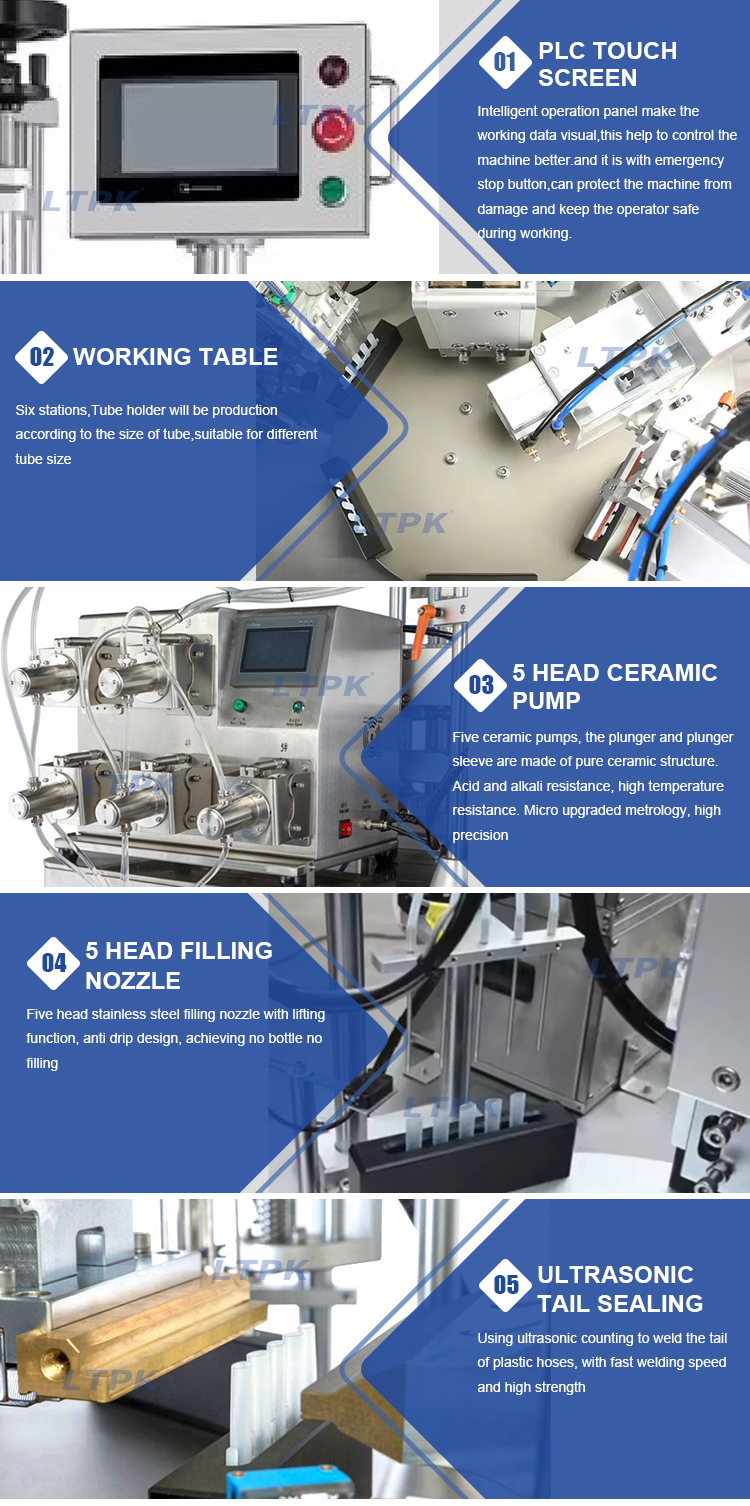

5 head ceramic valve free plunger pump (liquid) 5head ceramic rotary valve plunger pump (paste) |
|
Filling range |
0.3-10ml(liquid)/1-10ml(paste) |
|
Applicable tube types |
connecting tube,secondary throwing tube |
|
Applicable tube material |
Plastic composite tube, aluminum-plastic tube |
|
Air pressure |
0.5-0.6MPa |
|
Air consumption |
0.35m³/min |
|
Size |
1300*1010*1550mm |
|
Weight |
350kg |
