Description
Description：

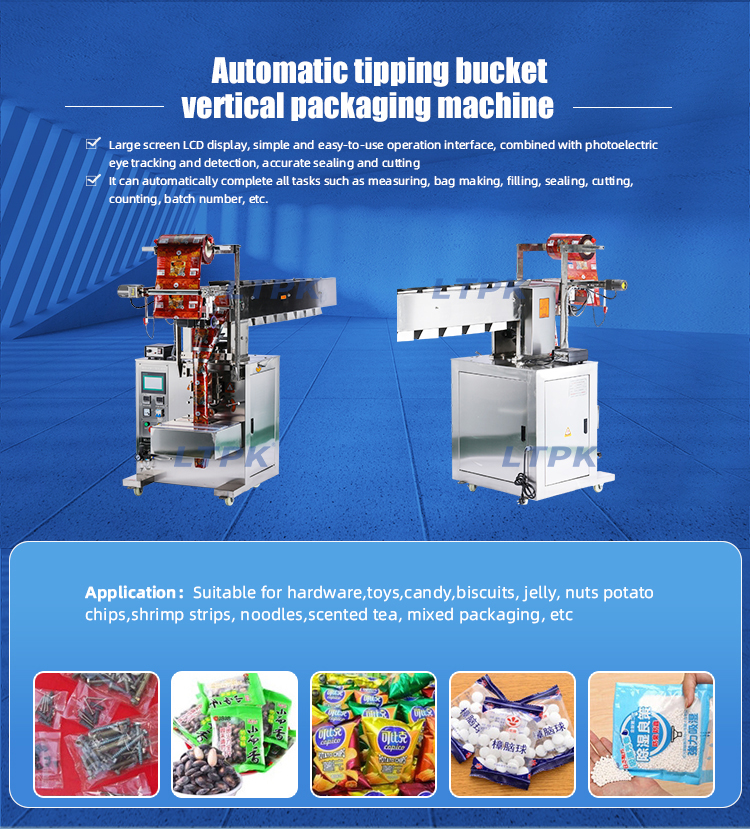

his machine integrates mechanics and electronics, with a dual CPU microcomputer control system and full Chinese display. It adopts a microcomputer controlled photoelectric tracking correction system and is equipped with a high-precision stepper motor to accurately locate the same position of each packaging bag pattern. The control system completes the synchronization, fixed length, positioning, and speed of the whole machine. The CNC cutter 2-99 bags can be adjusted for automatic counting and cutting, and can automatically diagnose faults. Optional installation of coding machine and inflation device.
Application:
Suitable for hardware,toys,candy,biscuits, jelly, nuts potato chips,shrimp strips, noodles,scented tea, mixed packaging, etc
Technical parameters：
|
Model |
LT-320FD |
|
Voltage |
220V |
|
Power |
1.2KW |
|
Packing type |
Back sided sealing (optional three side sealing or four sided sealing) |
|
Packing speed |
20-60bags/min |
|
Bag length |
50-180mm |
|
Bag width |
40-140mm(Need to replace the bag former) |
|
Measuring range |
Manual feeding |
|
Machine weight |
300kg |
|
Machine size |
650*1600*1600 |
