Description
Description：
This machine adopts the touch screen operation, PLC control, servo motor to control the bag length,fast speed,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
Application:

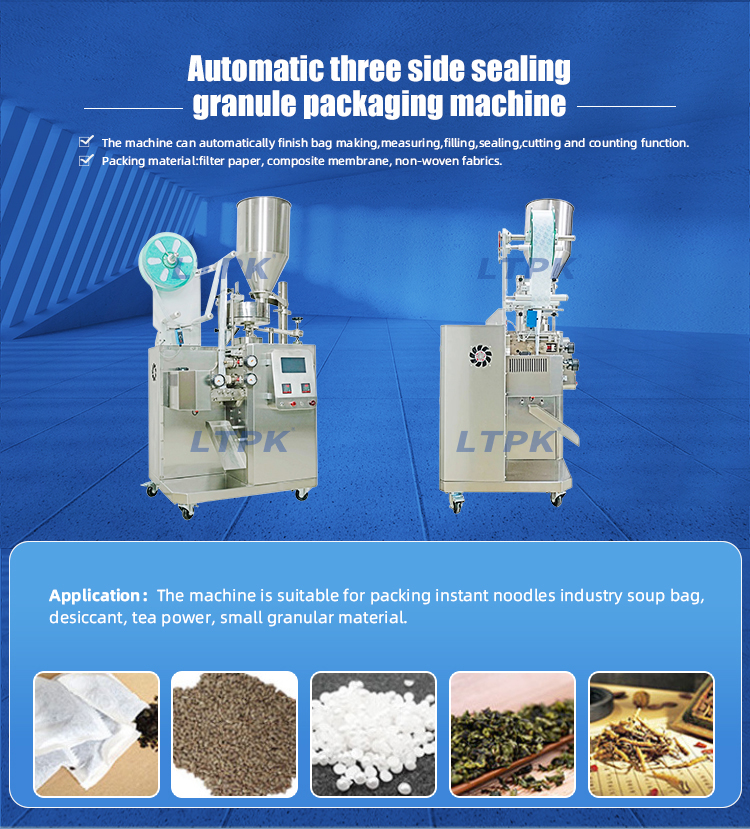

The machine is suitable for packing instant noodles industry soup bag, desiccant, tea power, small granular material.
Technical parameters：
|
Model |
LT-YS40XAK |
|
Voltage |
220V |
|
Power |
1.5KW |
|
Packing type |
Three side sealing |
|
Packing speed |
30-100bags/min |
|
Bag length |
40-110mm |
|
Bag width |
30-80mm(Need to replace the bag former) |
|
Filling range |
10-40g |
|
Machine weight |
350kg |
|
Machine size |
849*646*1710mm |
