Description
Description:

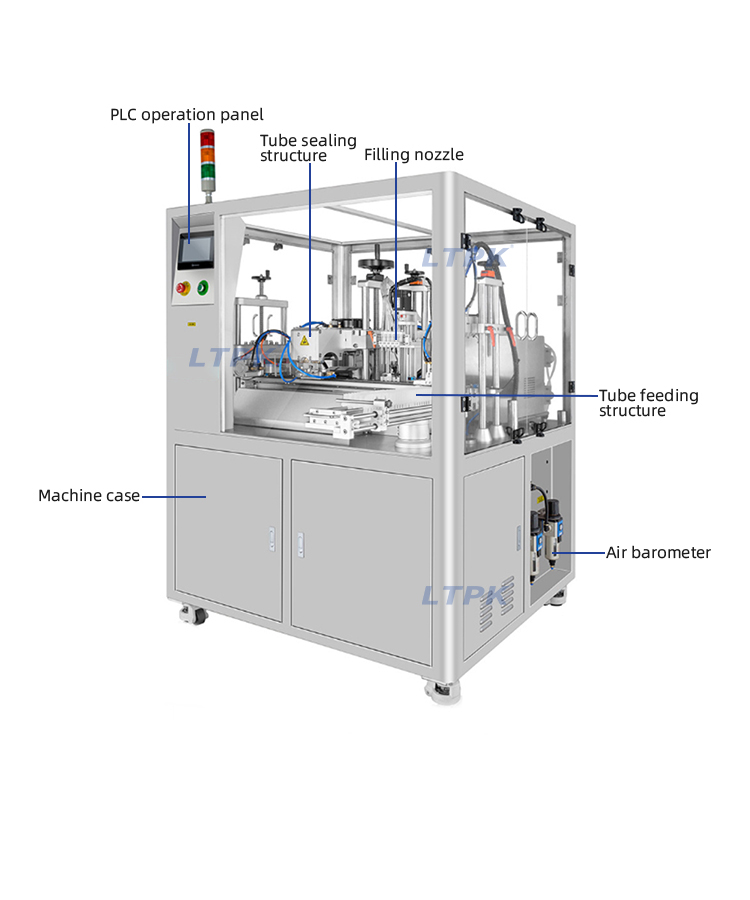

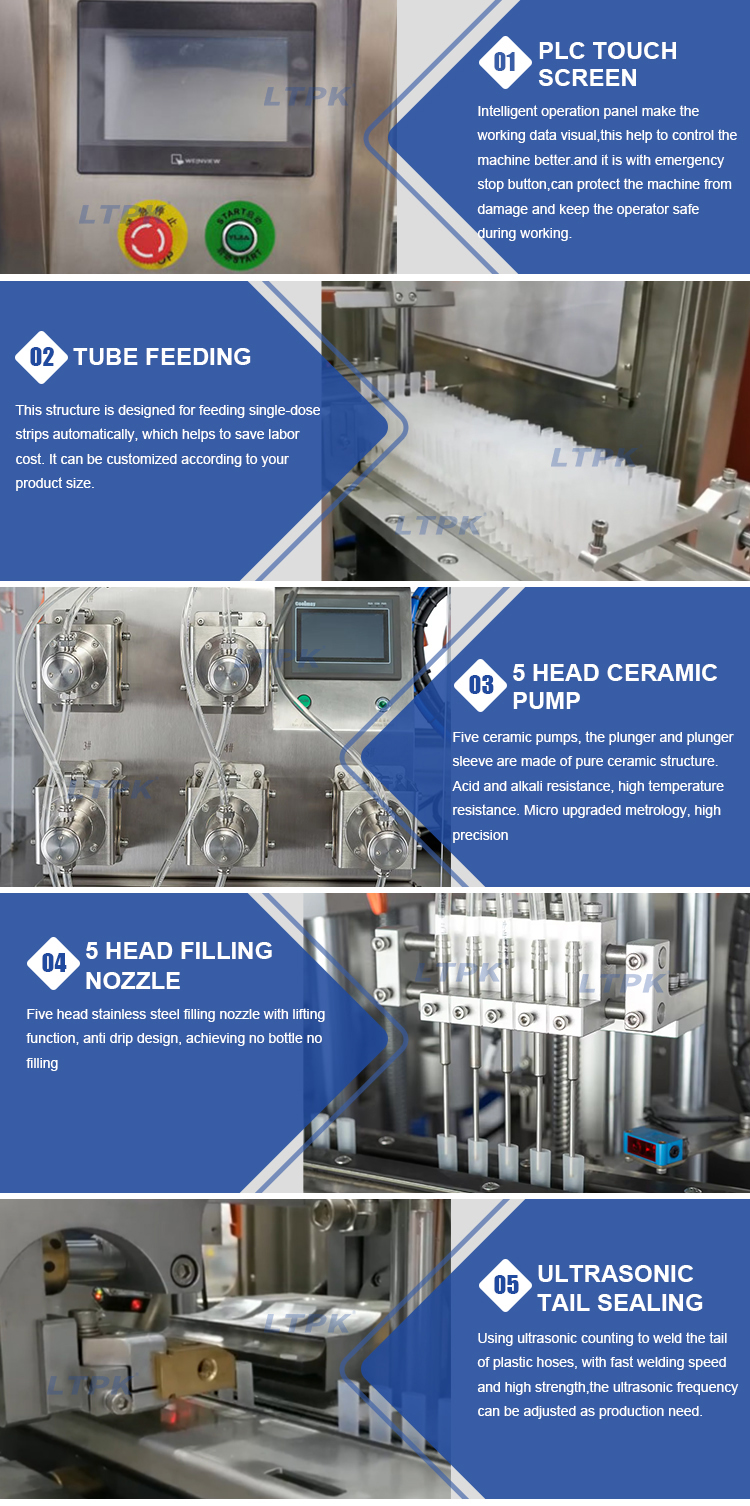

This ultrasonic tail sealing machine is suitable for high-precision filling, sealing, and repairing of connecting tube.Utilizing Taiwanese technology cam indexing mechanism to drive a rotating disc with fixtures for intermittent motion, achieving high-precision filling and a series of functions such as ultrasonic sealing, coding, and edge cutting. Accurate filling measurement, stable and adjustable working time, beautiful, neat, firm, and hygienic sealing appearance

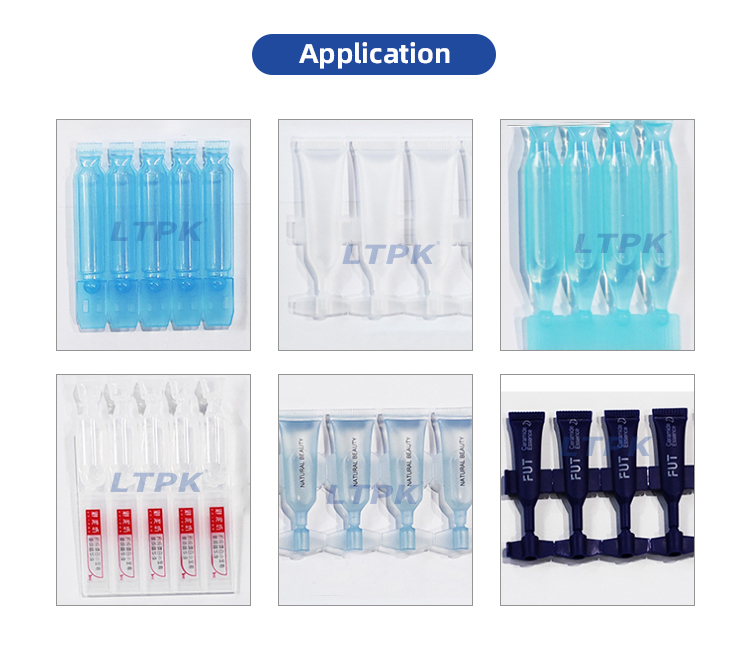

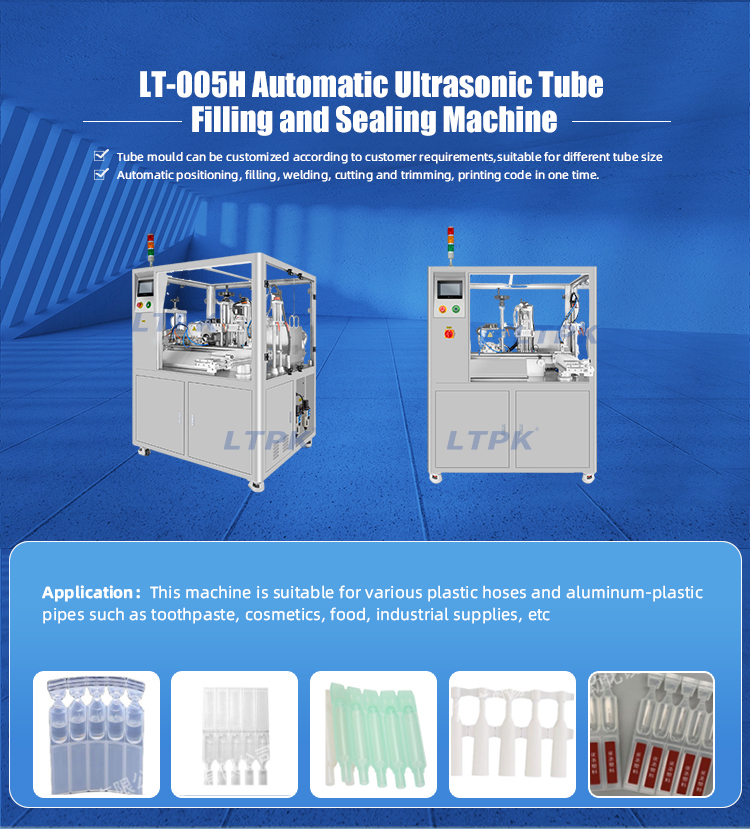

Application:
This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc
Parameter:
|
Model |
LT-005H |
|
Voltage |
220/110V |
|
Power |
2.6KW |
|
Frequency |
20kHZ |
|
Workstation |
six station |
|
Sealing speed |
15-20pcs/min |
|
Tube height |
50-120mm |
|
Sealing length |
Max 140mm |
|
Filling equipment |
5 head ceramic valve free plunger pump (liquid) 5head ceramic rotary valve plunger pump (paste) |
|
Filling range |
0.3-10ml(liquid)/1-10ml(paste) |
|
Applicable tube types |
connecting tube |
|
Applicable tube material |
Plastic composite tube, aluminum-plastic tube |
|
Air pressure |
0.5-0.6MPa |
|
Air consumption |
0.38m³/min |
|

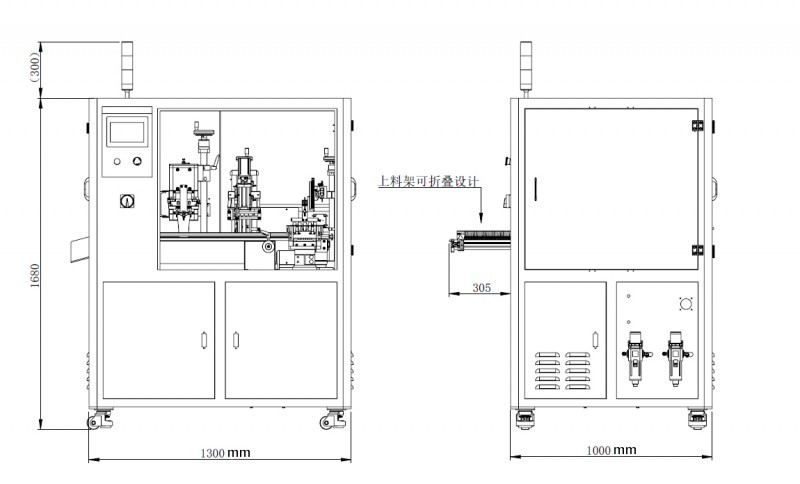

Size |
1300*1300*1950mm |
|
Weight |
500kg |
