  • Automatic vertical 4 nozzles magnetic pump liquid filling machine
  • Automatic vertical 4 nozzles magnetic pump liquid filling machine
  • Automatic vertical 4 nozzles magnetic pump liquid filling machine
  • Automatic vertical 4 nozzles magnetic pump liquid filling machine
Automatic vertical 4 nozzles magnetic pump liquid filling machine Automatic vertical 4 nozzles magnetic pump liquid filling machine Automatic vertical 4 nozzles magnetic pump liquid filling machine Automatic vertical 4 nozzles magnetic pump liquid filling machine

Automatic vertical 4 nozzles magnetic pump liquid filling machine

Inquiry Send Email

Description

Description:

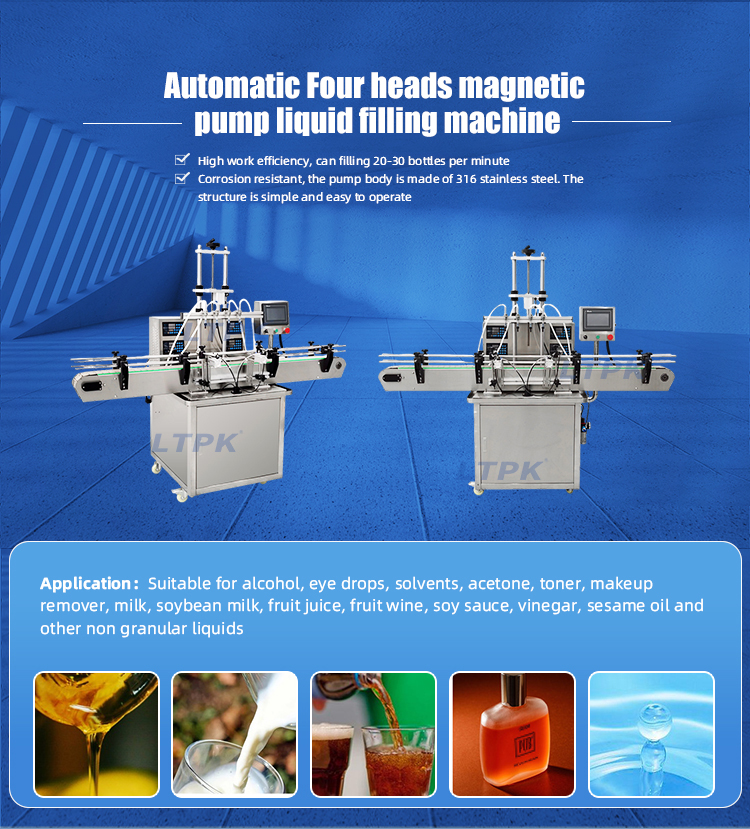

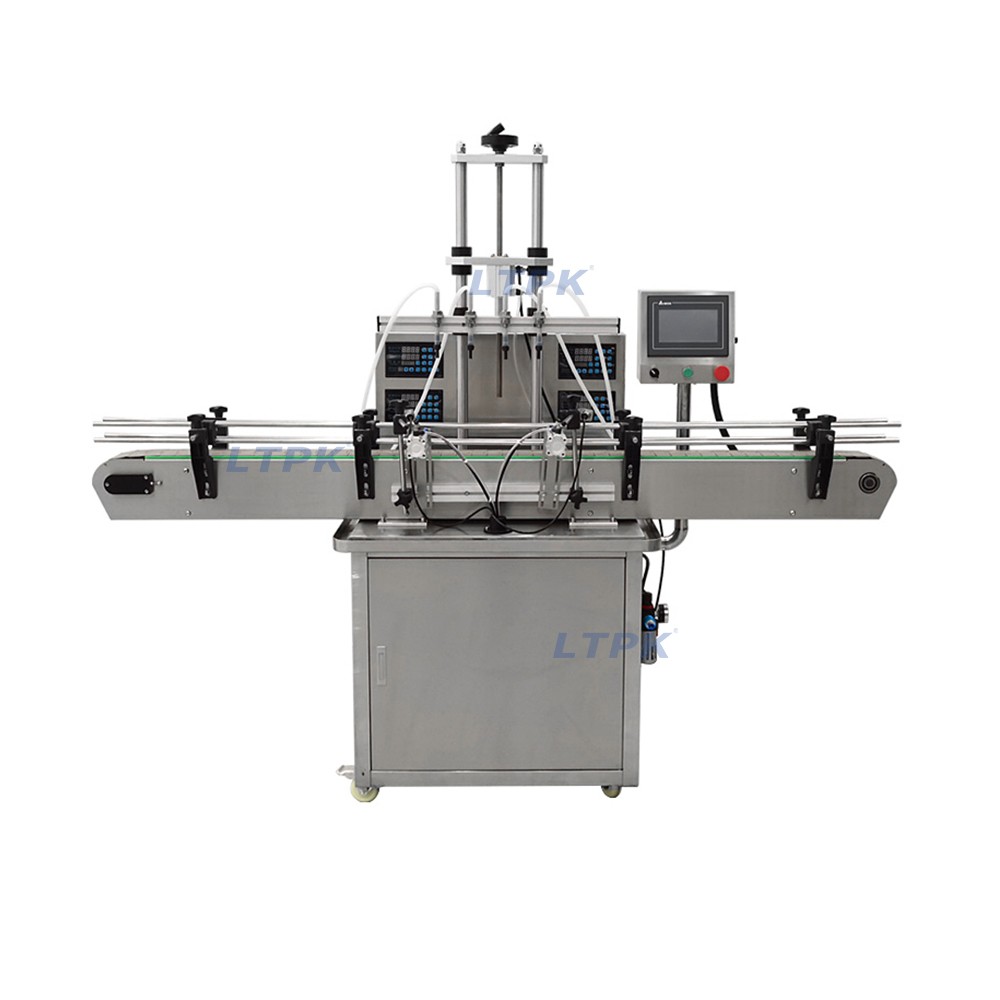

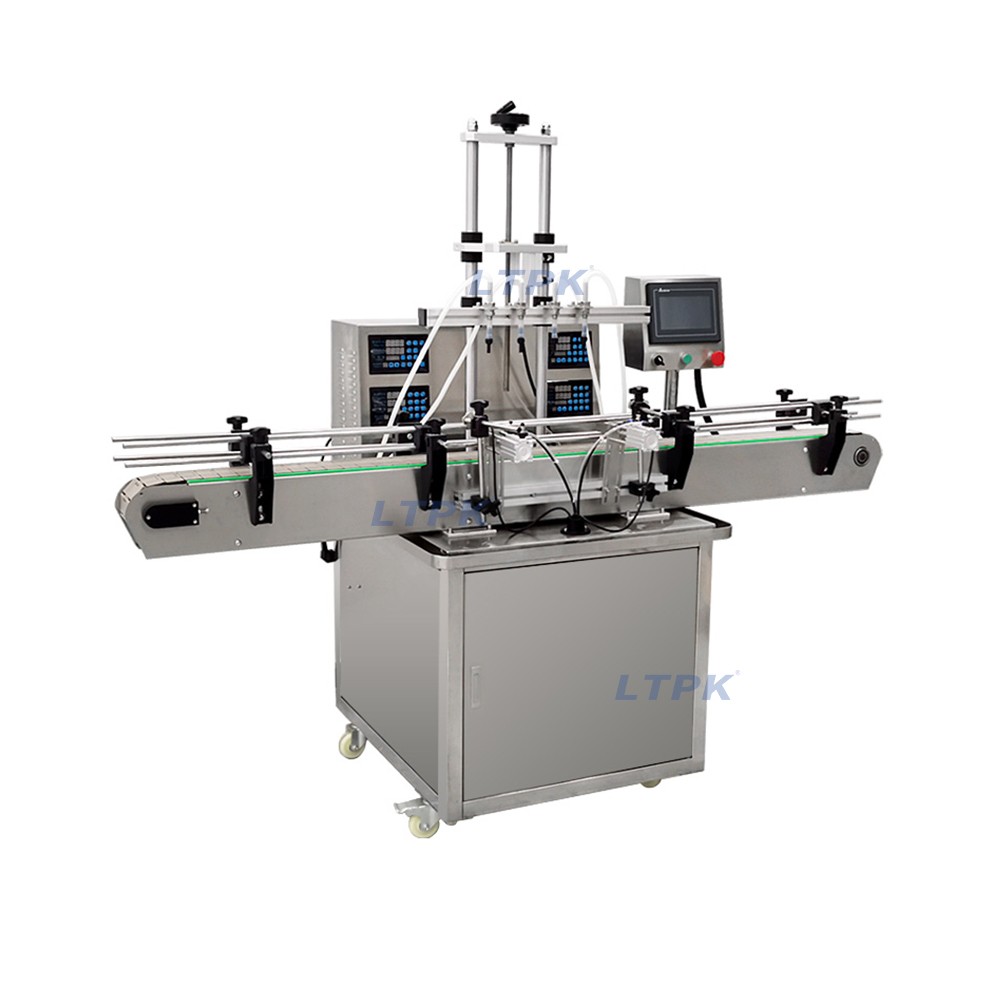

This automatic liquid filling machine is equipped with a magnetic pump for higher precision, intelligent operation, and high-speed filling. The filling nozzle can be customized according to customer requirements. Suitable for filling various liquids, with a wide range of applications.





Application:

Suitable for alcohol, eye drops, solvents, acetone, toner, makeup remover, milk, soybean milk, fruit juice, fruit wine, soy sauce, vinegar, sesame oil and other non granular liquids





Model

LT-VMPF4

Voltage

220/110V

Power

920W

Filling flow rate

3.2L/min

Filling speed

10-30bottles/min

Filling range

5-3000ml

Accuracy

±1%

Filling pressure

0.5-0.7Mpa

Filling head

2, 4, 6, 8 (customizable)

Air consumption

0.3-0.8³/min

Machine Size

200*85*150cm

Machine Weight

240kg
