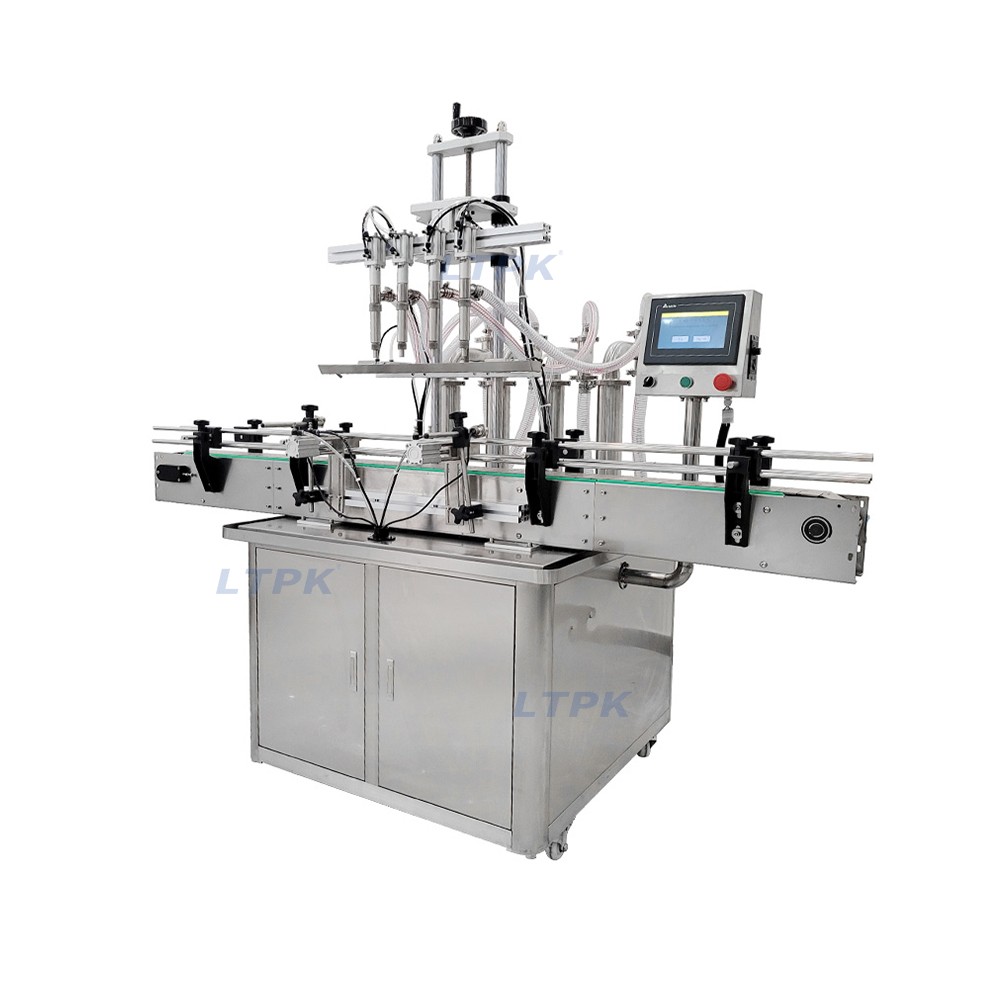

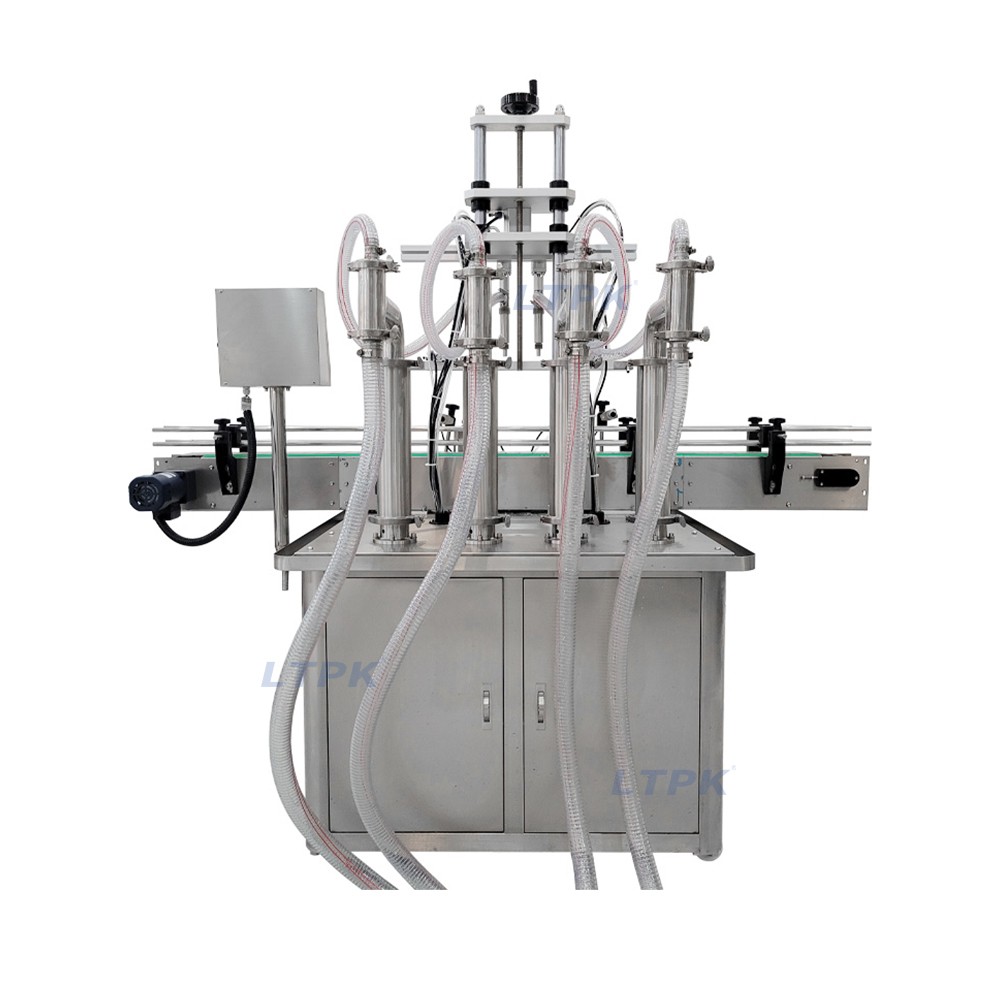

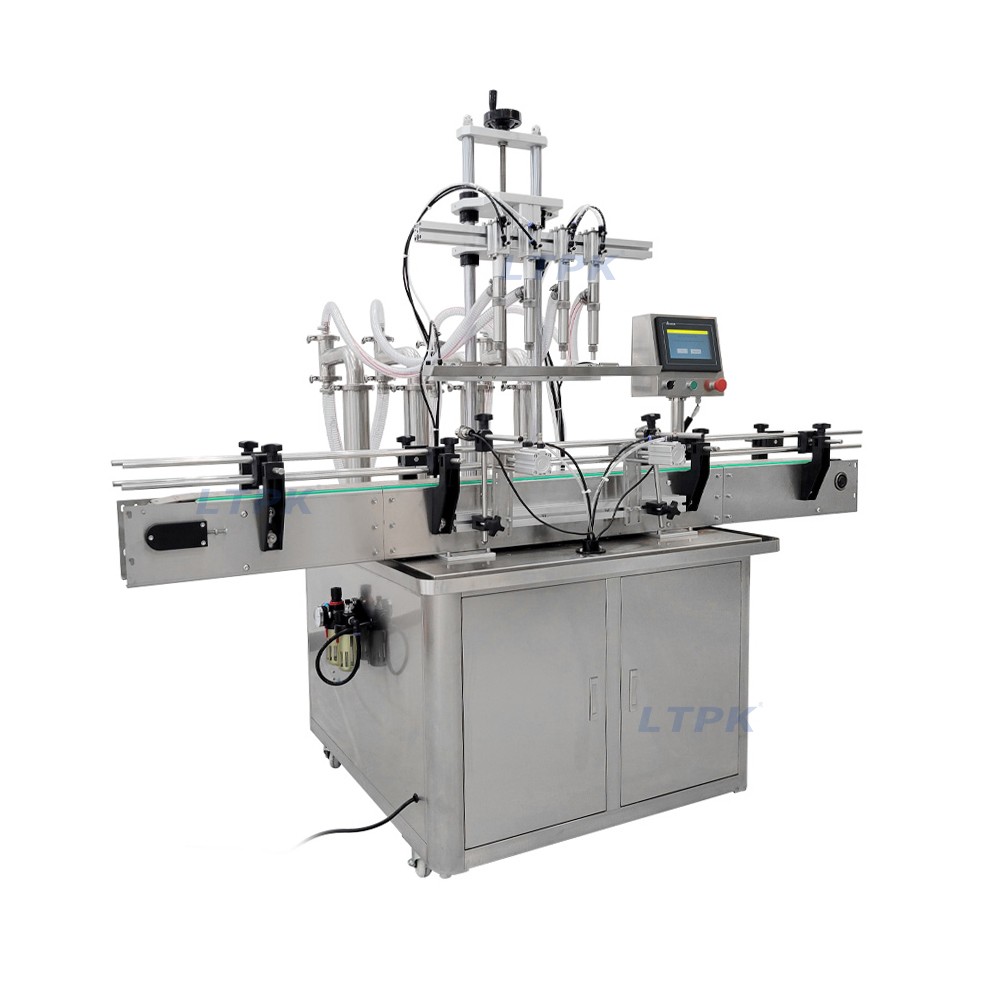

  • Automatic 4 nozzles liquid filling machine
  • Automatic 4 nozzles liquid filling machine
  • Automatic 4 nozzles liquid filling machine
  • Automatic 4 nozzles liquid filling machine
Automatic 4 nozzles liquid filling machine Automatic 4 nozzles liquid filling machine Automatic 4 nozzles liquid filling machine Automatic 4 nozzles liquid filling machine

Automatic 4 nozzles liquid filling machine

Inquiry Send Email

Description



Description:

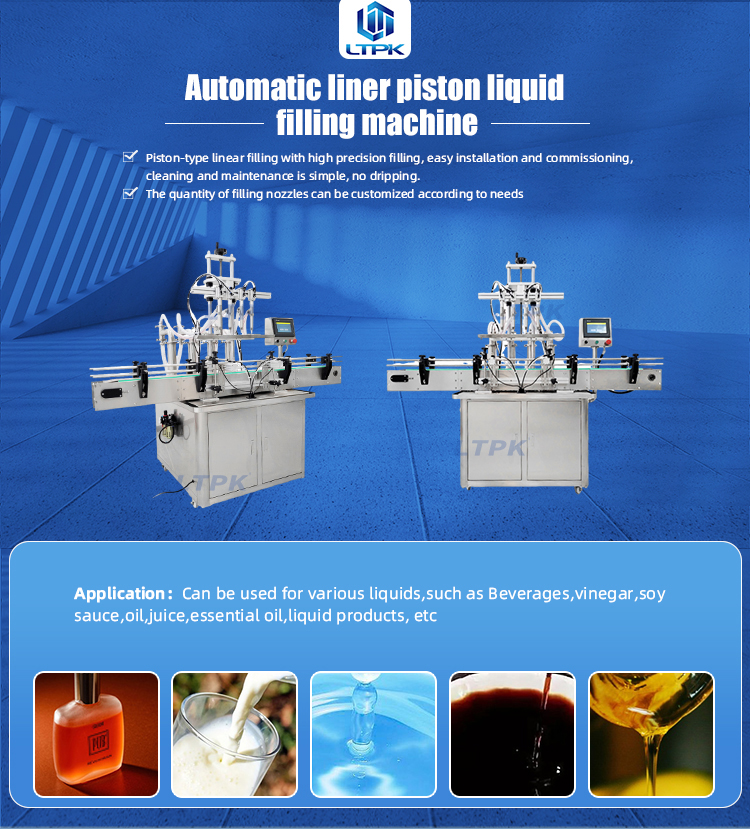

LT-QZDY2/4/6/8 automatic liquid filling machine is a machine produced by our company. It has compact design, beautiful appearance, wide application field, and it worked with imported parts, so that the the machine has a good performance. Piston-type linear filling with high precision filling, easy installation and commissioning, cleaning and maintenance is simple, no dripping and so on.Each nozzles can be controlled separately. It is widely used in food, beverage industries.

Application:

Can be used for various liquids,such as Beverages,vinegar,soy sauce,oil,juice,essential oil,liquid products, etc



Model

LT-QZDY2

LT-QZDY4

LT-QZDY6

LT-QZDY8

Voltage

220V/110V 50-60HZ 800W

Filling Range

10-100ml/30-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml

Working Speed (base on water)

10-40bottles/min

20-50bottles/min

30-70bottles/min

40-80bottles/min

Filling Accuracy

≤+1%

Conveyor Size

About 1990*100mm(L*W)

Size of filling nozzle

φ10mm

Size of air compressor connector

φ10mm

Machine size

About 1990*950*1970mm(4 Heads)

Package weight

220kg

260kg

300kg

500kg

Package size(mm)

2000*1200*2300

2000*1200*2300

2500*1300*2300

2800*1300*2500

Inquiry Us
