Description
Description

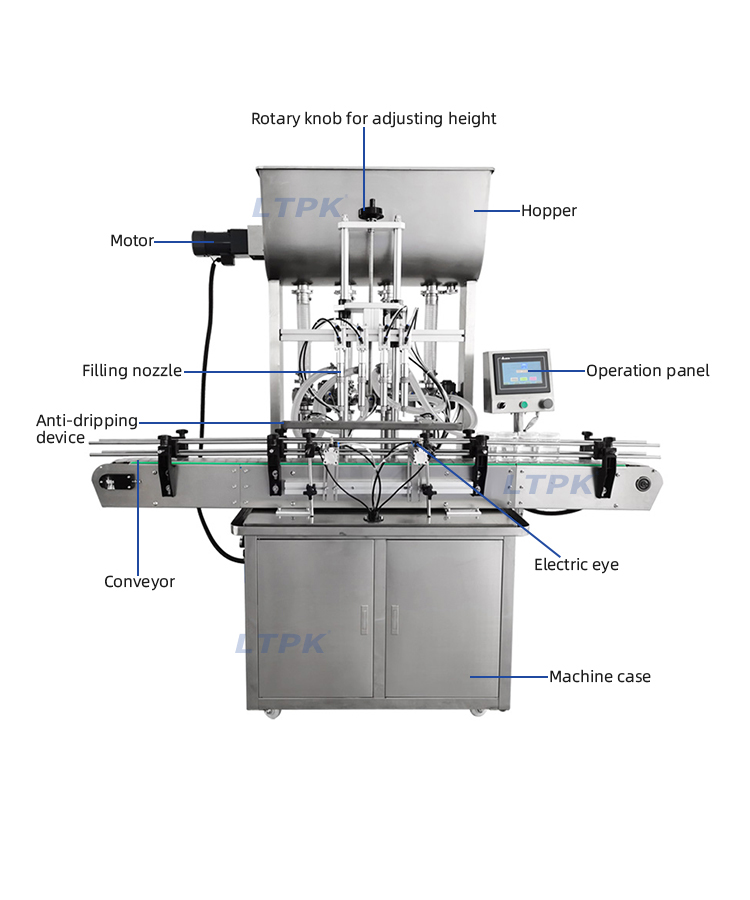

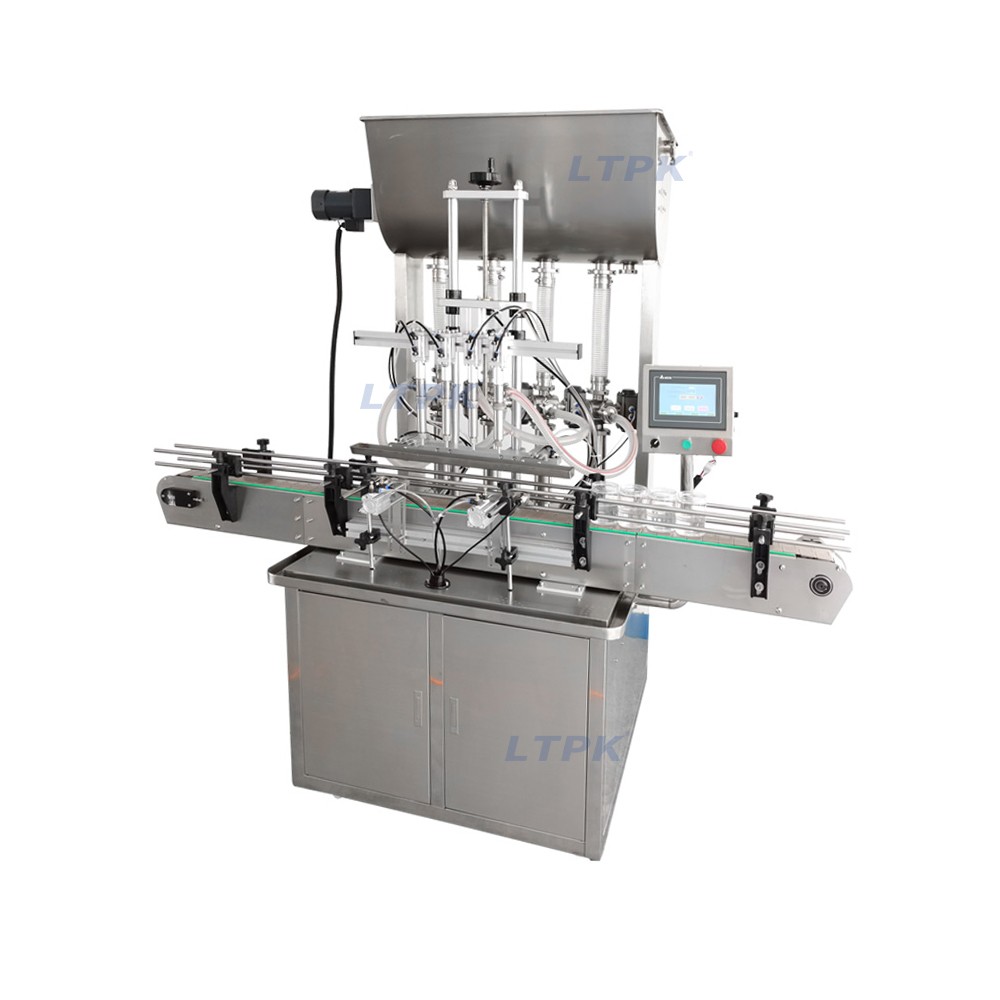

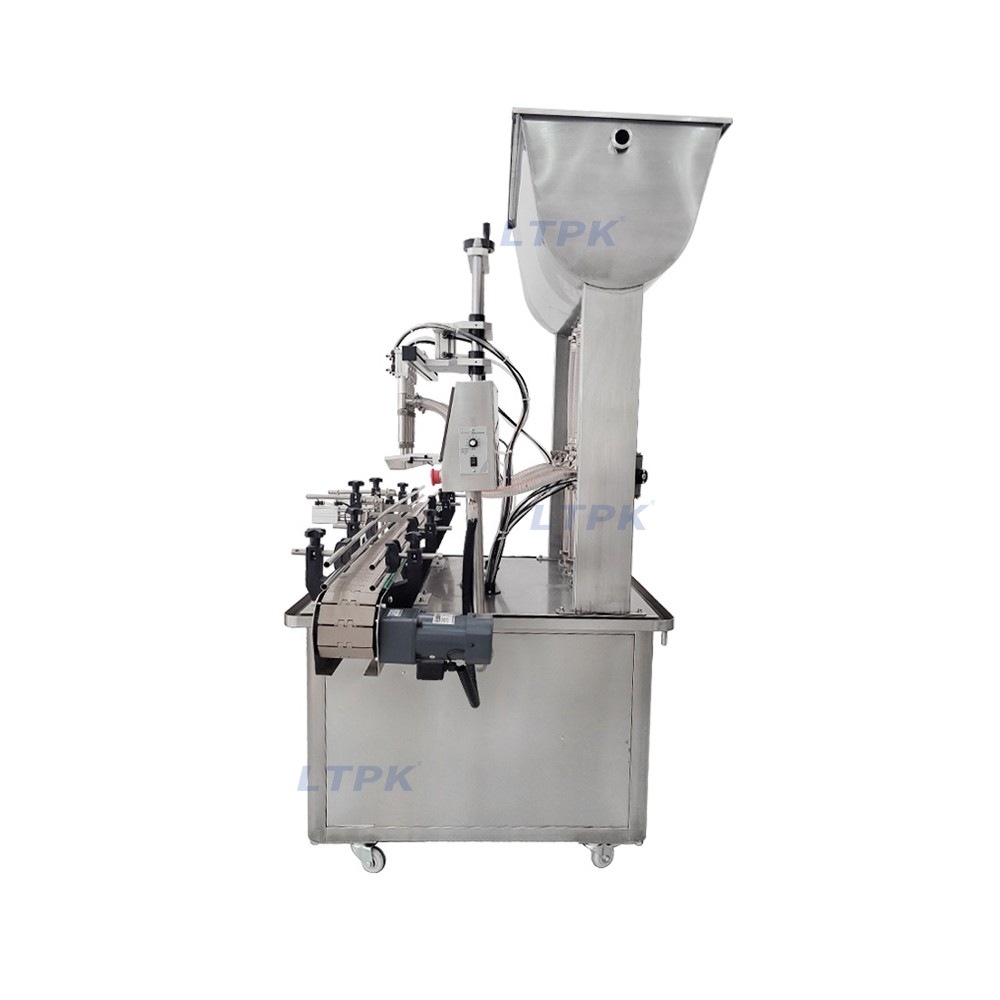

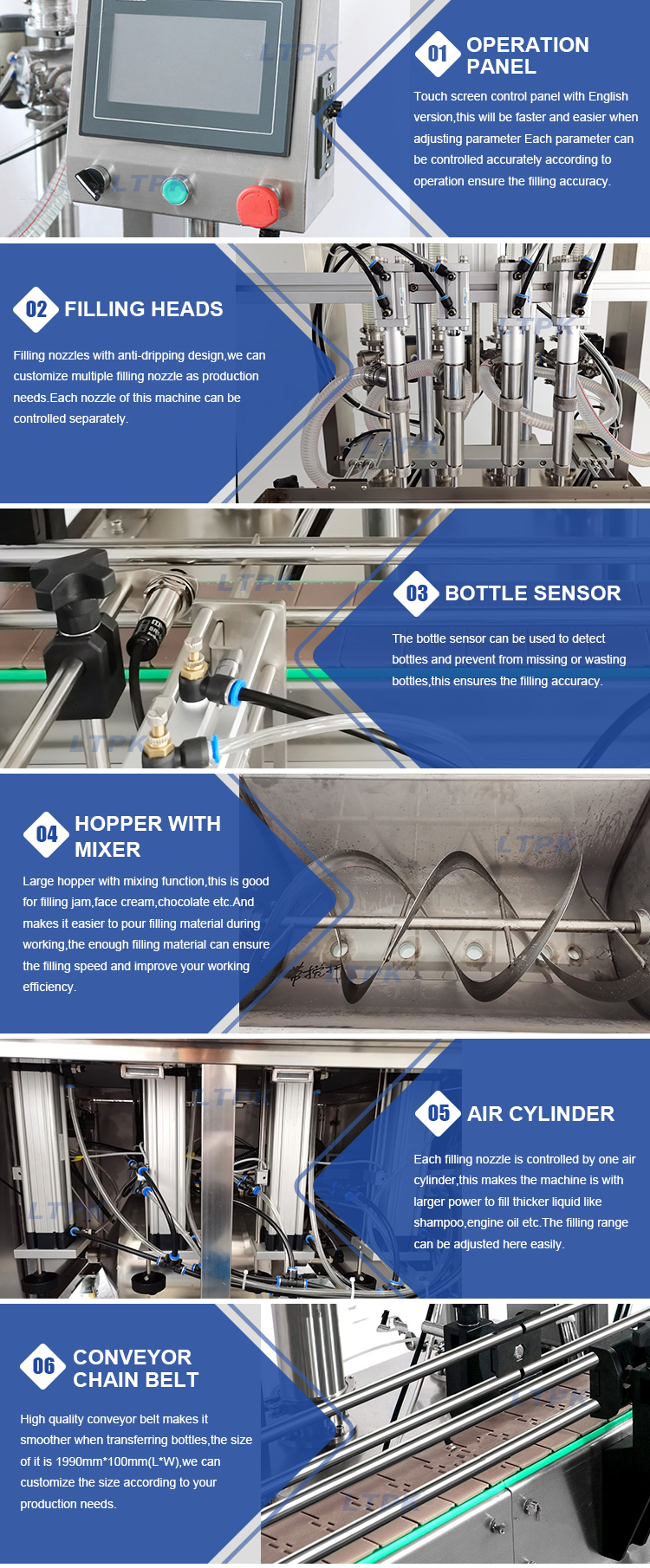

This automatic paste filling machine can fill a series of thick liquid or paste into bottles, which is driven by a piston and turning the cylinder valve,can use the magnetic reed switch to control cylinder stroke, and then the operator can adjust the filling amount. This machine is designed with mixing and heating function,and it can feed filling material automatically.
Application：
It is widely used in the filling of various semi-fluids, pastes, viscous bodies, sauces and various granule-containing materials, such as pulp-containing beverages, honey, jams, ketchup, chili sauce, bean paste, shrimp paste, apple sauce, salad dressing, etc.
|
Model |
LT-QZDG4M |
|
Voltage |
220/110V 50/60HZ |
|
Power |
600W |
|
Filling range |
5-100m/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml |
|
Working speed(based on water) |
20-50bottles/min |
|
Heating temperature |
About 0-300℃ |
|
Mixing speed |
About 1200r/min |
|
Filling accuracy |
≤±1% |
|
Air pressure |
0.5-0.7mpa |
|
Conveyor size |
About 2000*100mm(l*w) |
|
Size of filling nozzle |
φ10mm |
|
Size of air compressor connector |
φ10mm |
|
Machine weight |
About 329kg |
|
Machine size |
About 975*1020*2010mm |
|
Package weight |
About 392kg |
|
Package size |
About 1660*1130*2130mm |
