Description
Description:

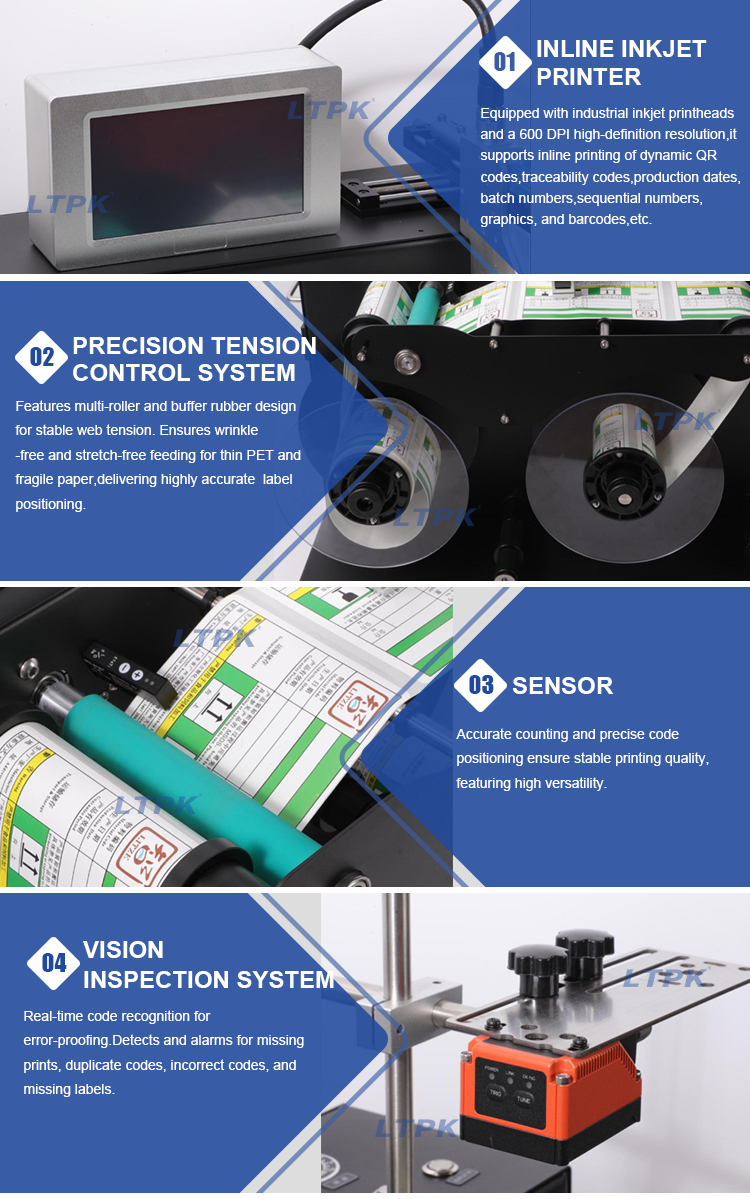

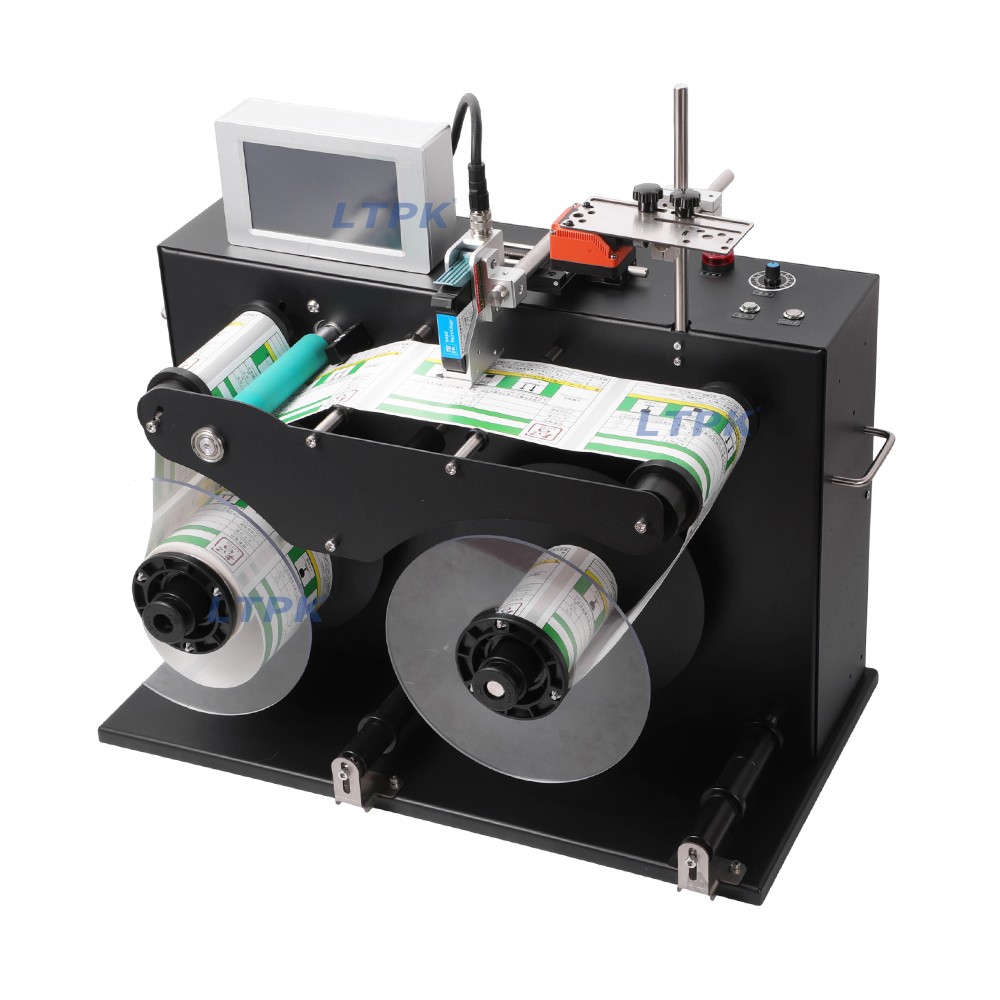

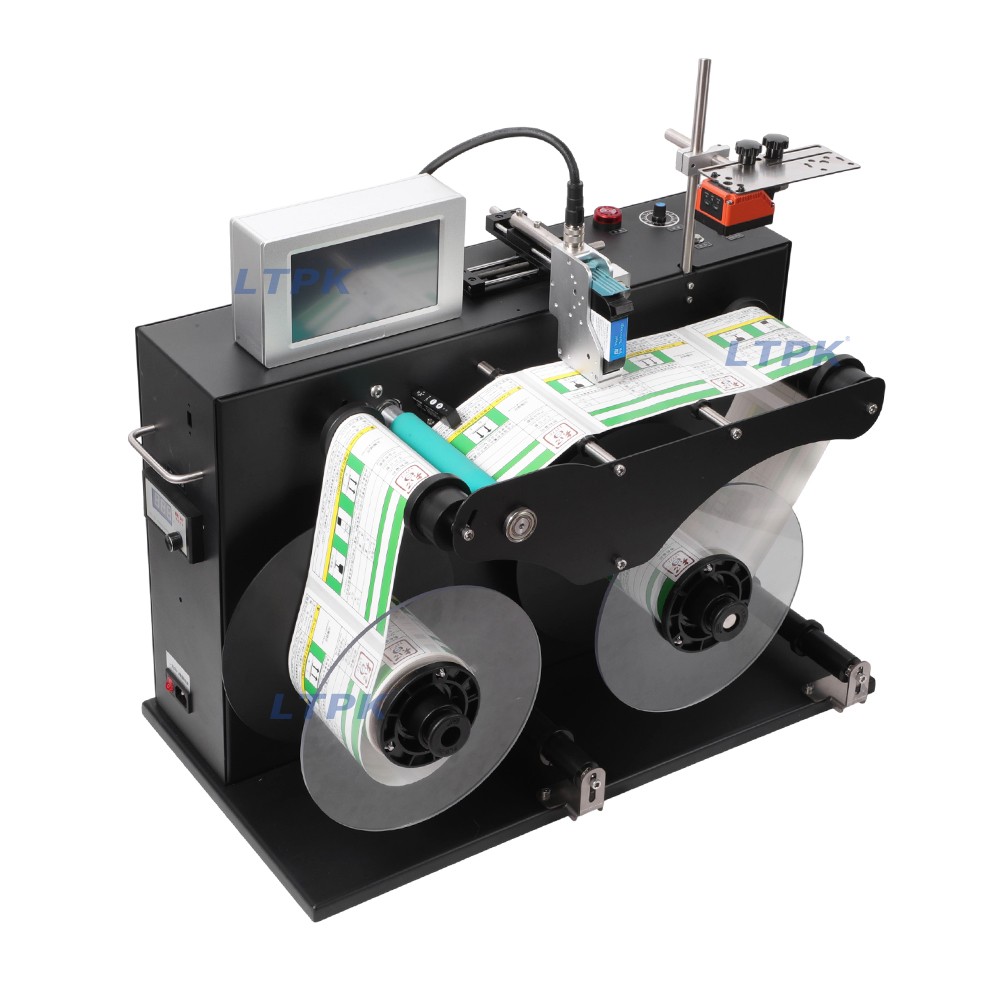

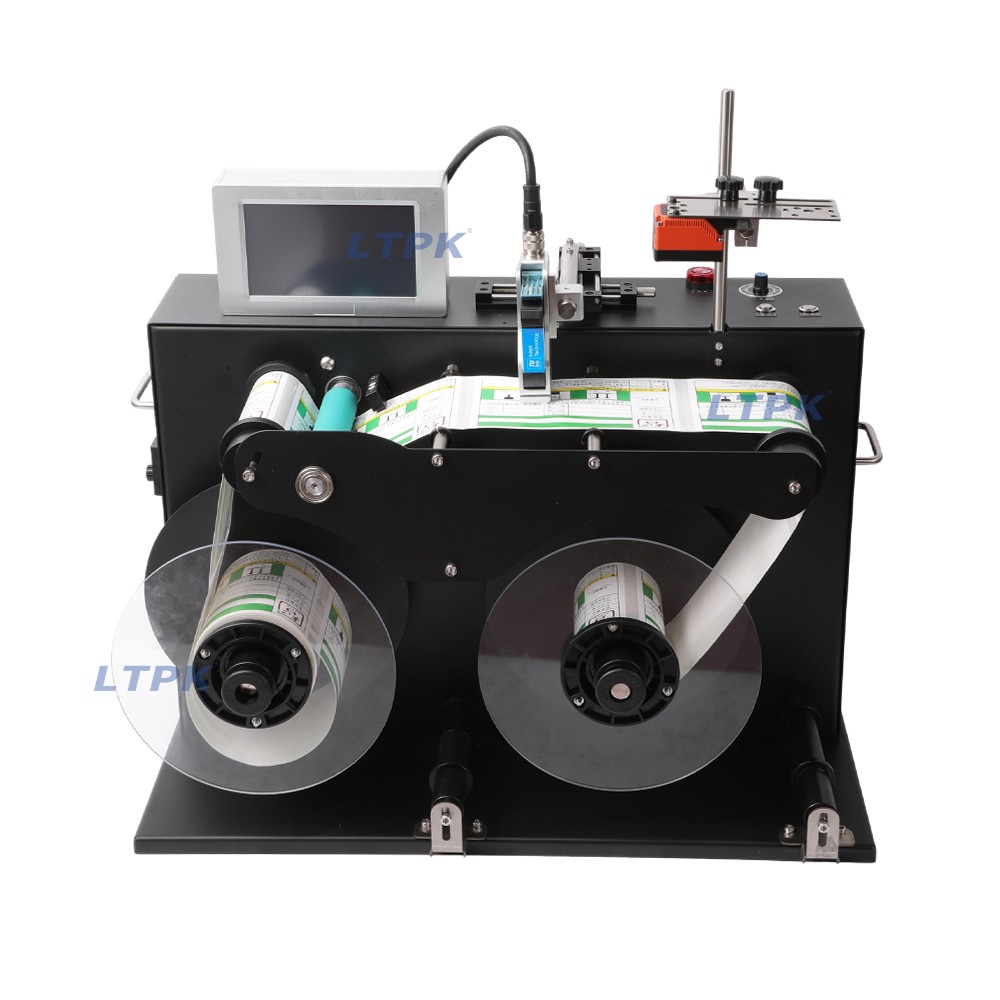

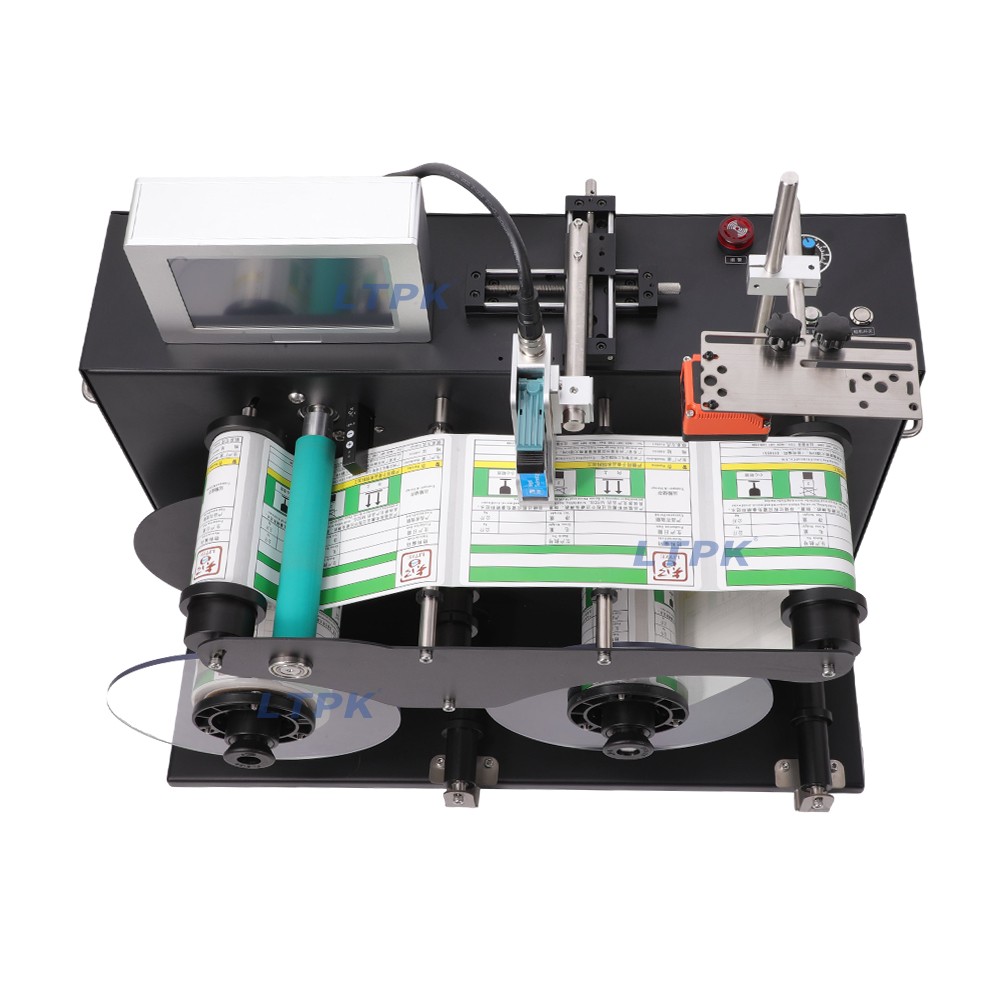

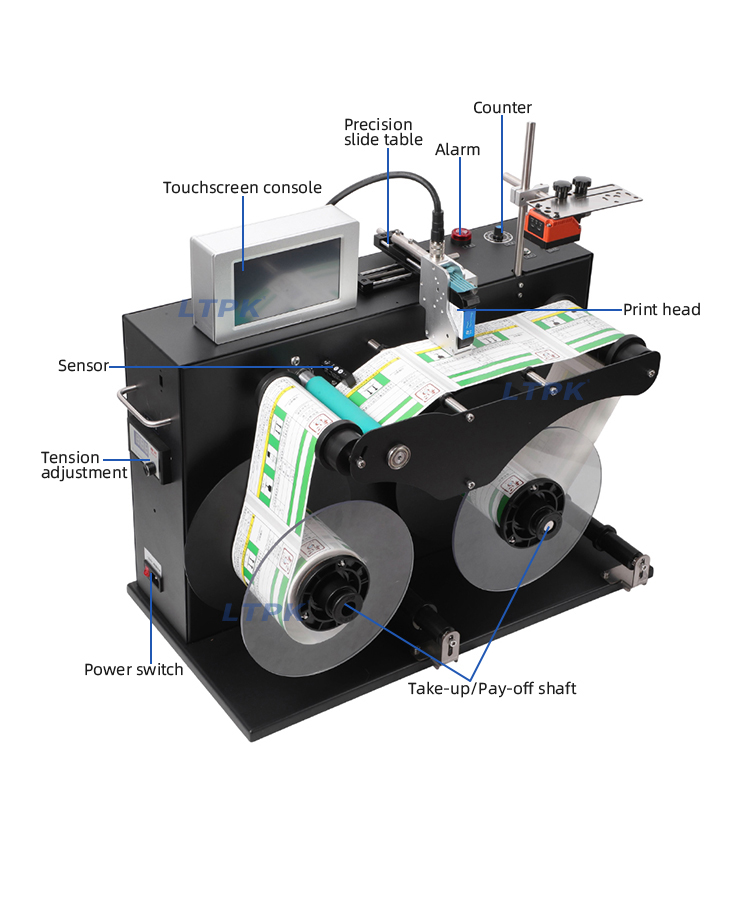

Compact 3-in-1 industrial label processing platform: inkjet coding+vision inspection +auto-rewinding,specially designed for roll-based pressure-sensitive labels, coated paper, matte silver PET, anti-counterfeiting tags, and food traceability labels. Ideal for small-to-medium batch dynamic coding, this platform replaces manual single-sheet printing with fully automated inline inkjet printing, quality inspection, and rewinding for continuous roll materials.
Application:
Compatible with various roll-to-roll adhesive labels. Supports variable data printing including QR codes, traceability & anti-counterfeiting codes,anti-diversion serial numbers,barcodes, production dates, batch numbers,expiration dates,and simple graphic logos.
|
Model |
LT-GSP160 |
|
Voltage |
220V/110V 50-60HZ |
|
Power |
35W |
|
Speed |
60m/min |
|
Disk diameter |
250mm |
|
Core range |
3inch |
|
Label width |
160mm |
|
Rewind mode |
Tensional traction-type automatic synchronization |
|
Size |
740*390*480mm |
|
Weight |
35kg |
Coding and Printing Parameters
|
Type of nozzle |
TJ2.5 hot foam spray nozzle |
|
Printing accuracy |
Resolution up to 600x600DPI(Portrait:100DPI,150DPI, 300DDPI, 600DPI; Landscape: 30-600DPI precision adjustment) |
|
Printing height |
The minimum printing height is 1mm, the printing height of a single nozzle is 12.7mm, and the maximum printing height of a dual nozzle is 25.4mm |
|
Printing speed |
60m/min |
|
Printed content |
Multilingual symbols/GS1 Data Matrix/Dynamic traceability QR code/Bar code/ Graphics/Serial number/Date/Counter/Variable database |
|
Printed material |
Cardboard/Plastic/Metal/Label Paper |
|
Type of ink |
Food grade,water-based oil-based,weak solvent solvent 42ML ink cartridge, high-capacity ink bag continuous supply system |
|
Ink color |
Black,white,red,yellow,blue,green,invisible,UV(various colors of food-grade ink) |
