Automatic Effervescent Tablet Tube Filling and Capping Machine LT-ETP

Automatic Effervescent Tablet Tube Filling and Capping Machine LT-ETP

Product Item：LT-ETP

Speed: 20-40 tubes/min

Filling Quantity: 10-20 tablets/tube

Contact Material: 316L Stainless Steel

Control: Siemens PLC + HMI

Description

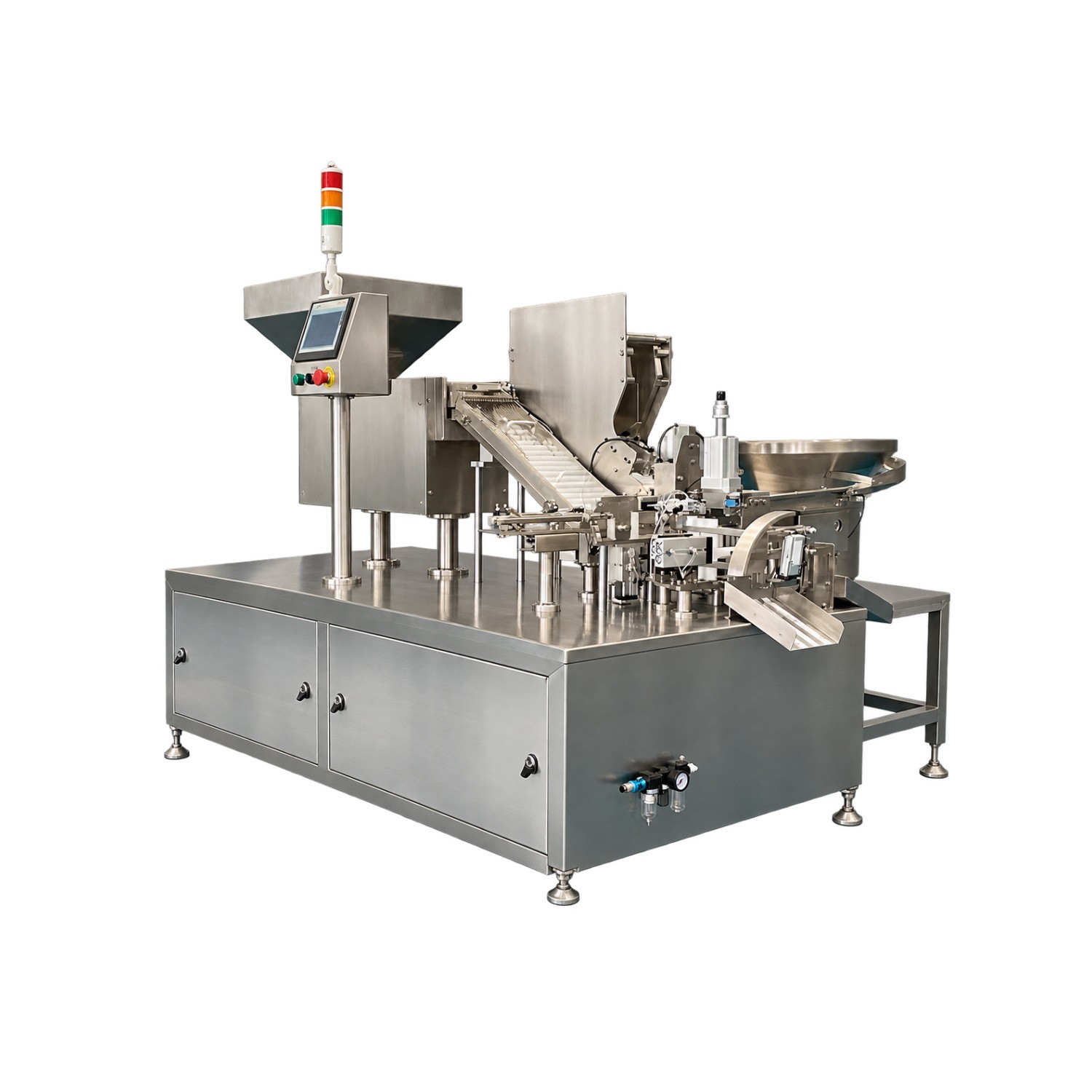

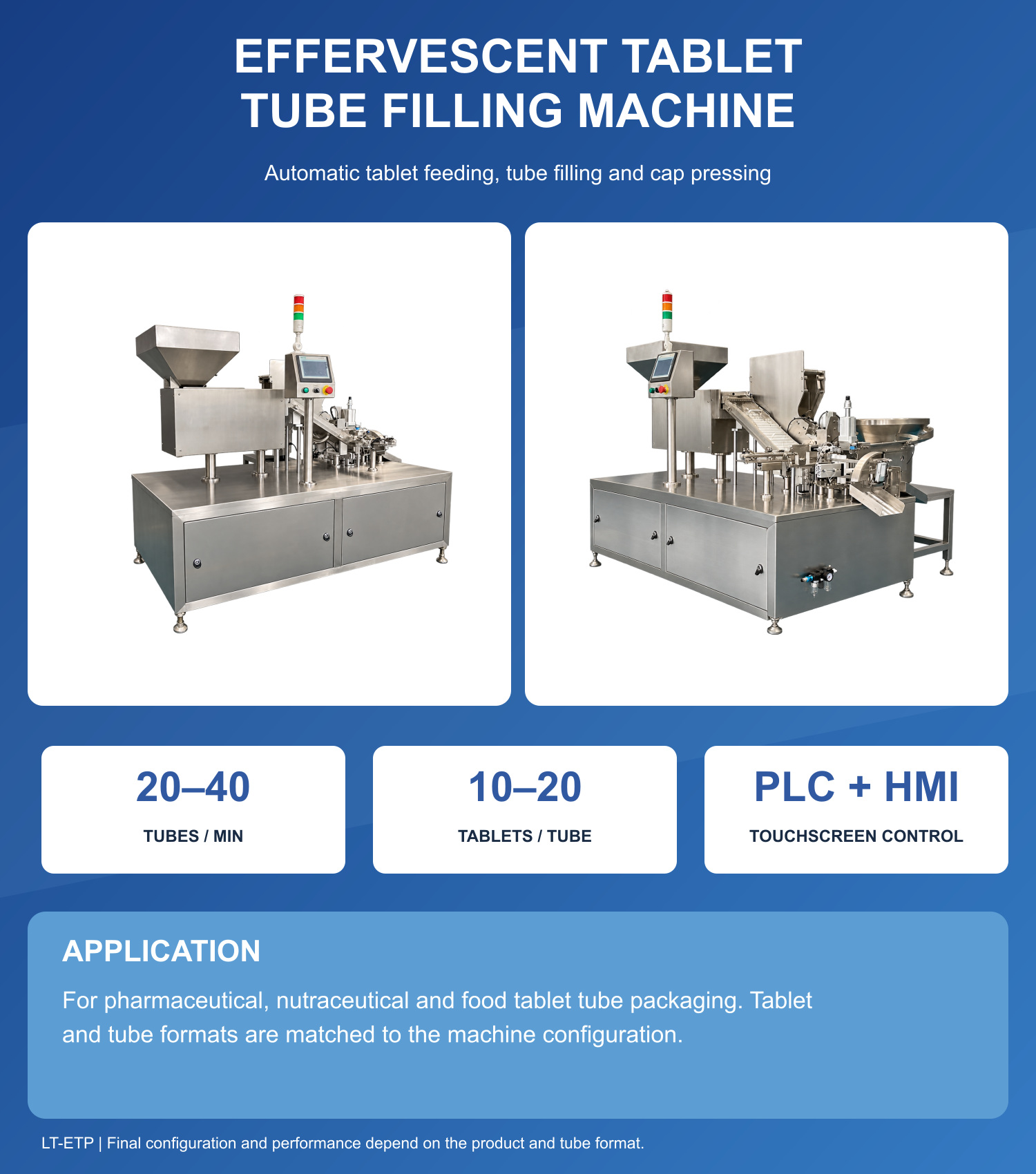

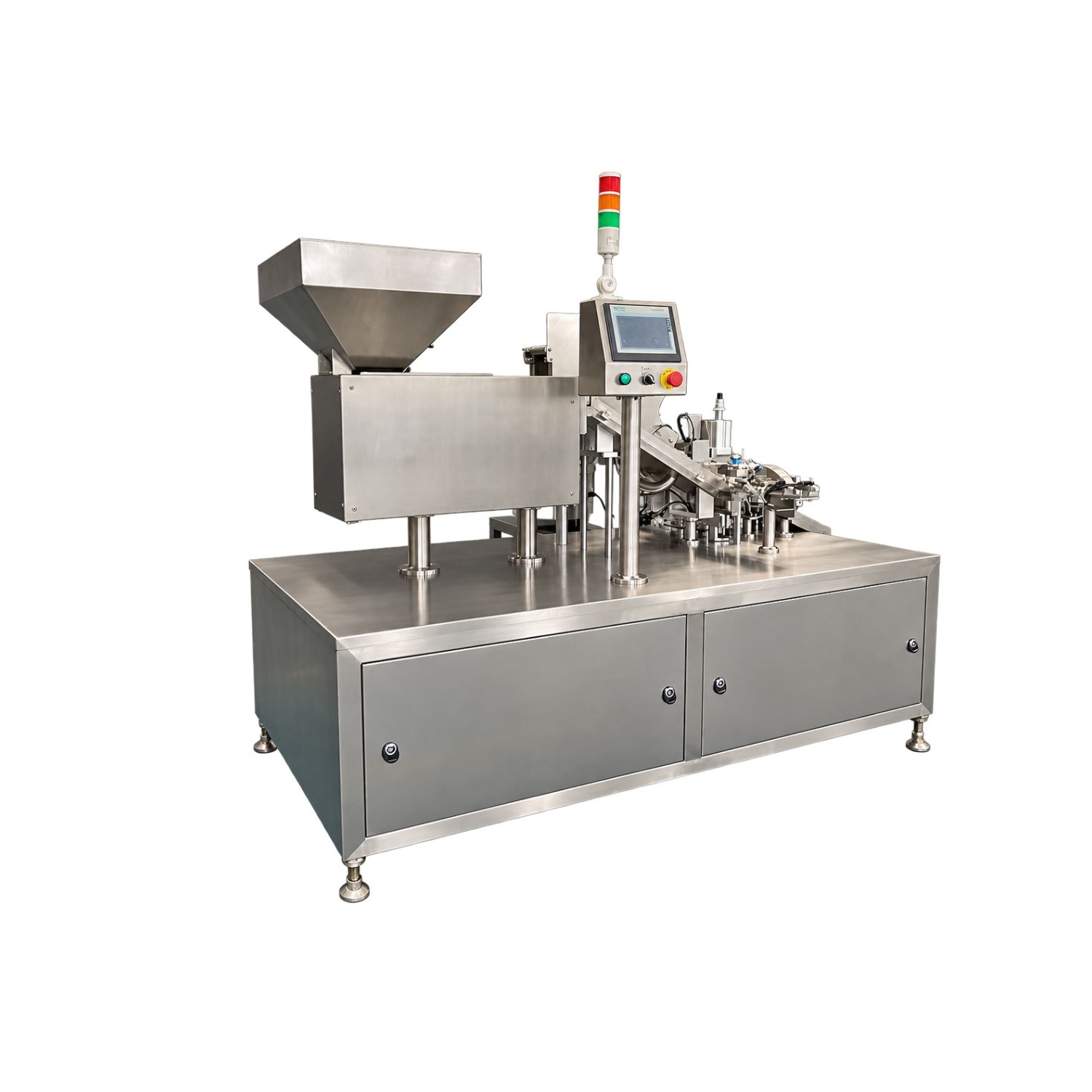

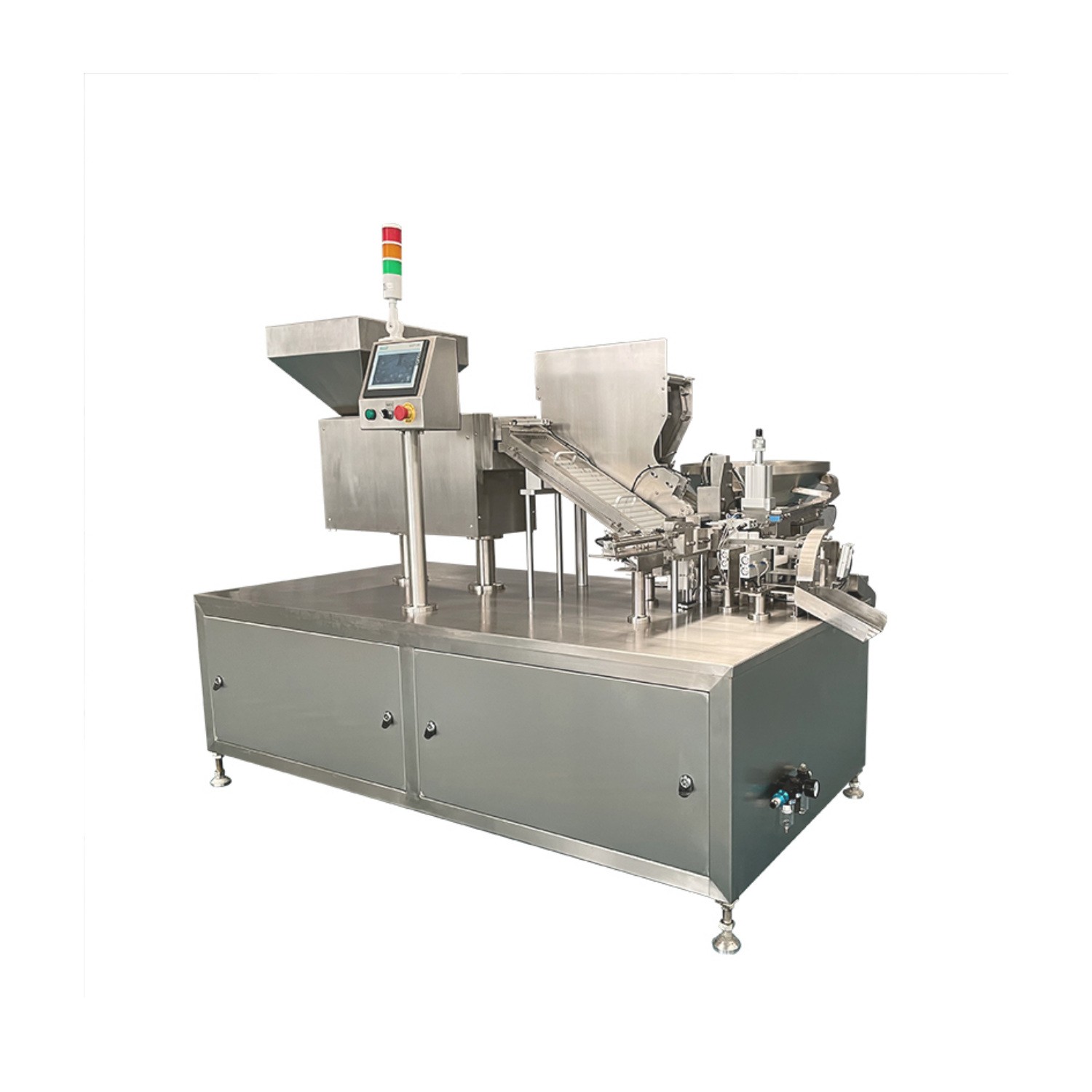

LT-ETP Automatic Effervescent Tablet Tube Filling and Capping Machine

The LT-ETP is a specialized, fully automated packaging solution engineered for packing effervescent tablets into rigid plastic tubes in ordered, single-column stacks before automatically pressing on sealing caps. The machine seamlessly coordinates tablet feeding, tube indexing, precision tablet stacking/filling, and cap pressing via an advanced detection system. Fully compliant with GMP sanitary standards, all tablet-contact components are manufactured from premium SUS316L stainless steel, making it the ideal packaging equipment for pharmaceutical, nutraceutical, and dietary supplement manufacturers.

Applicable Products: Vitamin C effervescent tablets, electrolyte effervescent tablets, cleaning/disinfection tablets, chewable tablets, and candy lozenges.

Container Type: Cylindrical rigid plastic tubes with desiccant-spiral caps.

Target Industries: Pharmaceutical, Nutraceuticals & Dietary Supplements, Health Foods, Daily Chemical Products.

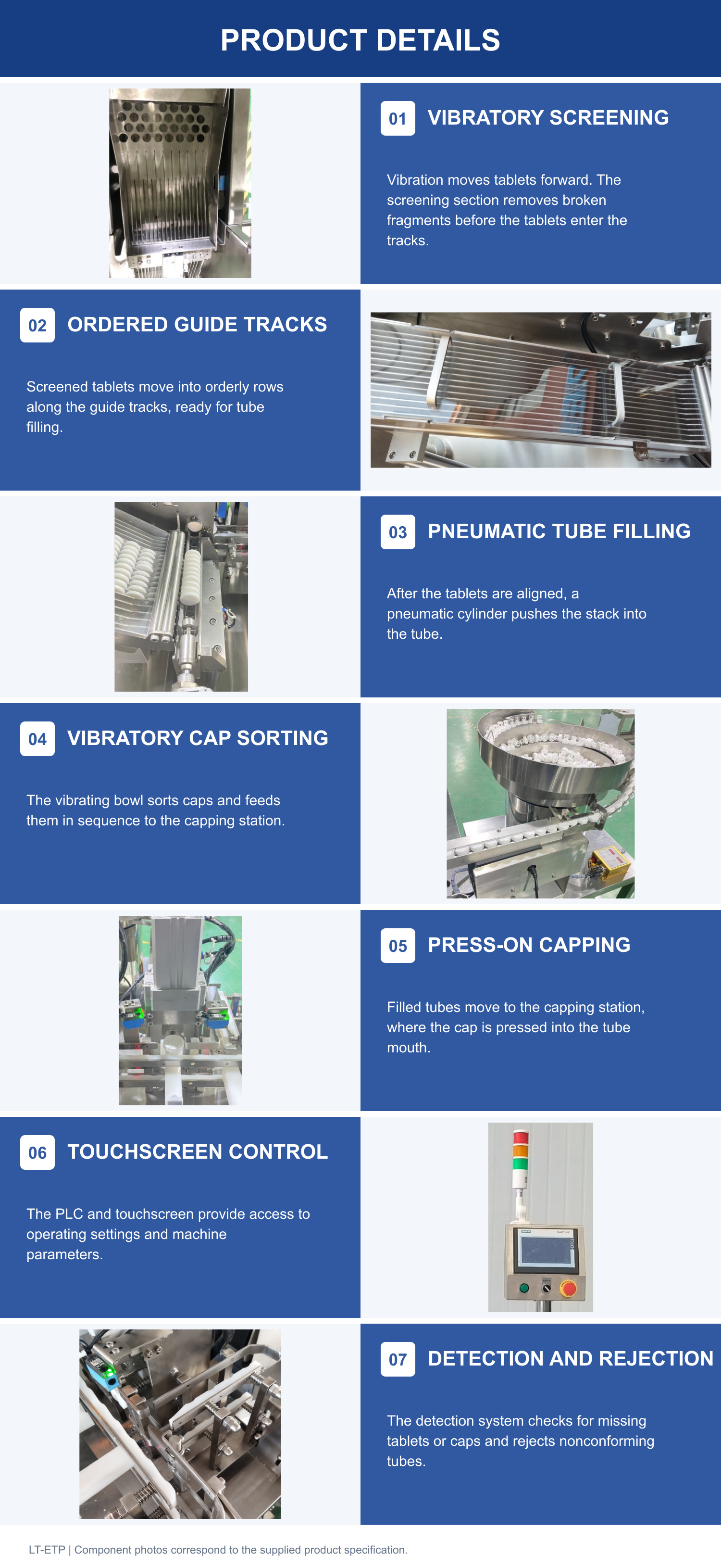

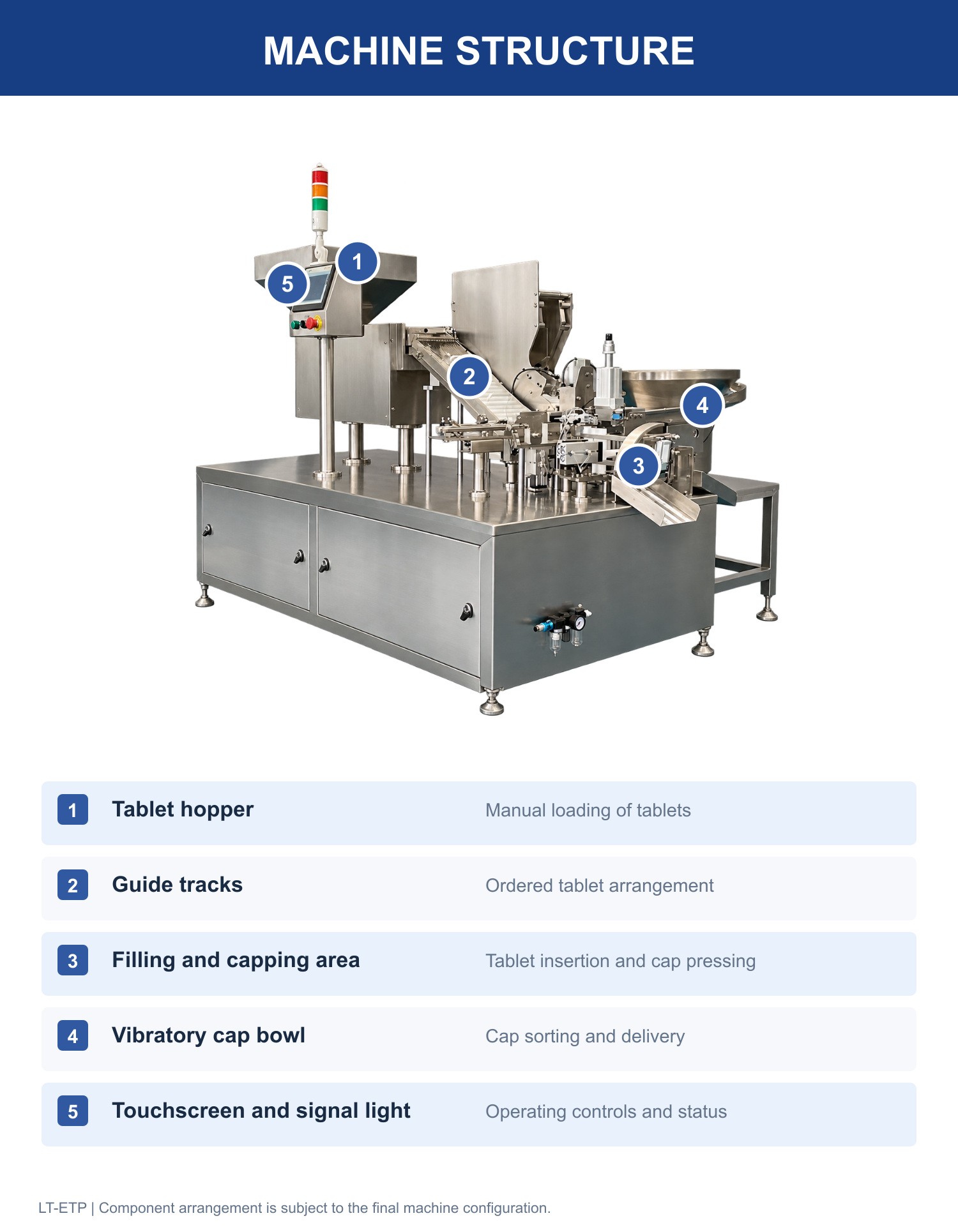

All-in-One Automated Packaging Process: Integrates automatic tablet vibrating feeding, channel counting/stacking, tube inserting, and automated cap pressing into a continuous workflow.

High Efficiency (20–40 Tubes/min): Consistently delivers high output with adjustable stacking quantities from 10 to 20 tablets per tube.

GMP Compliant & 316L Contact Parts: All components in direct contact with tablets are built from sanitary SUS316L stainless steel, while the outer machine frame is built with SUS304.

Premium Electrical & Pneumatic Configuration: Powered by high-reliability world-class components including Siemens PLC and HMI touchscreen, SICK tube presence sensors, Panasonic fiber-optic sensors, AirTAC pneumatics, and Delixi electrical components.

Gentle Handling & Zero Breakage: Specially engineered inclined tablet-feeding rails and smooth push-in mechanisms protect delicate effervescent tablets from chipping or surface powdering.

Customizable Container Adaptability: Readily customizable for different tablet diameters (18–26 mm), tablet thicknesses (6 ± 0.3 mm), and tube sizes (diameter 23–29 mm, height 85–144 mm).
