Description
Description:

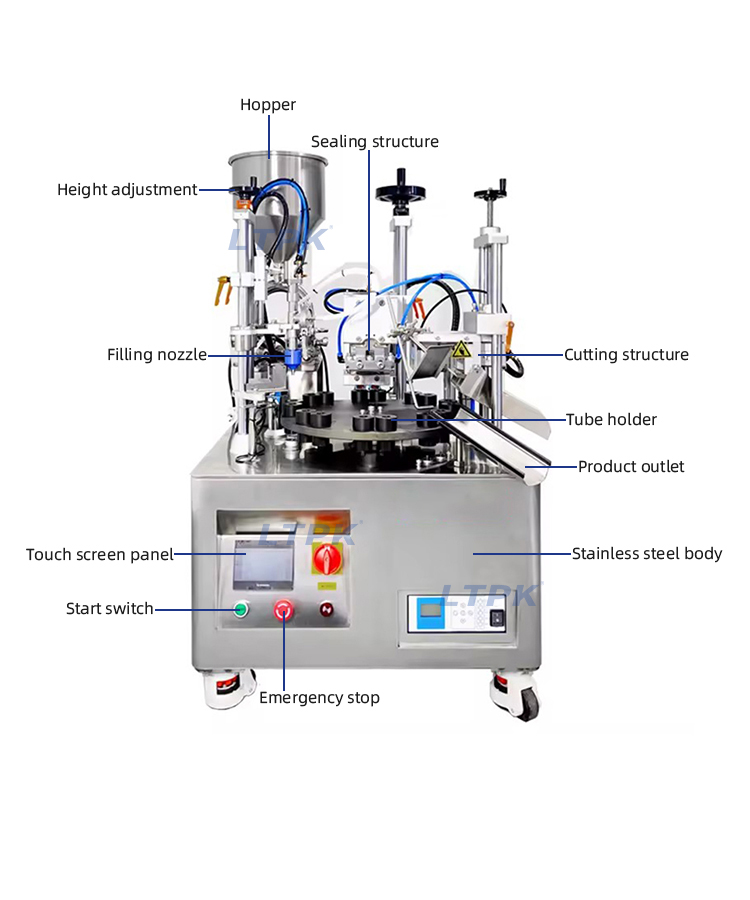

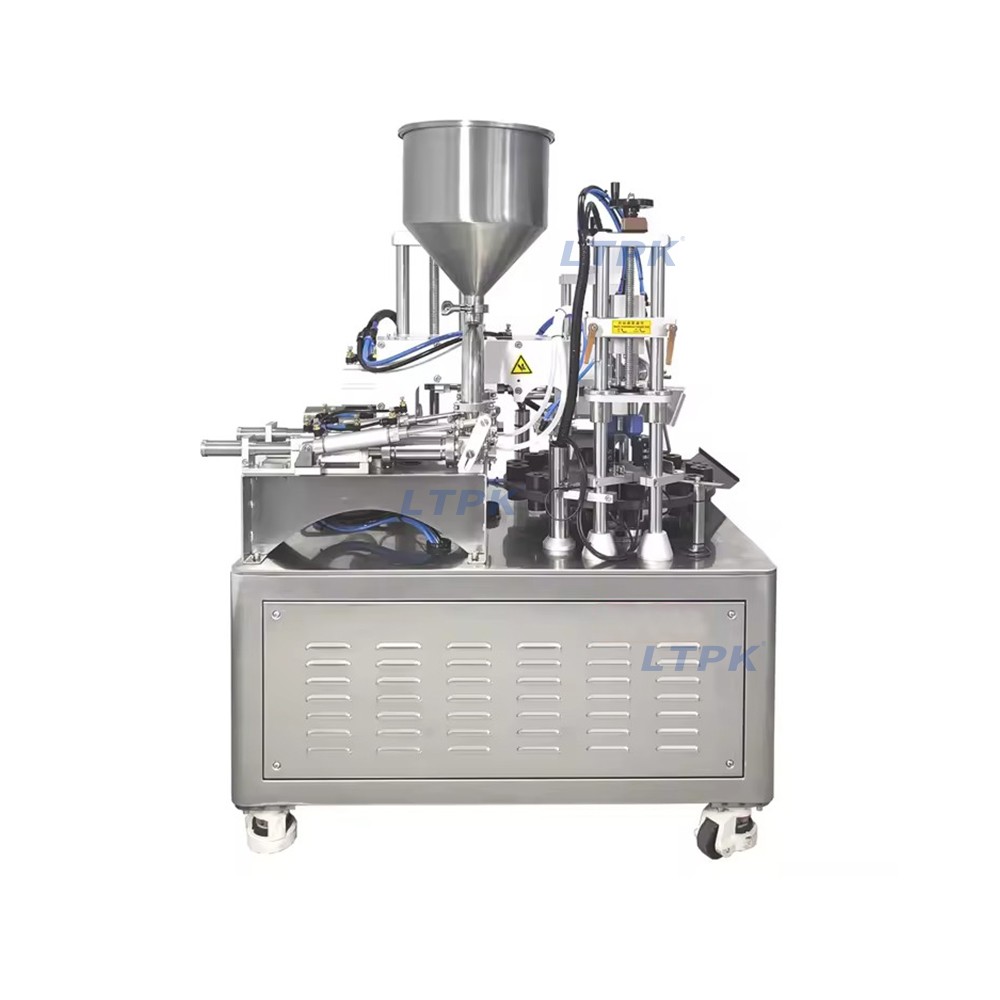

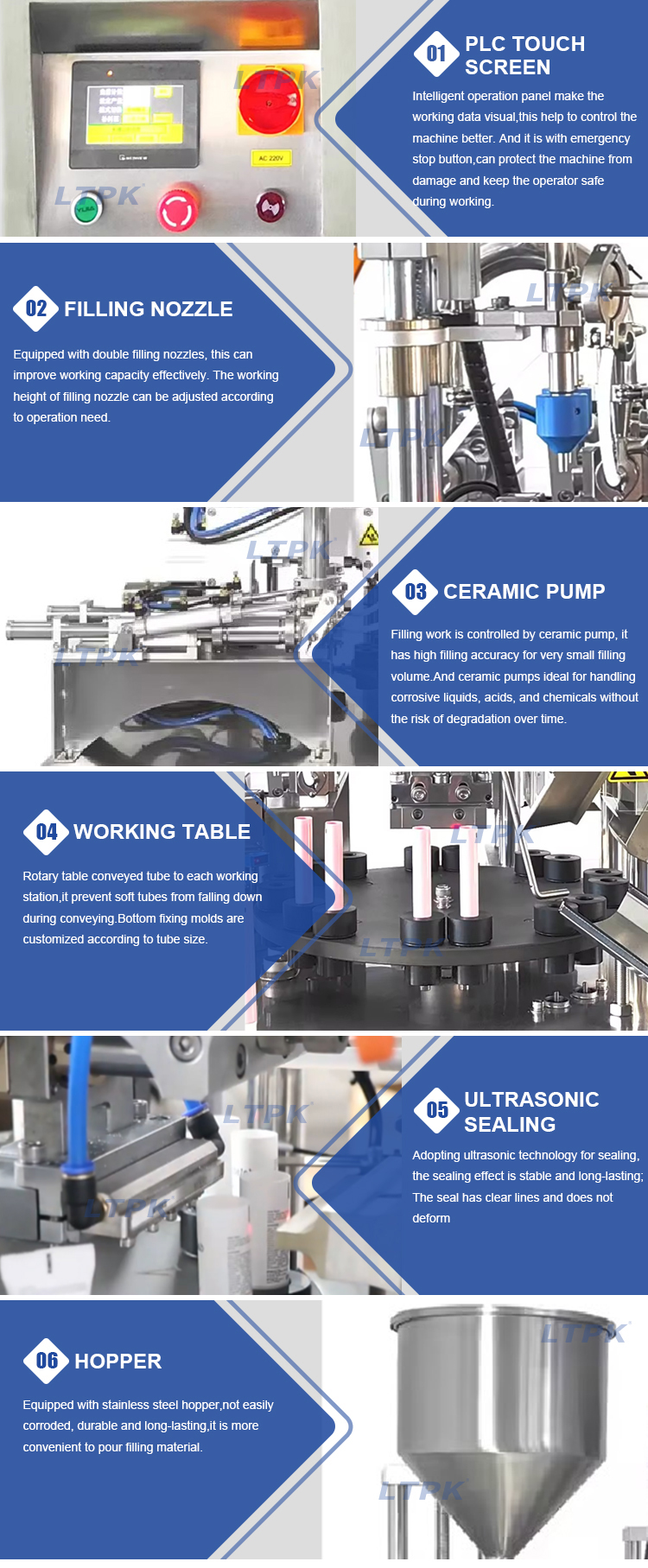

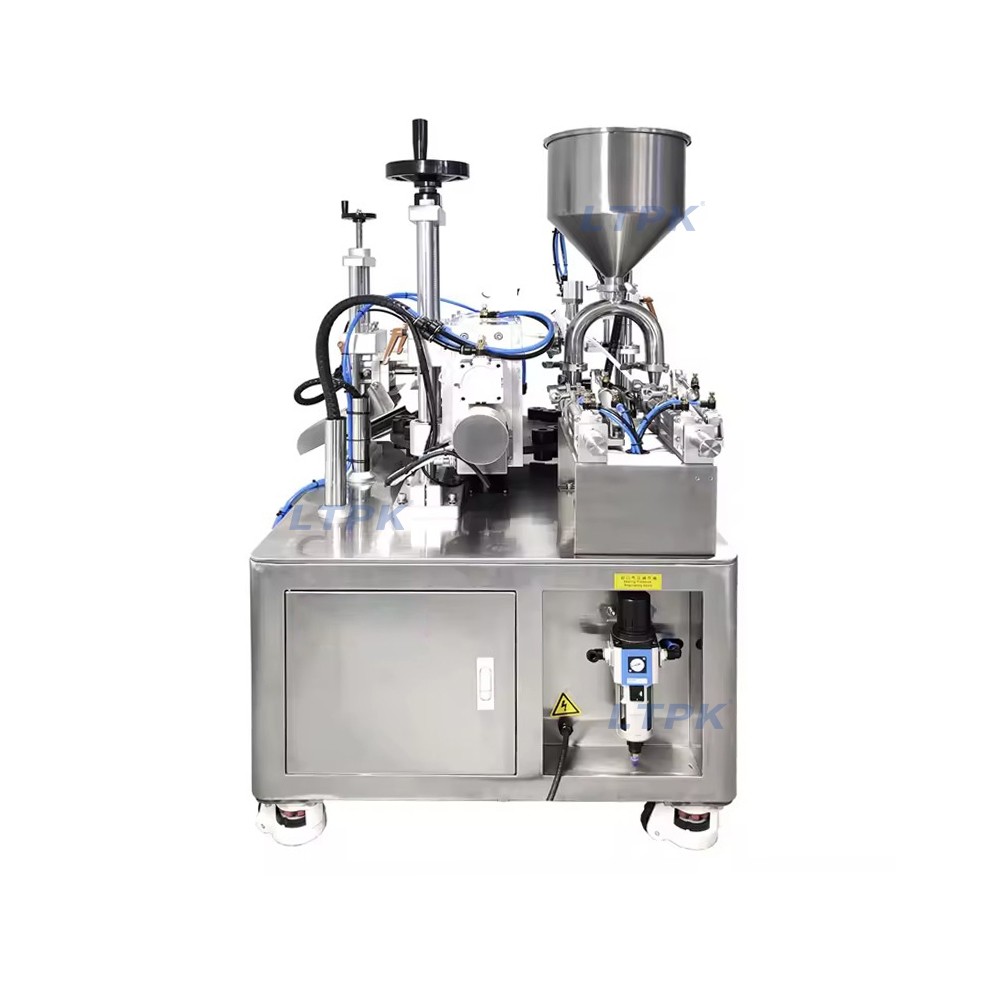

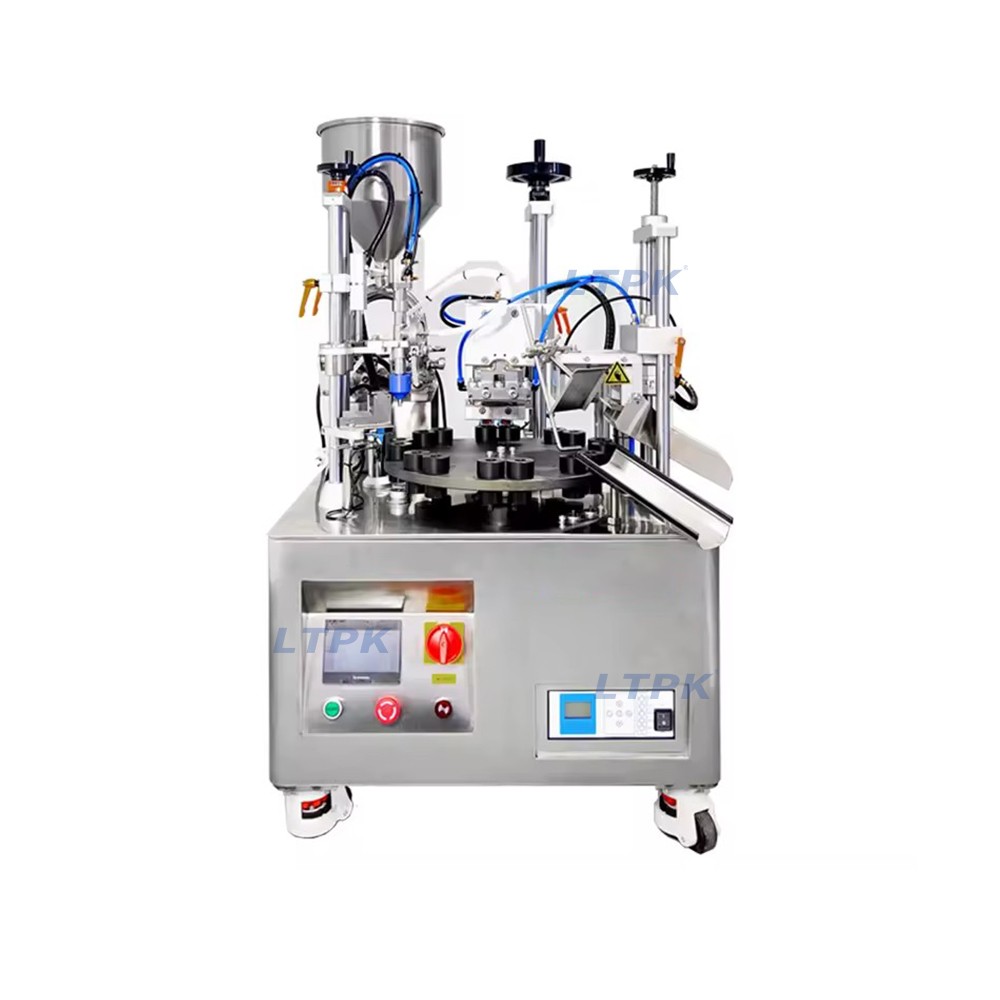

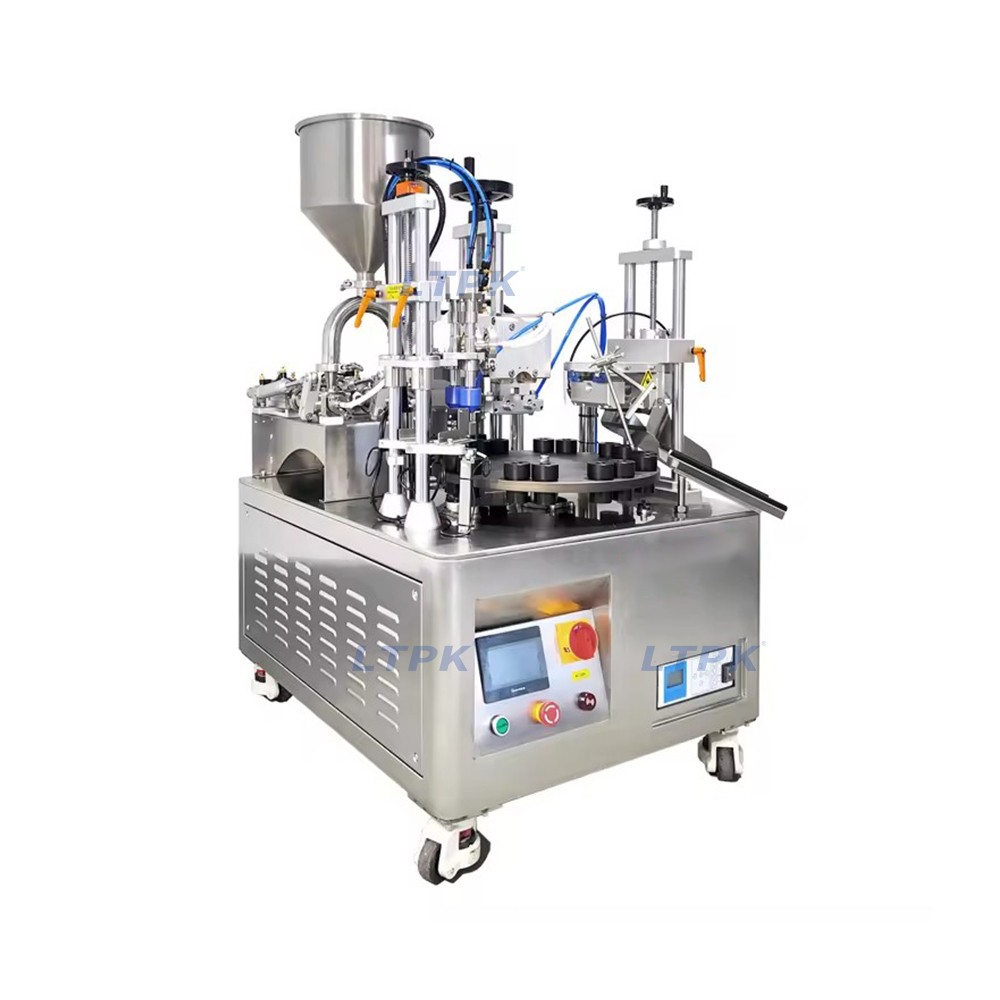

Ultrasonic tube filling and sealing machine can automatically fill paste into soft tube, seal soft tube at one rotary table. Ultrasonic controlled sealing structure, this ensures packaging quality and accuracy. the use of manual tube feeding, color automatic detection, automatic filling,automatic sealing, automatic tail-cutting, PLC control, touch an machine interface. It is suitable for packaging hand cream, lip gloss, facial cleanser,etc.
Application:

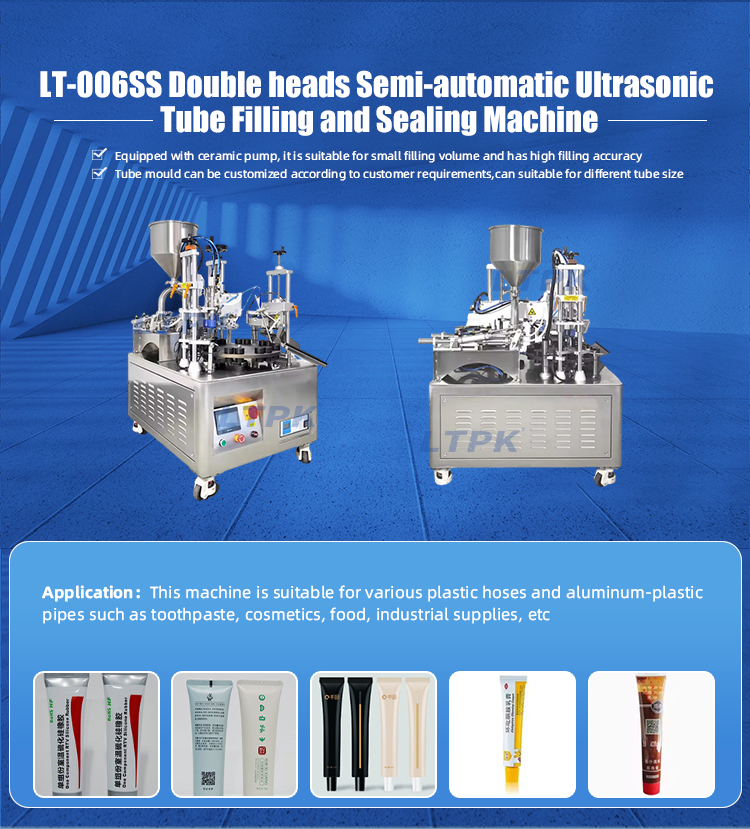

This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc
|
Model |
LT-006SS |
|
Voltage |
220/110V |
|
Power |
2.6KW |
|
Frequency |
20kHZ |
|
Workstation |
Eight station |
|
Filling range |
3-30ml |
|
Filling pump |
Ceramic pump |
|
Quantity of filling nozzle |
2 |
|
Filling accuracy |
±0.25-0.5ml(based on filling material and volume) |
|
Sealing speed |
40-50pcs/min |
|
Sealing diameter |
13-22mm |
|
Sealing height |
50-210mm |
|
Air Pressure |
0.5-0.6Mpa |
|
Weight |
About 212kg |
|
Size |
About 900*1150*1360mm |
