Description
Description：

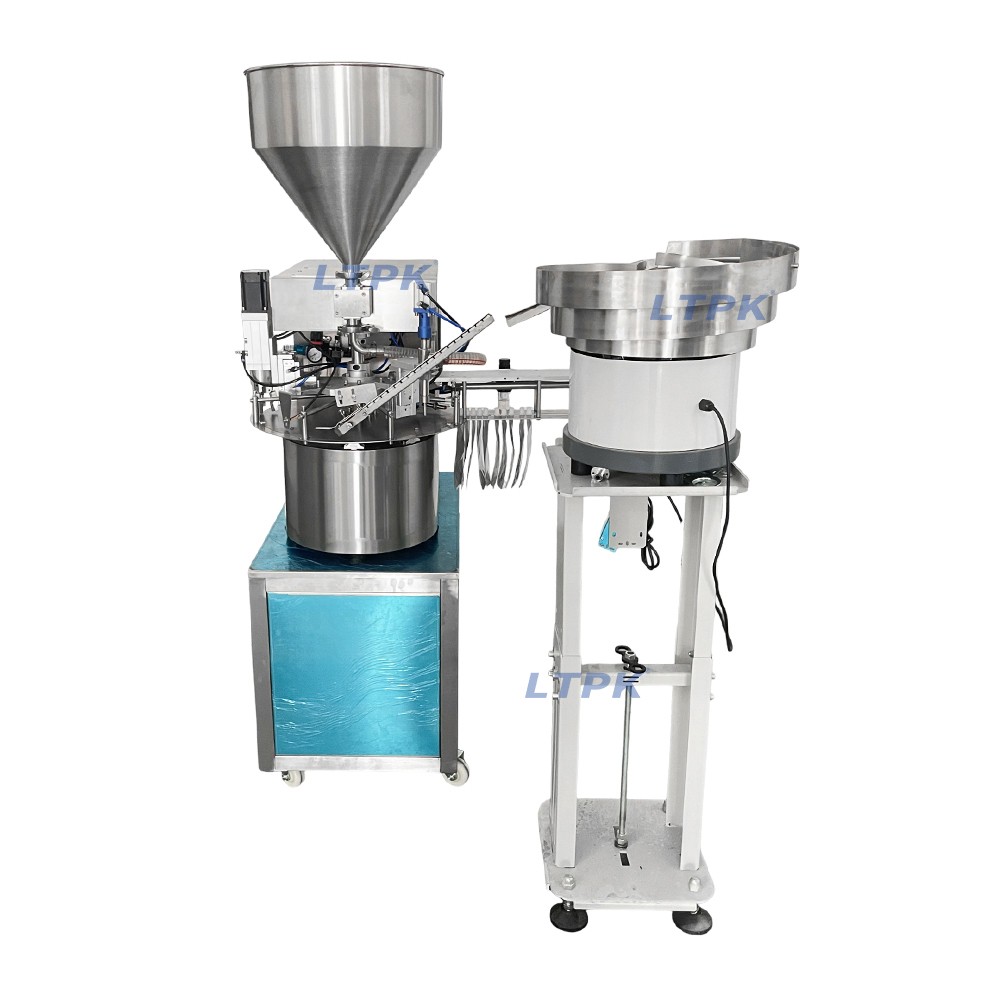

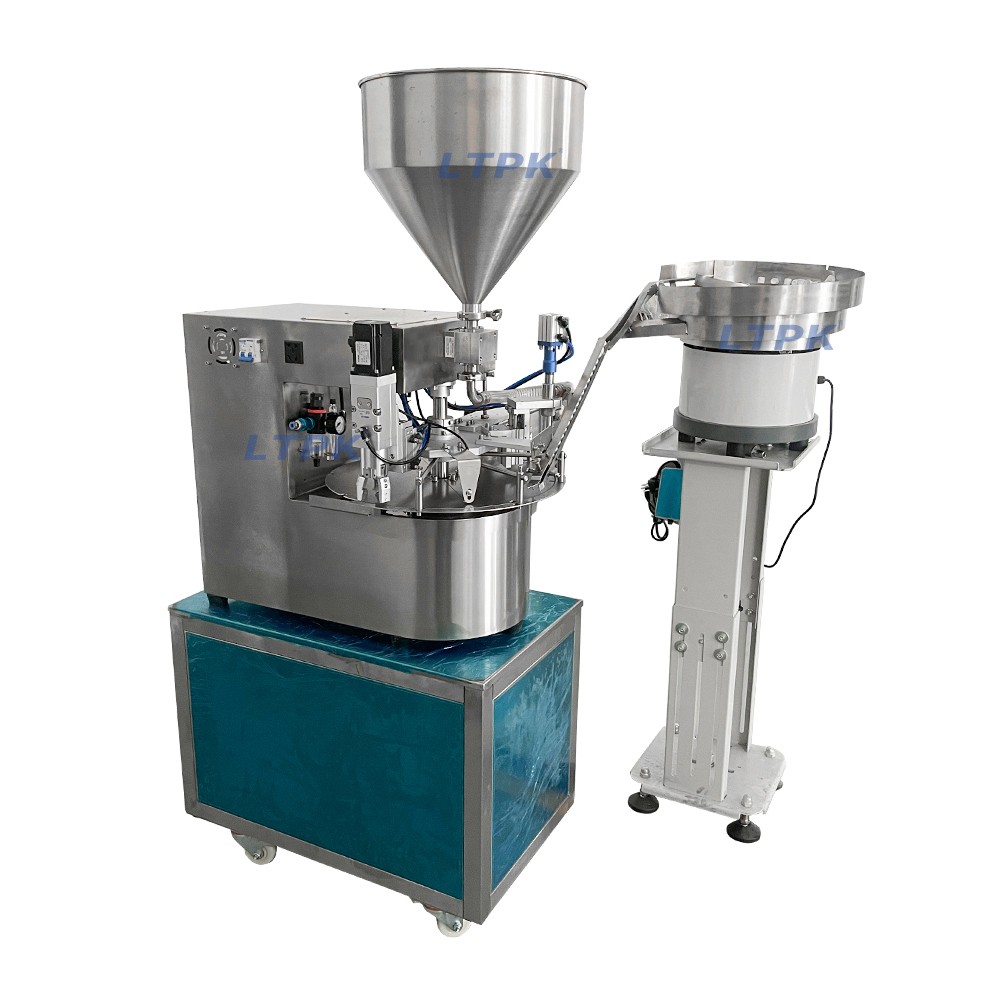

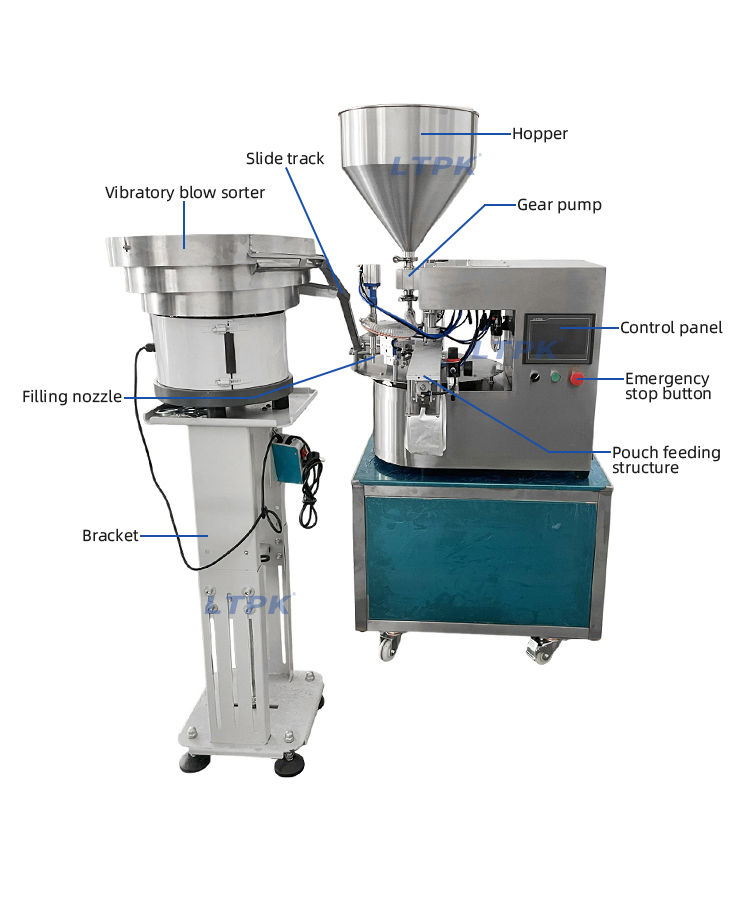

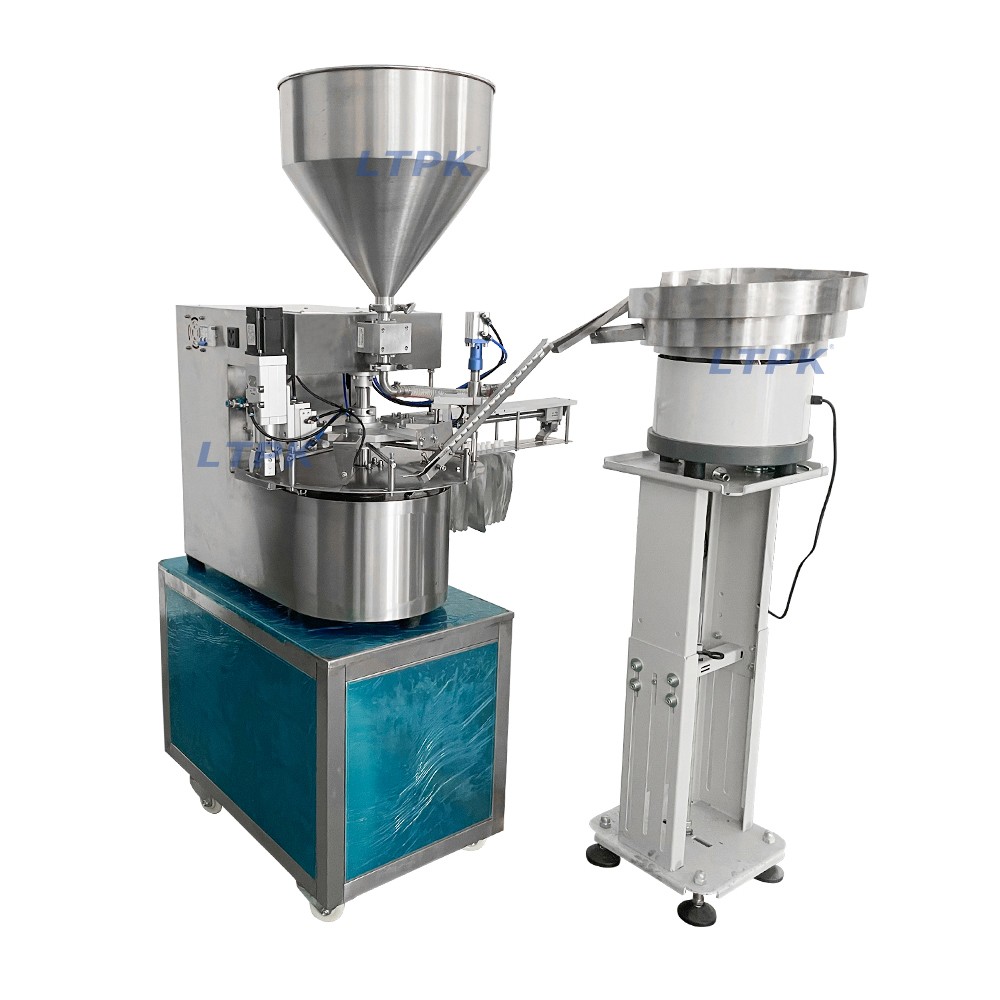

The self-supporting bag filling and capping machine consists of a bag pushing mechanism, a bag blowing mechanism, a filling mechanism, a cap hanging mechanism, a cap twisting mechanism, etc. It is mainly used as an automated equipment for filling and capping soft bags.The machine adopts a PLC control system, human-machine interface, and more intuitive operation. Production, installation, and debugging are very simple,and the work is stable and reliable.
Application:
Suitable for filling liquids, pastes, sauces and other materials;Such as honey, jelly, milk,soybean milk, drinks, etc.
Technical parameters：
|
Model |
LT-LD03 |
|
Voltage |
220V |
|
Power |
2KW |
|
Suggest filling range |
50-500ml(customizable) |
|
Capping size |
custom |
|
Working speed |
15-20 bags/min(based on filling range) |
|
Filling pump |
Gear pump/rotor pump |
|
Filling accuracy |
±0.5% |
|
Air pressure |
0.5-0.8Mpa |
|
Air consumption |
0.5 m³/min |
|
Hopper size |
30L |
|
Packing size |
About 159*87*92cm |
|
Packing weight |
About 130kg |
