Description
Description：

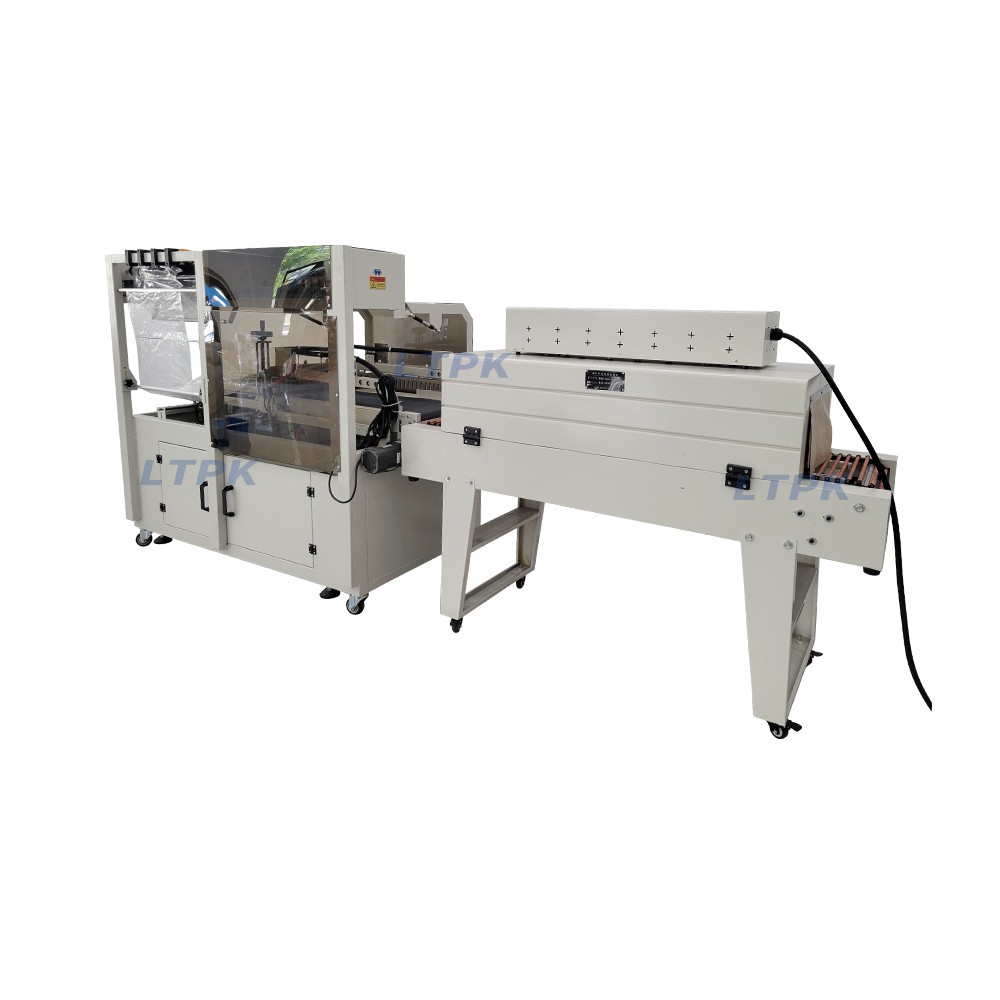

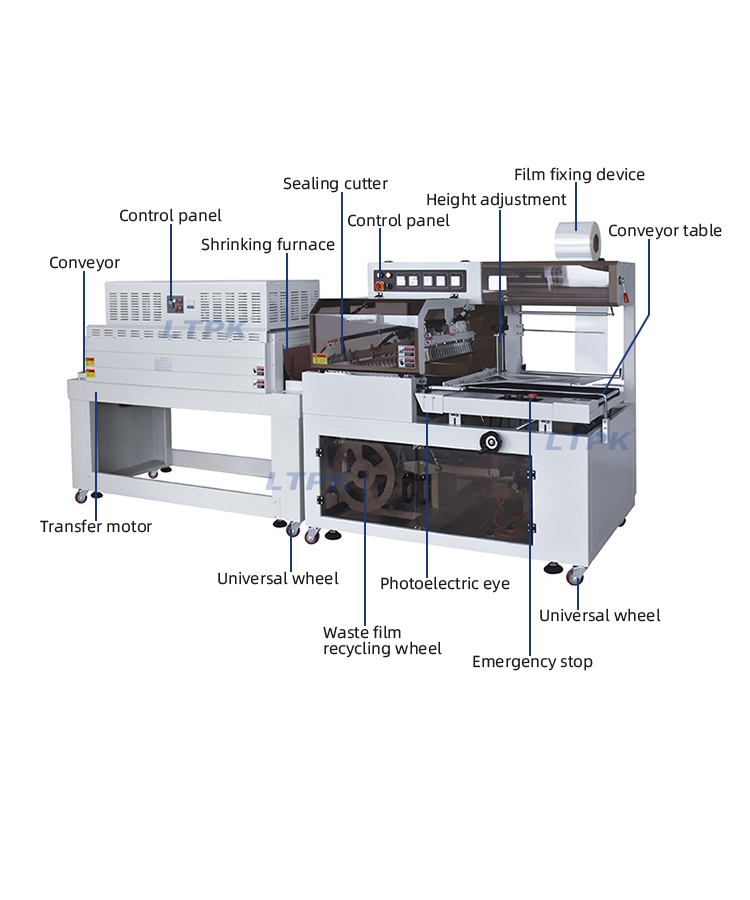

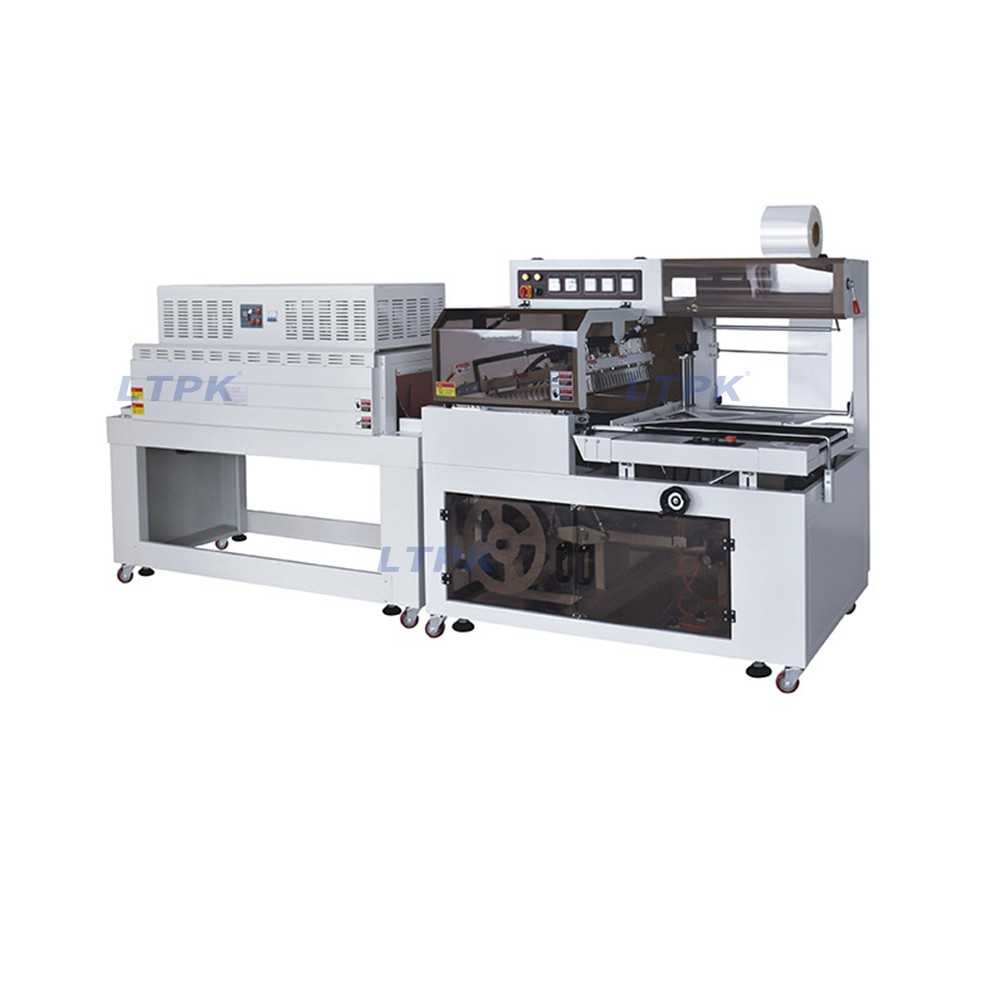

This machine has high working efficiency, automatic film feeding and punching, automatic film sealing and cutting, only need to manually adjust the film guiding system and manually adjust the feeding conveying platform for products of different widths and heights. The automatic sealing and shrinking packaging machine is also suitable for multi-piece wrapping and tray packaging, and can also be used with the automatic packaging line, which is the first choice for sealing and shrinking packaging.
Application:
Mainly used in the production of packaging for food, beverage, stationery, printed matter, cosmetics, gifts, electronic products, toys and other products.
Technical parameters
|
Name |

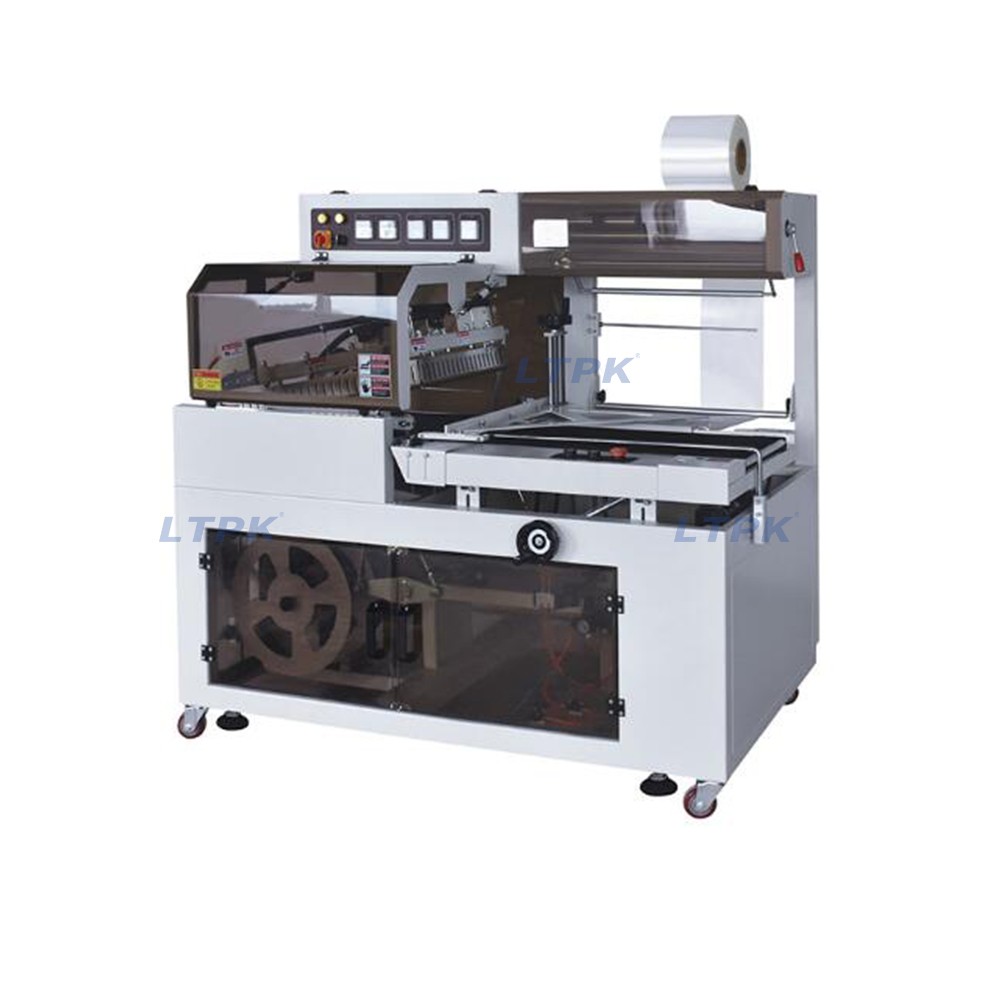

Automatic sealer and cutter |

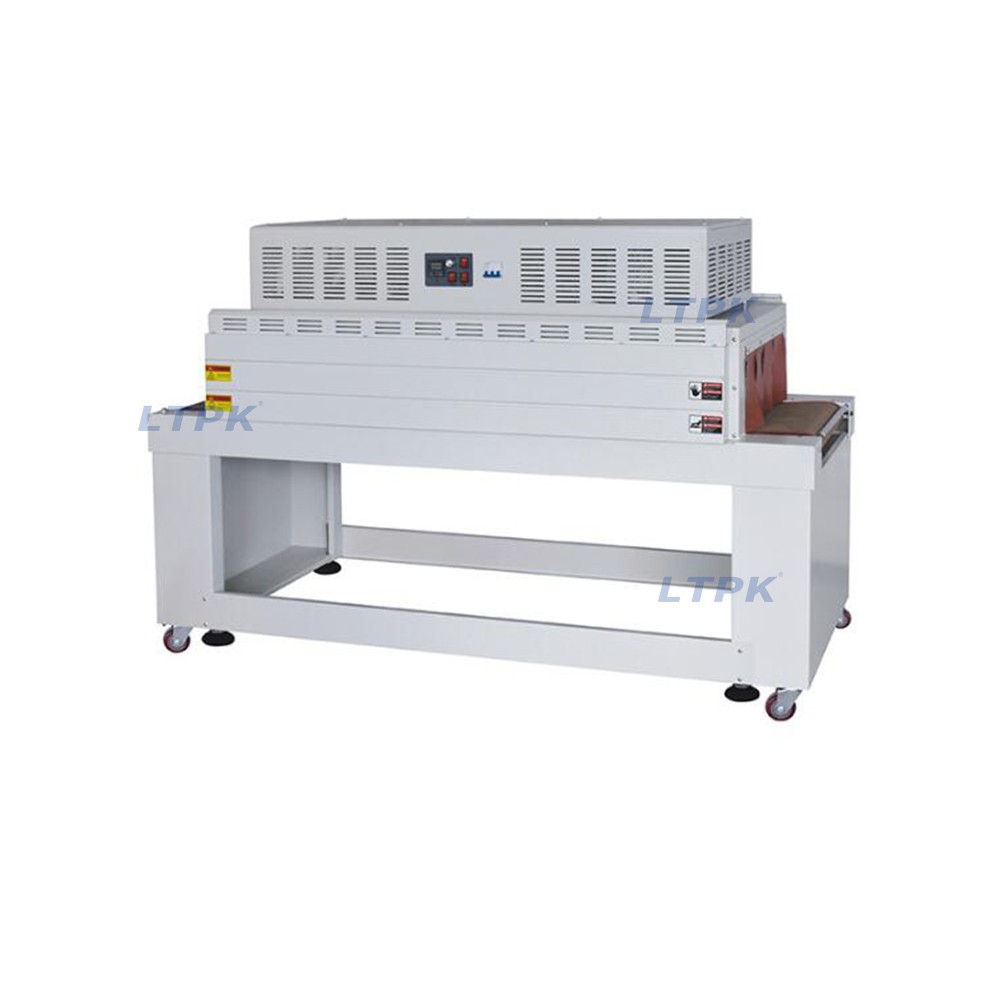

Hot air circulation shrink machine |
|
|
Model |
FQL450A |
BS4522N |
BS4522LN |
|
Power supply |
220V 50/60Hz |
380V 50/60Hz |
|
|
Power |
1.35KW |
12KW |
|
|
Max packaging size |
L440*W340*H140mm |
/ |
|
|
Cutter size/Heat tunnel size |
560*440mm |
1200*450*220mm |
1600*450*220mm |
|
Packing speed/Conveying speed |
15-30bags/min |
0-10m/min(adjustable) |
|
|
Conveying weight |
/ |
30kg |
|
|
Film material |
POF |
PVC POF PP |
|
|
Air pressure |
0.5Mpa |
/ |
|
|
Size |
1650*920*1450mm |
1600*700*1370mm |
2000*700*1370mm |
|
Weight |
300kg |
160kg |
200kg |
|
Name |
Automatic sealer and cutter |
Hot air circulation shrink machine |
|
Model |
FQL550A |
BS5530LN |
|
Power supply |
220V 50/60Hz |
380V 50/60Hz |
|
Power |
1.35KW |
16KW |
|
Max packaging size |
L540*W440*H140mm |
/ |
|
Cutter size/Heat tunnel size |
660*540mm |
1600*550*300mm |
|
Packing speed/Conveying speed |
15-30bags/min |
0-10m/min(adjustable) |
|
Conveying weight |
/ |
30kg |
|
Film material |
POF |
PVC POF PP |
|
Air pressure |
0.5Mpa |
/ |
|
Size |
1860*1020*1550mm |
2000*800*1450mm |
|
Weight |
350kg |
220kg |
|
Name |
Automatic sealer and cutter |
Hot air circulation shrink machine |
|
Model |
FQL750A |
BS7535LN |
|
Power supply |
220V 50/60Hz |
380V 50/60Hz |
|
Power |
1.35KW |
18KW |
|
Max packaging size |
L640*W540*H140mm |
/ |
|
Cutter size/Heat tunnel size |
760*640mm |
1600*750*350mm |
|
Packing speed/Conveying speed |
15-30bags/min |
0-10m/min(adjustable) |
|
Conveying weight |
/ |
30kg |
|
Film material |
POF |
PVC POF PP |
|
Air pressure |
0.5Mpa |
/ |
|
Size |
2260*1320*1550mm |
2000*1000*1550mm |
|
Weight |
400kg |
240kg |
