  • Max load 6L/min automatic 8 nozzles magnetic pump liquid filling machine for wine whiskey juice
  • Max load 6L/min automatic 8 nozzles magnetic pump liquid filling machine for wine whiskey juice
  • Max load 6L/min automatic 8 nozzles magnetic pump liquid filling machine for wine whiskey juice
  • Max load 6L/min automatic 8 nozzles magnetic pump liquid filling machine for wine whiskey juice
Max load 6L/min automatic 8 nozzles magnetic pump liquid filling machine for wine whiskey juice Max load 6L/min automatic 8 nozzles magnetic pump liquid filling machine for wine whiskey juice Max load 6L/min automatic 8 nozzles magnetic pump liquid filling machine for wine whiskey juice Max load 6L/min automatic 8 nozzles magnetic pump liquid filling machine for wine whiskey juice

Max load 6L/min automatic 8 nozzles magnetic pump liquid filling machine for wine whiskey juice

Inquiry Send Email

Description


Description:

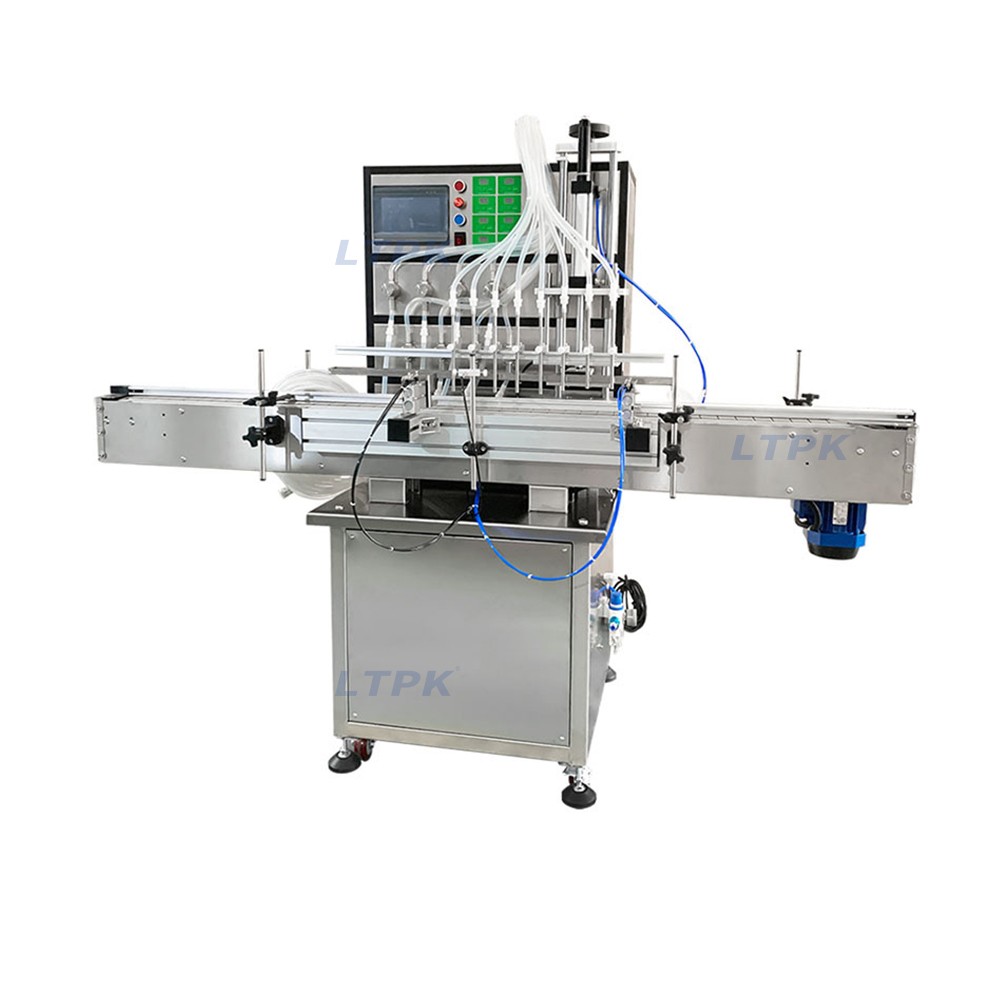

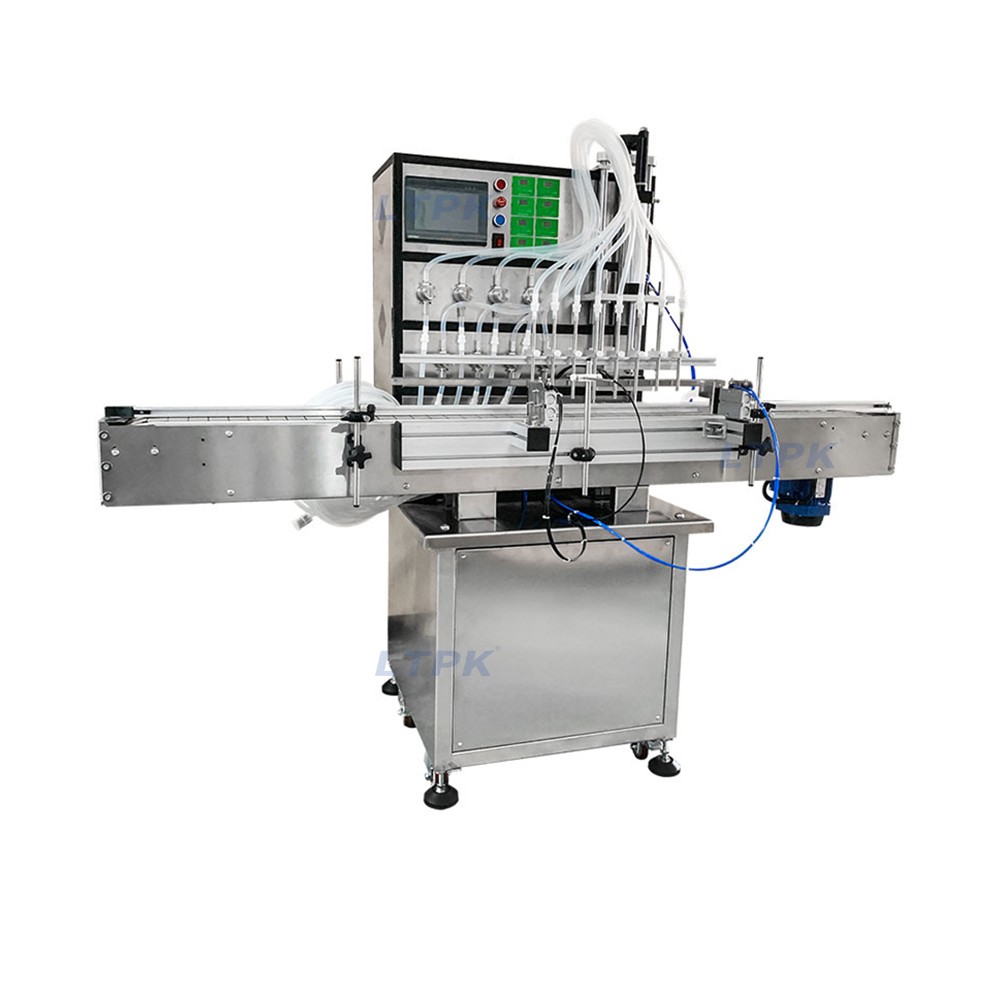

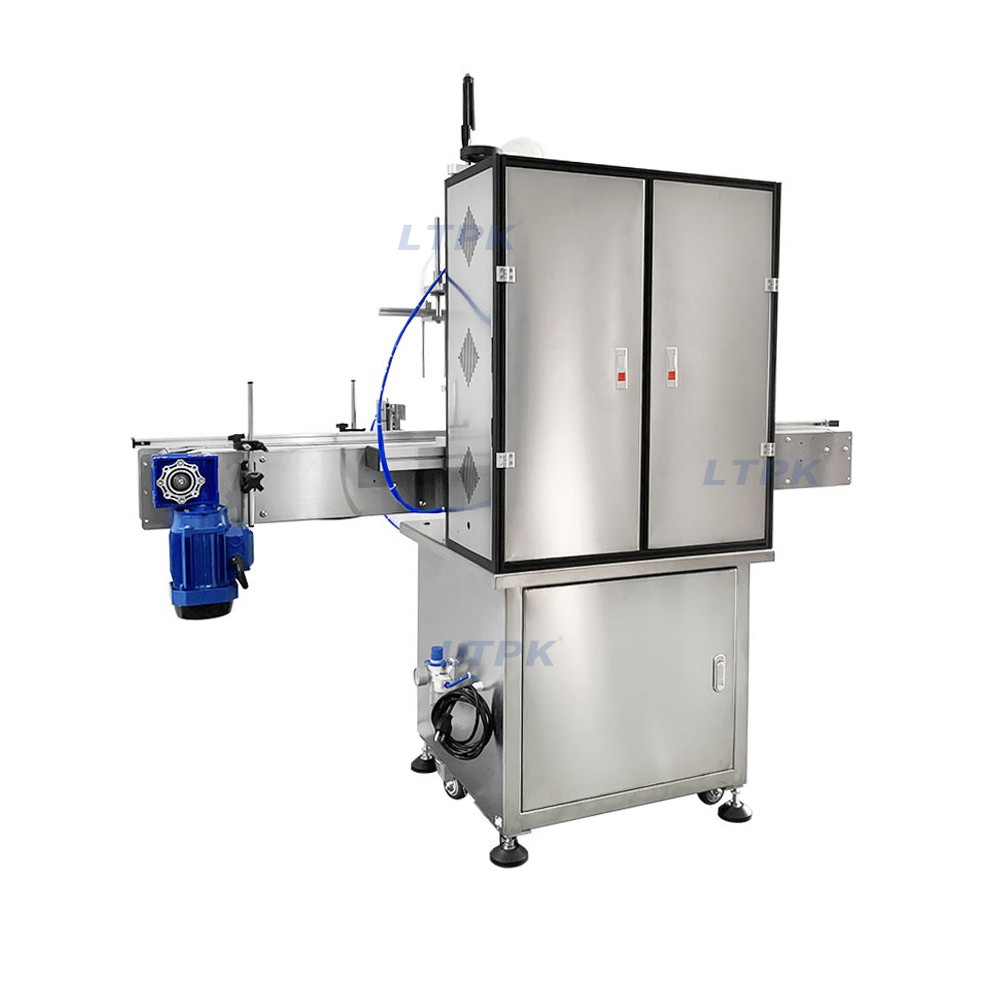

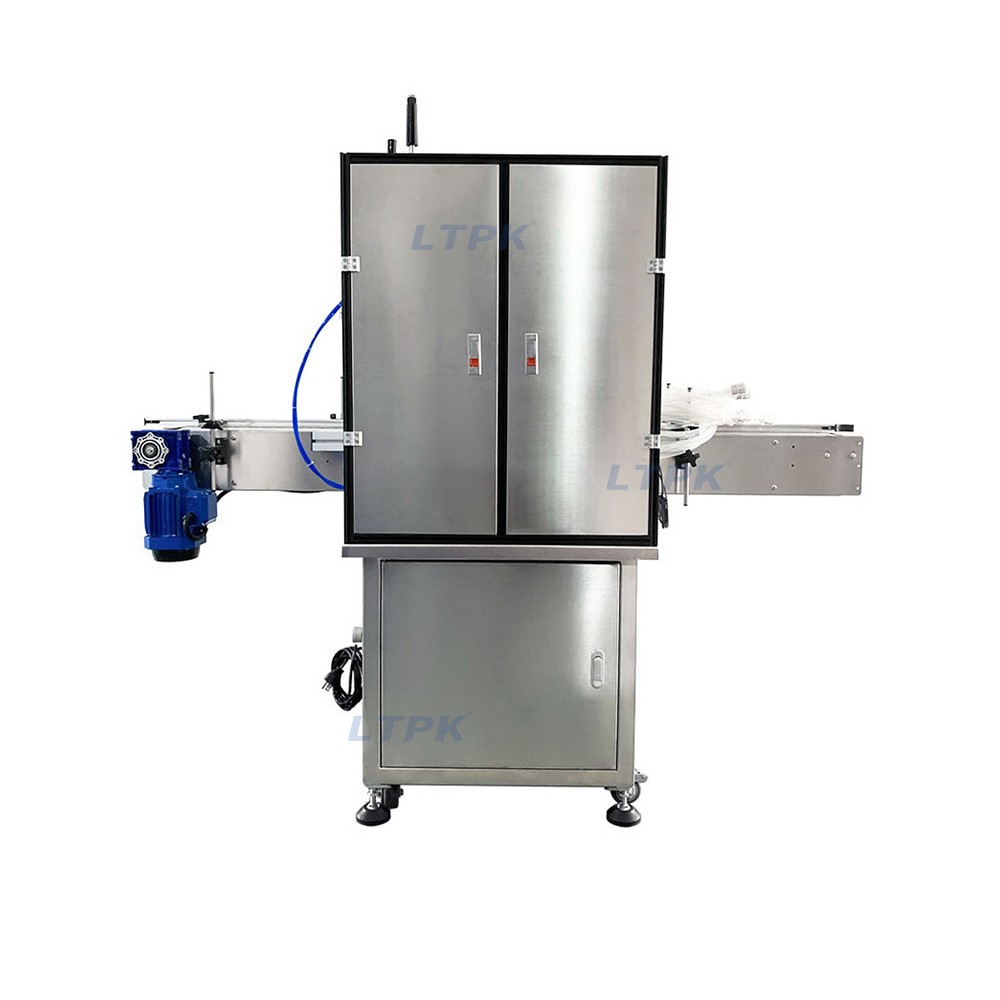

This 8-head automatic magnetic pump filling machine body is made of all stainless steel. It comes with automatic counting function. The performance is reliable and the measurement is accurate. It is an excellent machine for filling particle-free liquid.The filling nozzles can be customized according to your requirements(like 4 or 6),and customers can control each nozzle separately.

Application:

A wide range of applications, such as: various chemicals (solvents, acetone), cosmetics (toner, makeup remover, spray), food (milk, soybean milk, fruit juice, fruit wine), condiments (soy sauce, vinegar, sesame oil) and other non granular liquids


详情主图字幕:

Vertical 8 head 6L magnetic pump filling machine

Equipped with magnetic pump, accurate filling, max filling capacity of 60 bottles/min

Suitable for water, cosmetics, milk, alcohol, laundry detergent


Name

Vertical 8 head 6L magnetic pump filling machine

Model

LT-VMP8H

Voltage

220V/110V

Power

3KW

Max flow rate

6L/min

Filling speed

40-60pcs/min

Maximum tube suction range

2M

Filling accuracy

≤±1%

Anti drip function

Yes

Power and memory function

Yes

Filling range suggestion

10-2000ml

Size of air compressor connector

OD8mm

Weight

About 199KG

Packing Size

2000*820*1580mm

Inquiry Us
