Description
Description：

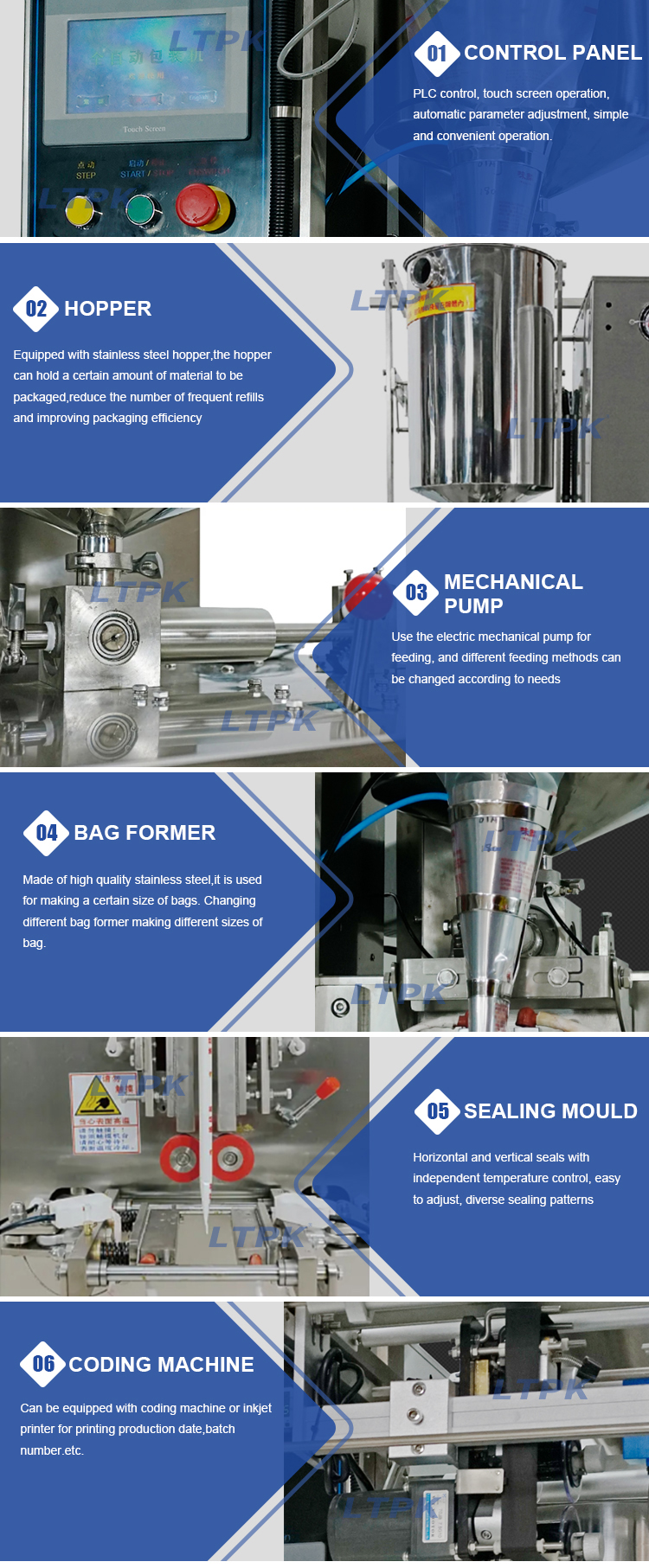

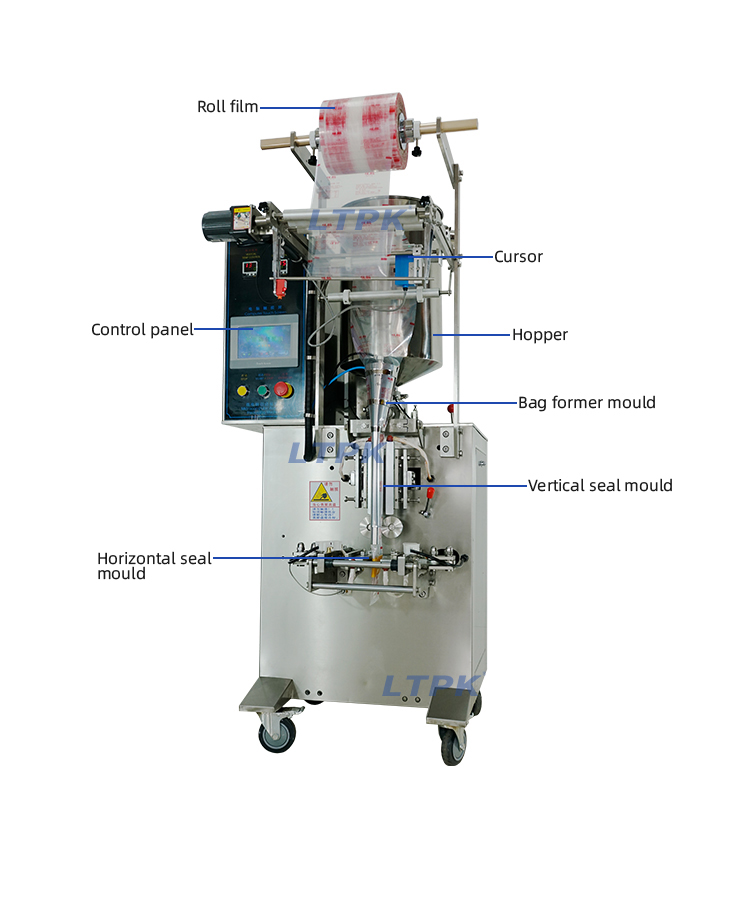

This machine adopts the touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
Application:
The machine is suitable for the food, chemical industry, cosmetics industry of liquids,sauce of measurement packing,such as honey, jam, tomato sauce, shampoo, fruit juice, beverages, etc.
Technical parameters：
|
Model |
LT-YS61AJ |
|
Voltage |
220V |
|
Power |
1.4KW |
|
Packing type |
Three side sealing (optional back side sealing or four side sealing) |
|
Packing speed |
30-60bags/min |
|
Bag length |
30-170mm |
|
Bag width |
30-130mm(Need to replace the bag former |
|
Filling range |
1-100g(3 - 100ml) |
|
Machine weight |
400kg |
|
Machine size |
900 *1100*1900 mm |
