Description
Description：

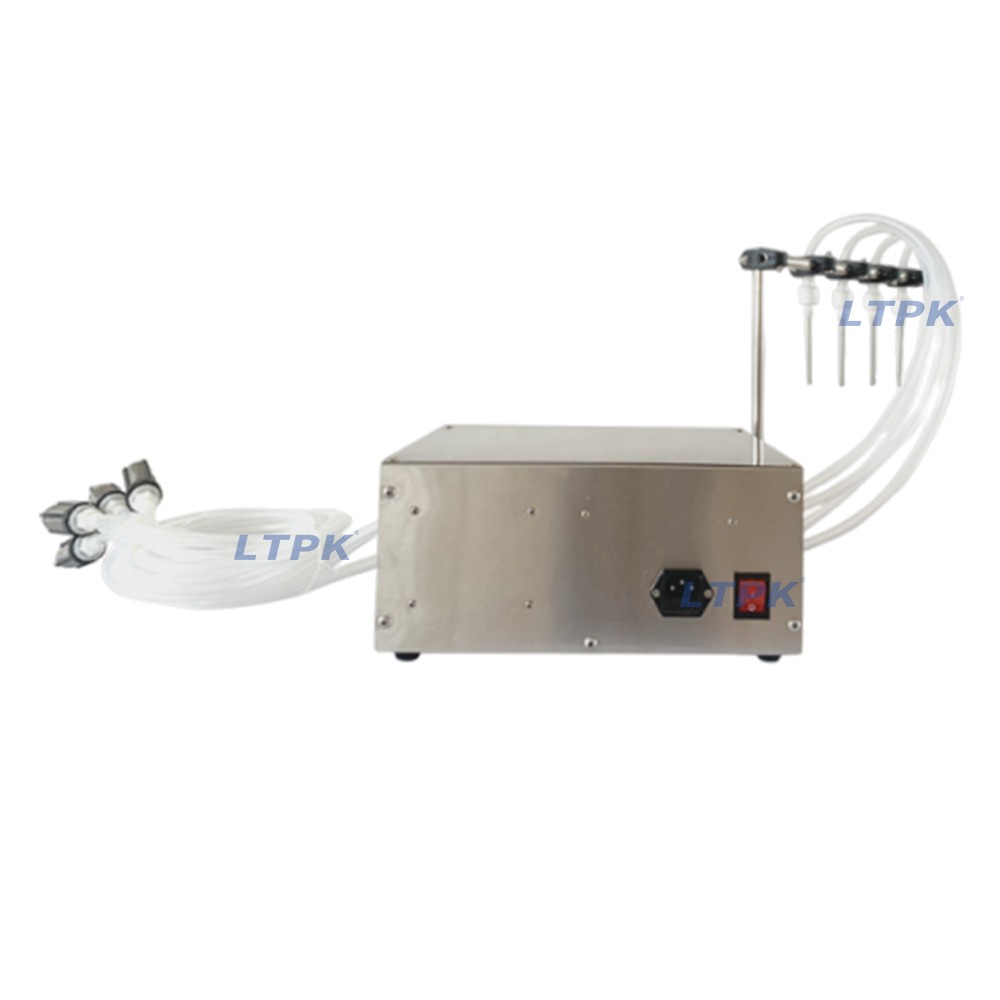

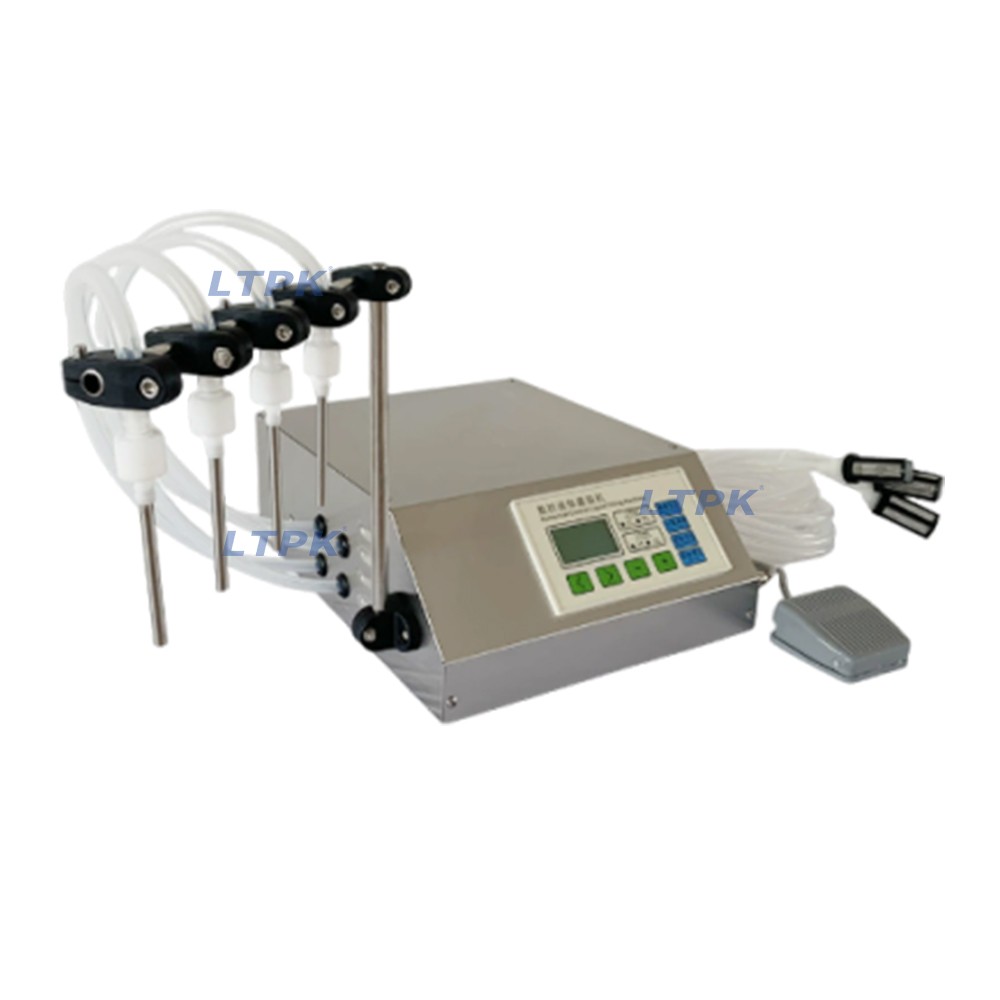

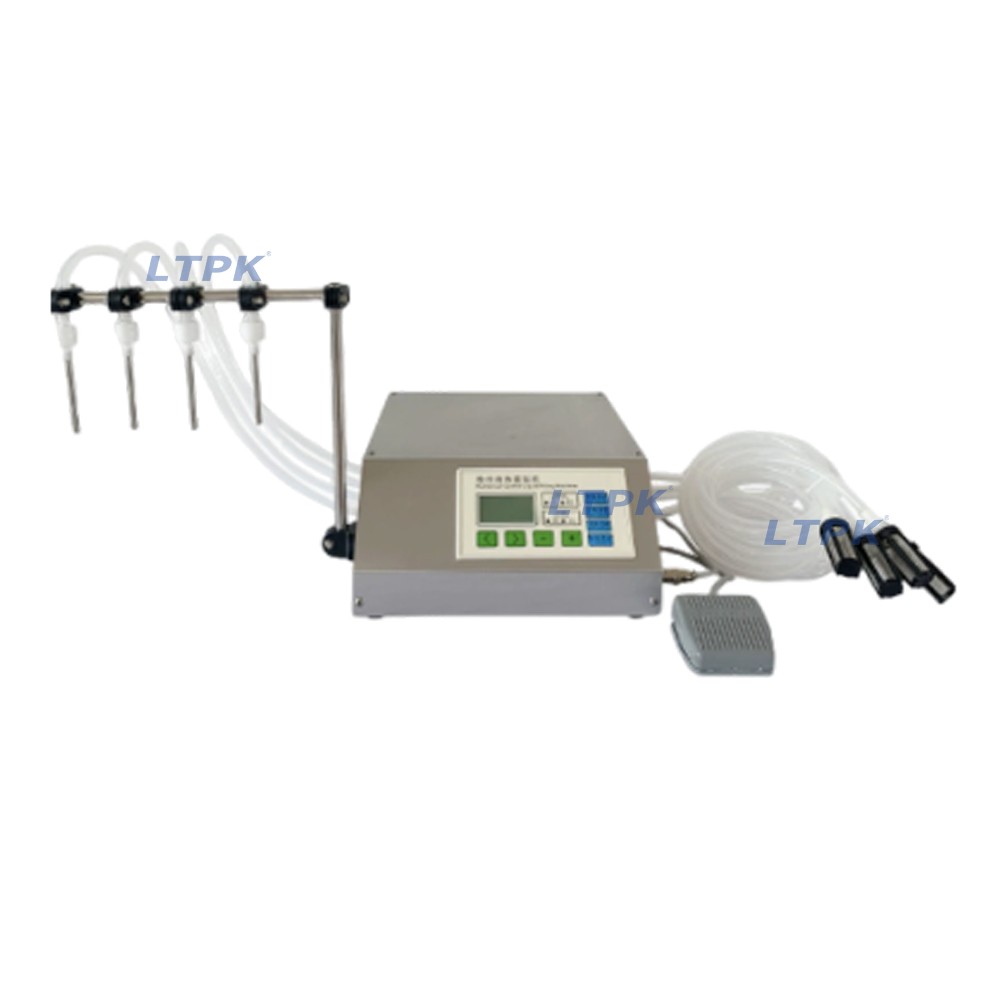

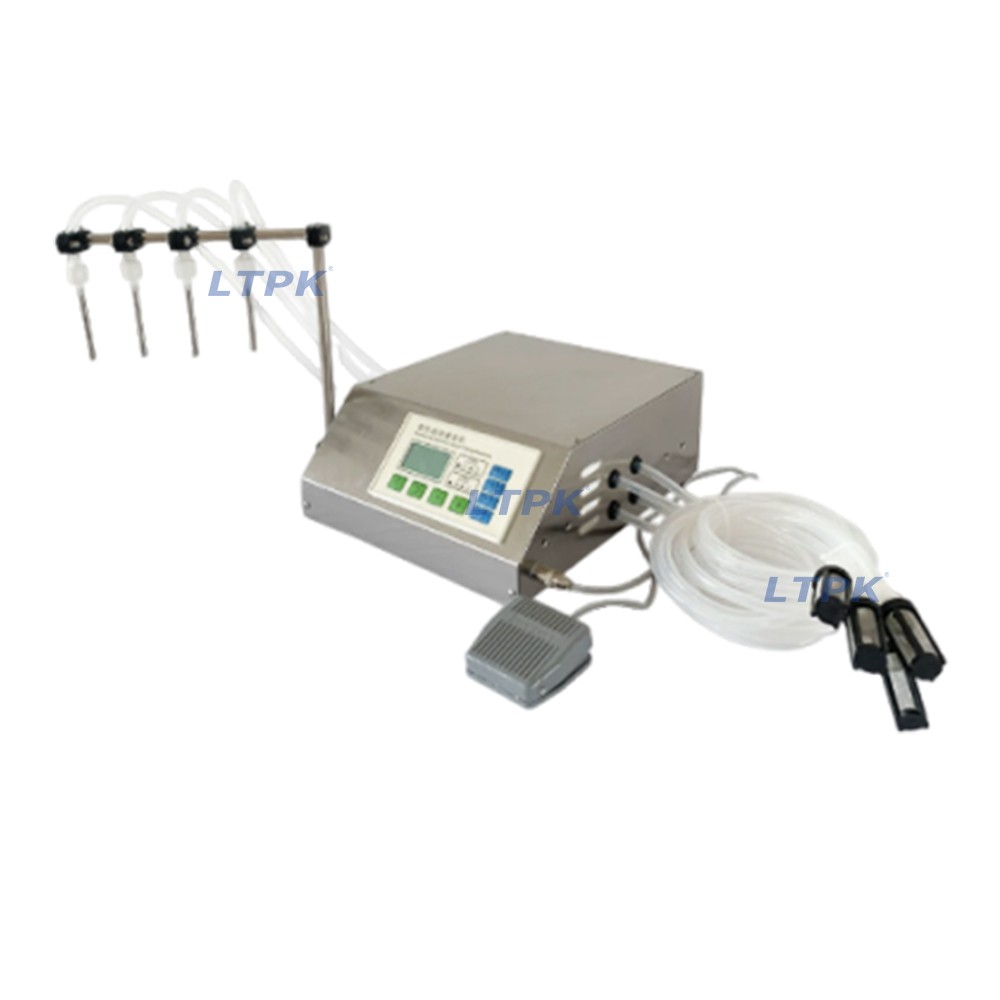

Four head CNC liquid filling machine, foot operated semi-automatic quantitative packaging, multi bottle synchronous filling, suitable for low viscosity liquids, precise, compact and easy to operate
Application:
Suitable for low viscous liquid,such as mineral water,essential oils,juice,toner, beverages, etc. Widely used in industries such as food, chemical, beauty, etc.
Technical parameters：
|
Model |
LT-G11D |
|
Voltage |
220/110V |
|
Power |
120W |
|
Maximum flow rate |
3.2L/min/head |
|
Filling accuracy |
±0.5% |
|
Filling range |
10-9999ml |
|
Filling nozzle |
6/8mm |
|
Liquid temperature |
<55℃ |
|
Max suction distance |
3m |
|
Bracket height |
30cm |
|
Hose size |
6*10mm |
|
Machine size |
30*37*14cm |
|
Machine weight |
7kg |
