Description
Description:

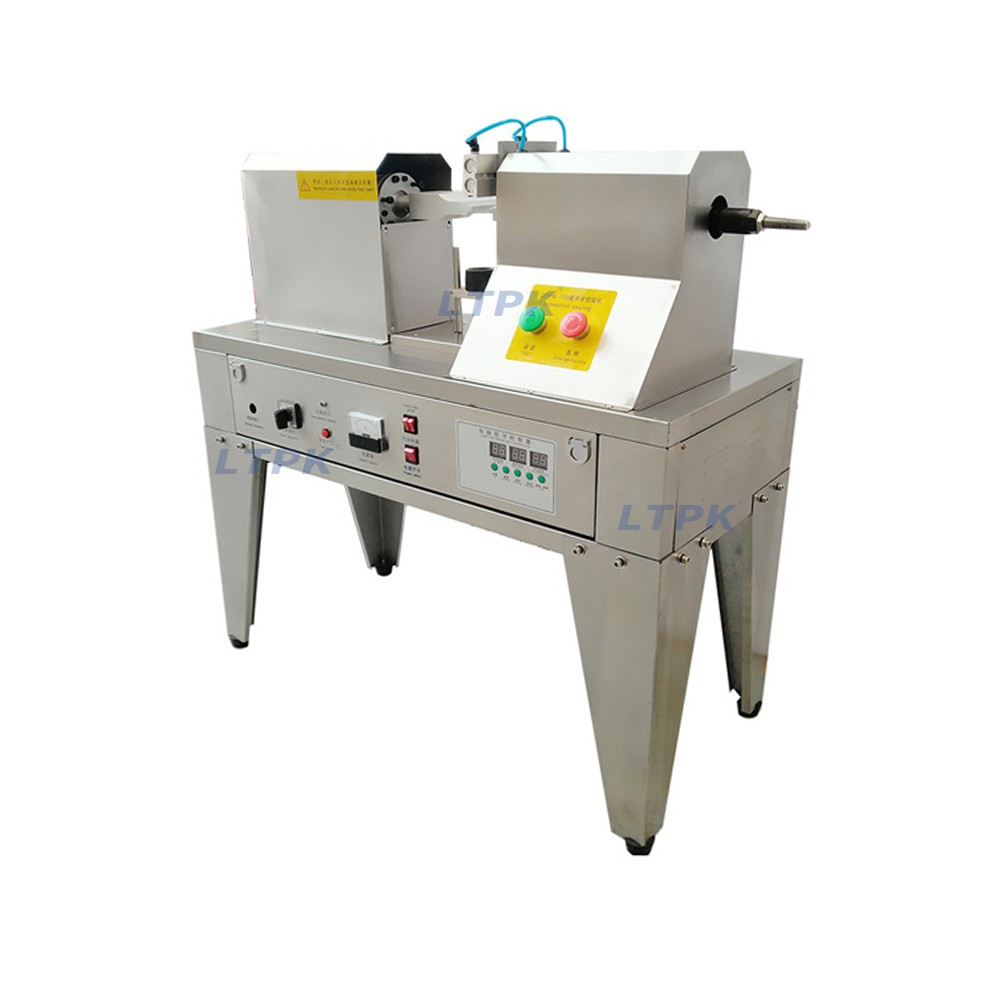

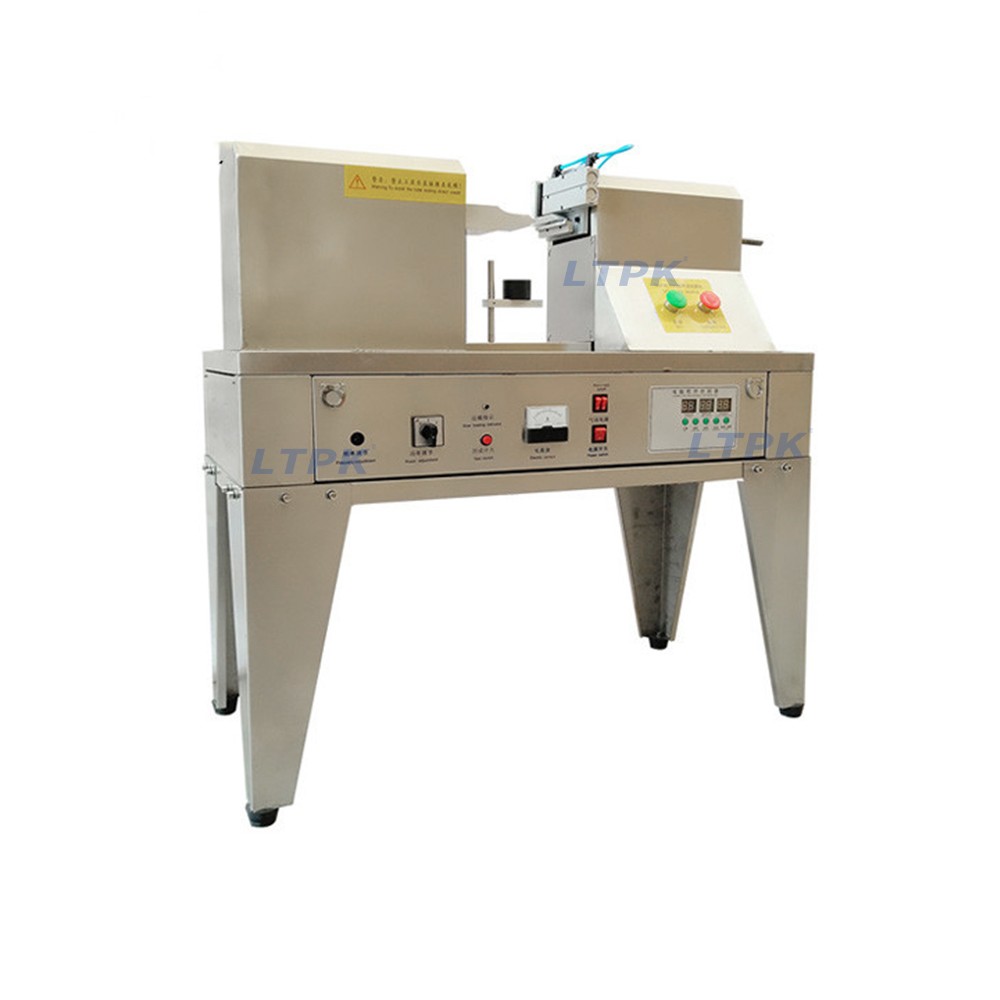

The QDFM-125 ultrasonic hose sealing machine adopts a Taiwanese core circuit and uses ultrasonic principles to seal the tail of hoses and composite pipes. It has good working stability and high efficiency. With independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance
Application:
This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc
Parameter:
|
Model |
|
|
Environmental temperature |
0°C +35°C |
|
Environment humidity |
relative humidity below 85% |
|
Working Height |
0-300mm(Can be Customized) |
|
Air pressure |
0.2-0.6MPa |
|
Maximum output power |
1250W |
|
Tube height |
50~180mm ( Can be Customized ) |
|
Tube diameter |
F5~F50 mm ( Can be Customized ) |
|
Sealing speed |
About 20 pieces/min |
|
Working table |
vertical/horizontal adjustable worktable |
|
Ultrasonic working frequency |
20kHZ |
|
Size |
110*65*53cm |
|
Weight |
100kg |
