Description
Description：

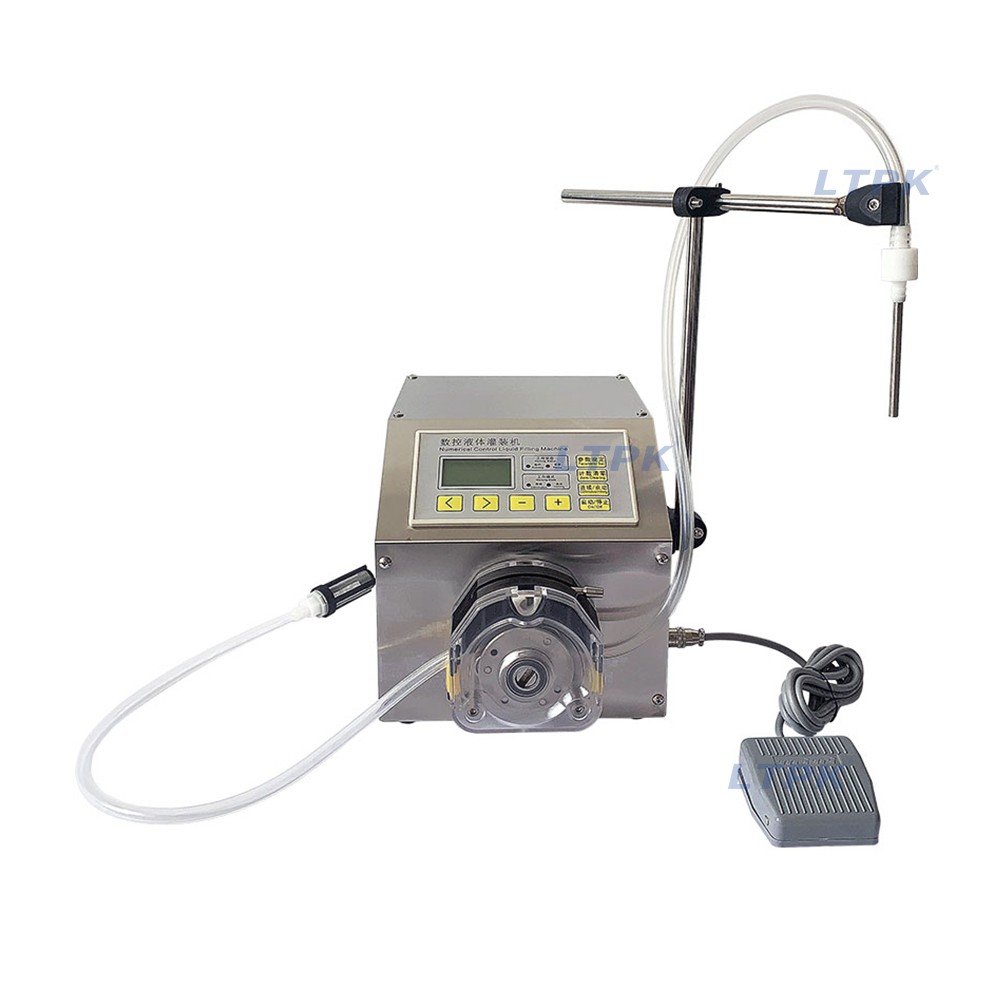

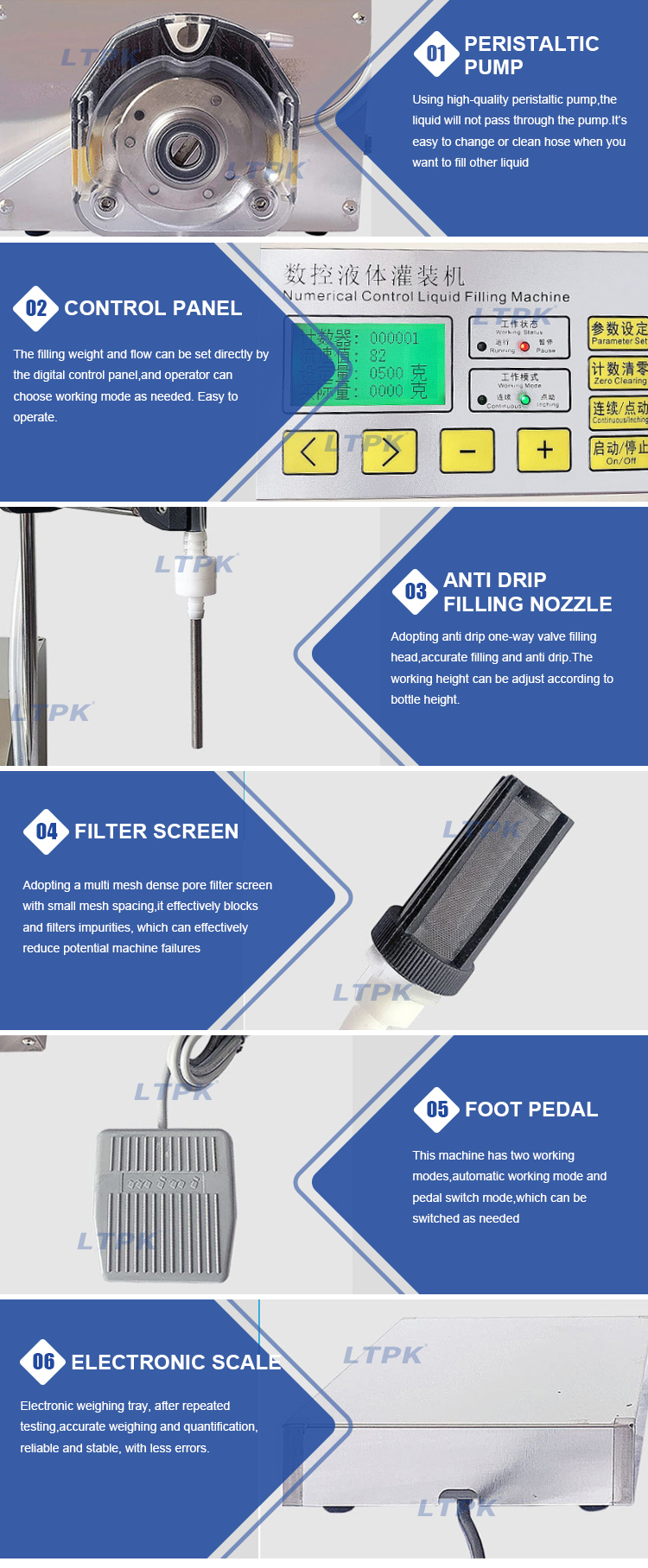

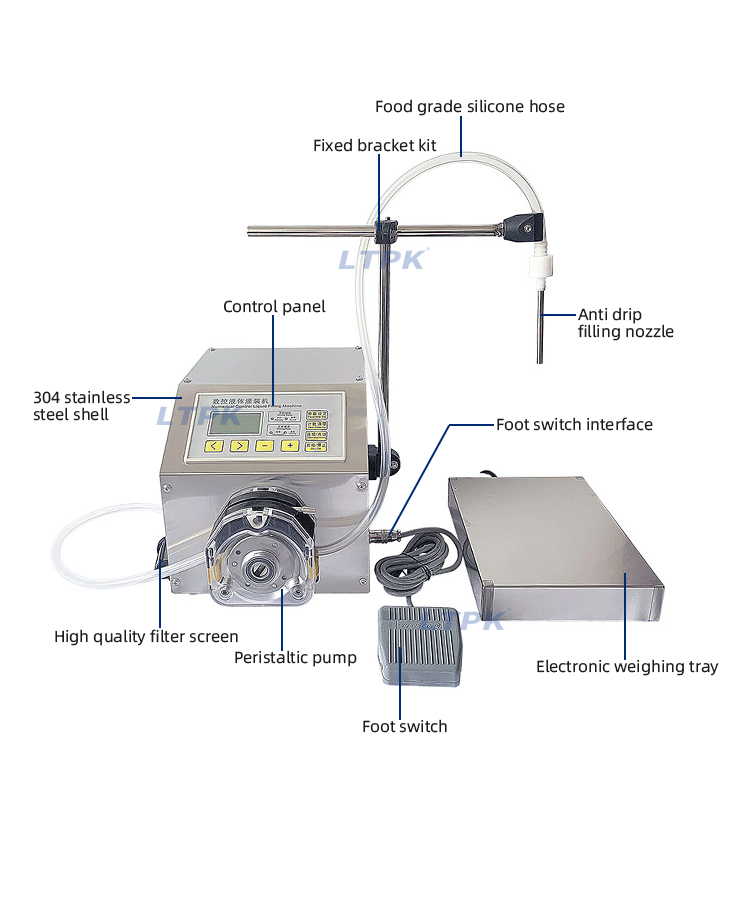

This machine control the micro computer to fill liquid and once the filling volume reach the set amount,the machine will stop to fill liquid.It is designed with the peristaltic pump,the liquid will not pass through the pump during filling,ensure the cleanliness.The weighing function can make it fills liquid more accurately.
Application:
Suitable for low viscous liquid,such as perfume,essential oil, aromatherapy, electronic cigarette oil, color paste, ink,juice,toner, beverages, etc. Widely used in industries such as food, chemical, beauty, etc.
Technical parameters：
|
Model |
LT-G53A |
LT-G53AW |
|
Voltage |
220/110V |
|
|
Power |
100W |
|
|
Maximum flow rate |
6L/min |
|
|
Filling accuracy |
±0.5% |
±1g |
|
Filling range |
1-99999ml |
30-9999g |
|
Filling nozzle |
6/8mm |
|
|
Liquid temperature |
<150℃ |
|
|
Max suction distance |
4m |
|
|
Hose size |
6.4*9.4mm |
|
|
Machine size |
28*22*22cm |
|
|
Pan size |
25*18*5cm |
|
|
Machine weight |
7kg |
|
